Sound Pure's Take
These converters are no longer available new, but they are still a very high-quality unit and this eight channel A/D is priced to go. This unit has the DSD option card pre-installed so it's equipped for DSD recording!
From Other (Miscellanous Used/Vintage/Consign)

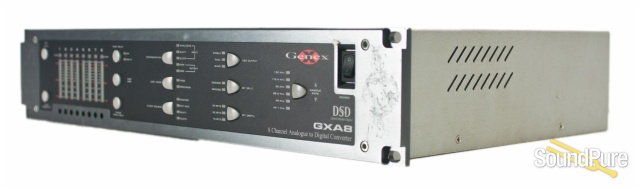

The GXA8 is a professional 8-channel analog to digital audio converter, supporting all standard sample rates from 44.1kHz up to 192kHz at resolutions of 16, 20 or 24 bits. It also supports the Sony DSD format (1-bit, 2.8224MHz sample rate) when married with the included DSD upgrade kit.
All settings are available from the intuitive front panel with no complex menu structures to navigate. The front panel also includes 8 high resolution peak power meters (PPMs), one for each channel.
As standard, the GXA8 is fitted with four AES/EBU digital outputs providing eight channels of digital audio output up to 96kHz and four channels of output for 192kHz.
A/D Performance
- Resolution
- 16, 20 or 24 bits
- Signal/Noise ratio (un-weighted)
- Better than 113.5dB @ 22kHz bandwidth
- Signal/Noise ratio (weighted)
- Better than 117dB @ 22kHz bandwidth
- THD + Noise
- Better than -103dB @ -1dBFS, 1kHz
- Frequency Response (+/- 0.5dB)
- 5hz to 22kHz @ 48kHz Fs, 5hz to 44kHz @ 96kHz Fs, 5hz to 88kHz @ 192kHz Fs
- Power Requirements
- 100-120V, 200-240V. 50/60Hz (switched)
