Gefell CMV 563/M 7S Tube Condenser Microphone  From Gefell

Large-diaphragm tube condenser microphone with detachable capsule - includes PSU, elastic suspension and cable in wood case

Microtech Gefell

$6,470.94

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Contact us for up-to-date delivery estimate.
Payments as low as $147/mo.

Manufacturer's Description from Gefell

This is no clone, this is history continuing. The handmade Gefell CMV 563 / M7S is crafted in Gefell, Germany, where the original CMV 563 tube microphone was born in 1956. There, the small, dedicated team has revived one of history's most enduring designs and bridged the decades-long gap by ensuring today's capsules are interchangeable with yesterday's. The CMV 563 / M7S comes equipped with a cardioid M7 capsule, a design redrawn from the original M7 drawing dated May 26, 1950. The bottom line is, it's all here: the look, the vibe, the tone, the workmanship, the legacy. The Gefell CMV 563 / M7S.

  • History's classic design lives on
  • Meticulous craftsmanship and rigorous testing
  • Gorgeous packaging befitting the classic microphone

History's classic design lives on

While many have dared to copy the CMV 563's classic interchangeable design, the original CMV 563 and its capsules have stayed the standard. The CMV 563 / M7S is a seamless continuation of its rich history, as painstakingly faithful to the original 1956-released microphone as today's reasonably available parts and electrical standards allow. Gefell did choose to use an EF86 tube in place of the EC92, ensuring consistent, low-noise, high-dynamic-range operation in the circuit. The end result is the Gefell CMV 563 at its very best — nothing rebuilt, restored, or uncertain. It's a sure thing. When you want that big, beautiful old-school tube mojo, the CMV 563 / M7S is your ticket.

Use vintage capsules with the CMV 563 / M7S

While the CMV 563 / M7S comes with a brand-new but vintage-design-derived M7 cardioid capsule (the "S" in the name stands for "short"), you have options. The Gefell CMV 563 / M7S seamlessly works with vintage capsules, making this microphone among the most versatile tube microphones available. The CMV 563 / M7S comes with a G/B adapter, allowing you to use the mic with bayonet-type capsules in addition to screw-type capsules.

Meticulous craftsmanship and rigorous testing

When a microphone comes out of the Gefell lab, you know it's been thoroughly vetted — from the initial design process (in this case, a history-proven, 45-year-strong design) to a mic-by-mic examination and three-way quality test to ensure every spec and characteristic is spot on. Individual tubes are specially selected after a tube-by-tube measurement and listening process. Each microphone is finally measured in an anechoic chamber and thoroughly listened to, examined, and evaluated before being made available for sale.

Gorgeous packaging befitting the classic microphone

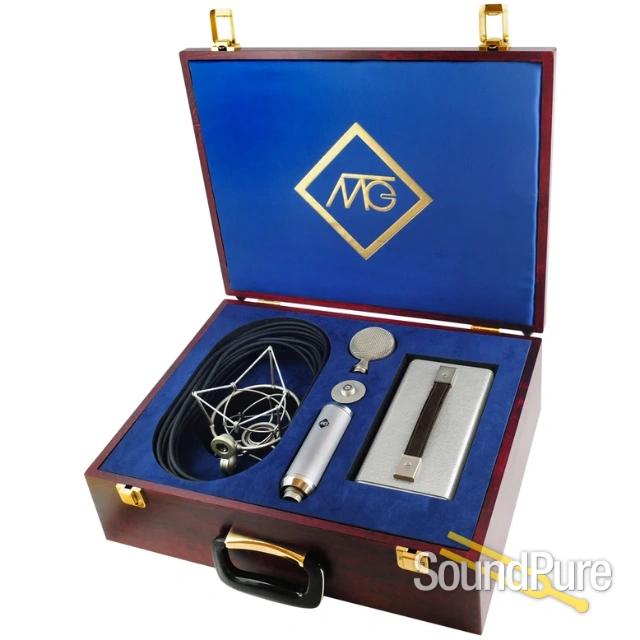

With no corners cut, the Gefell CMV 563 / M7S is presented in a sharp mahogany-colored wooden case with a blue interior, showing off the body of the mic. Included, you get the CMV 563, the M7S capsule, the C 563.1 microphone cable, the EA 92 elastic suspension, and the G/B adapter.

Gefell CMV 563 / M7S features:

  • Tube condenser microphone with EF86 tube
  • Includes M7S cardioid capsule
  • G/B adapter, included, allows operation with vintage M55K, M7, M8, and M9 capsules
  • Comes with N 61 power supply
  • EA 92 elastic suspension and C 563.1 mic cable included
  • Presented in a mahogany-colored wooden box
Microtech Gefell

About Manufacturer

Since its founding by Georg Neumann in 1928, the company has produced high quality, condenser microphones for broadcasting and recording. Many models have used the M7 capsule originally designed by Mr. Neumann in 1949 for the CMV563a. The M7 was responsible for the legendary sound of the Berlin manufactured U47, U48 and M49 microphones. Today, under the technical supervision of Mr. Kuehnast's son, the Company still produces the M7 capsule in exactly the same way Mr. Neumann taught the elder Kuehnast in the 1940's. Hand drilling each hole in the backplate, making the PVC membrane, and even gluing it together by hand is done just as Mr. Neumann specified. The M7 is currently used in the UM 92.1S, UMT800, UMT70S and MT71S Gefell manufactured microphones.

Some of the production equipment which Microtech Gefell GmbH uses for capsule production capitalizes on advanced technology developed by the Soviets before Perestroika. One of the more recently developed microphones, the M300, uses a capsule made of ceramic material molded under high pressure and plated with chromium. This technology was developed in Moscow using advanced computer modeling and simulation techniques. Gefell perfected a capsule manufacturing process unlike any employed in making Western microphones.

The SMS70 series of microphones designed in the early 1970's used a hybrid amplifier with an fet stage. Hybrid technology was not adopted by manufacturers of Western microphones until the late 1980's. Microtech's newest amplifier for the UMT70S series microphones uses surface mount device (SMD) technology.

The company also manufactures a complete line of measurement microphones equivalent to those of Bruel & Kjaer, the Danish manufacturer. These microphones are tested to the highest standards currently used in the West. The manufacturing methods for the nickel membranes and backplate assemblies are highly advanced. Testing each microphone takes a minimum of three months to guarantee performance and stability when it leaves the factory.

Before the Reunification of Germany the company manufactured their studio and broadcast microphones for RFT, a state agency that distributed them to customers in the Eastern Bloc. Most of the microphones went into the broadcast system. Some microphones, like the PM 860, went into public address systems. Virtually every town hall and auditorium in the former Soviet Union has one. About 1985, the Company began developing high powered (30 to 100 Watt) industrial lasers. They still use a laser engraving machine to put the name and serial numbers onto microphones and other finished metal products. During this period, the East German government poured 60 Million Ost Mark into the company allowing them to buy sophisticated equipment and construct a new building.

Specifications

PACKAGE CONTENTS: power supply N 61, connection cable C 563.1, microphone suspension EA 92

LENGTH: 216 mm

DIAMETER: 42 mm

UNIT WEIGHT: 540 g

TRANSDUCER TYPE: Condenser

IMPEDANCE: 200 Ohms

FREQUENCY RANGE: 40 Hz - 16 kHz

SENSITIVITY: -35.4 dBV/Pa (17 mV)

MAX. SPL: 115 dB
