From Focal Professional Studio Monitors

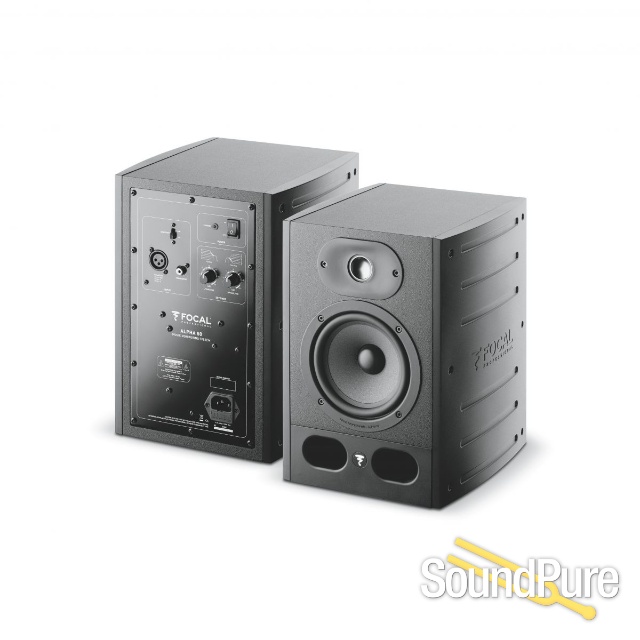

Alpha 50, the most compact of the line, is perfectly adapted for confined spaces.
The ALPHA 50 is composed of a 5” (13cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port and of a 1" (25mm) aluminum inverted dome tweeter. It features a 20W amplifier for the tweeter and a 35W amplifier for the woofer, and has a frequency response of 45Hz to 22kHz (+/- 3dB).
Features:
- Low directivity: keeps the same sound throughout the room
- Damping and rigidity: neutrality, no distortion
- Tonal balance is identical at low and high volumes; low sensitivity to the wall effects
- Connect up to 2 audio sources
- Optimal acoustic integration
- Reduced power consumption
Available May 2014
TECHNICAL SPECIFICATIONS
- Frequency response (+/- 3dB)
- 45Hz - 22kHz
- Power
- 55W (35W+20W)
- Maximum SPL
- 103 dB SPL (peak @ 1 m)
Electronic section
- Inputs
- XLR balanced 10 kOhms
- Connectors
- RCA unbalanced 10kOhms with sensitivity compensation
- LF amplifier stage
- 35W, class AB
- HF amplifier stage
- 20W, class AB
Standby mode
- Standby
- After about 30 minutes without using the monitor
- Activation of the monitor
- By signal detection >3 mV
Power supply
- Mains voltage
- 220-240V (fuse T500mAL/250V) or 100-120V (fuse T1AL/250V)
The voltage can not be modified
- Connection
- IEC inlet and detachable power cord

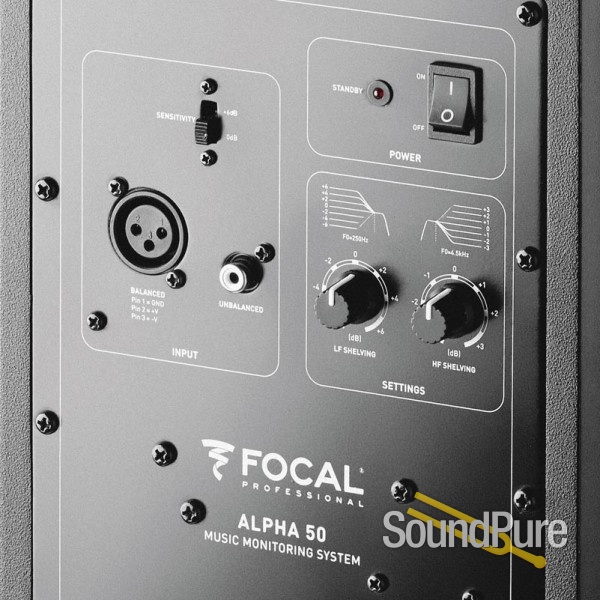

User controls
- Sensitivity
- Adjustable, 0 or +6dB
- LF shelving (0 - 300Hz)
- Adjustable, +/-6dB
- HF shelving (4,5 - 22kHz)
- Adjustable, +/-3dB
- Power ON/OFF
- Power ON/OFF switch on rear panel
- Standby mode power consumption
- <0,5W
- Indicators
- Power ON/OFF LED - Standby LED
Transducers
- Woofer
- 5" (13 cm) drive unit. Polyglass cone
- Tweeter
- 1" (25 mm) drive unit. Aluminium inverted dome
Cabinet
- Construction
- 0.6" (15 mm) MDF
- Finish
- Vinyl and black painting
- Dimensions with 4 rubber pads (HxWxD)
- 12.3x8.7x10.2" (313 x 220 x 258 mm)
- Weight
- 16.1lb (7,3 kg)
