Small but MIGHTY. Control analog audio routings right from your computer screen with the PATCH app.
$1,465.00
Our best price is too low to print,
but we'll email it to you immediately!
How to get a lower price, instantly!
Why do we do this?
Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.
The PATCH LT System was designed with the up & coming producer or budget studio in mind. Using the same Flock Audio Patented Matrix Technology as our Flagship Model "PATCH", LT allows any producer or studio to add the worlds most advanced digitally controlled, analog routing system into their studio or post production suite without compromise.
Features
♦ 32 Point Connections (16 Inputs / 16 Outputs)
♦ DB-25/D-SUB Tascam Standard Pinout Format Connectors
♦ 16 Independent Channels of 48V Phantom Power
♦ Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output
♦ PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
♦ Create, Store & Recall Routings in Seconds
♦ Create Complex Multing Combinations w/ No Impedance Issues
♦ No AD/DA Conversion, 100% Transparent Analog Signal Path
♦ Patented Flock Audio Matrix Technology (Same as PATCH)
♦ Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)

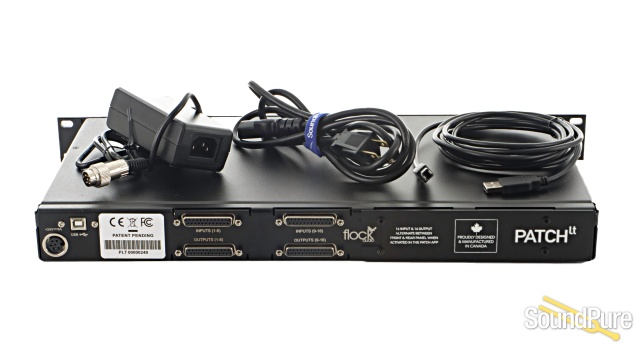

In the Box:
PATCH - (1U Hardware Rack Unit) Dimensions: 19" (W) x 1.75" (H) x 8" (D)
USB 2.0 - (10 ft) Host Control Cable (USB-A to USB-B)
Power Supply - 24VDC (110V or 220V) Power Supply
Power IEC Cable - (Shipped with IEC Plug based upon customer region)
6 Step Quick Start Setup Guide
Hardware Index Setup Template
Details
Computer Connectivity: USB 2.0
Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
Software: PATCH APP v2.0 (Online Download) - *iOS iPad Coming Soon*
Chassis: 1U Rackmount (8" Deep)
Patch Point Connections: 32 Total - 16 Inputs / 16 Outputs (Expandable with all PATCH Models)
48v Phantom Power: 16 Channels Independently Controllable

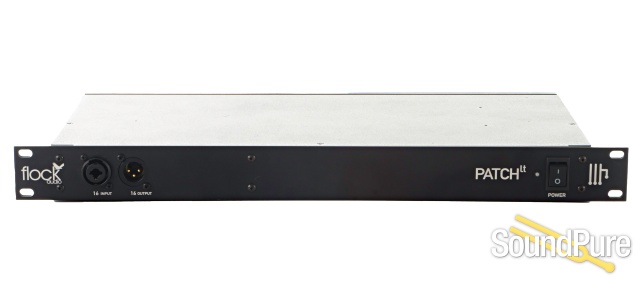

Front Connectors: 1x Combo TRS/XLR Inputs & 1x XLR Outputs
D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
Routing System: Patended Flock Audio Matrix Technology
Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
Power Supply: External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector
Warranty: 1 Year Total System + Included Cables Manufacturers Warranty
Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
