Sound Pure's Take
Condition Used, Excellent
Using the Fender '65 Deluxe Reverb Reissue as a platform, George Alessandro rebuilds the guts using high quality components.
From Fender
ALESSANDRO HAND-WIRING SERVICES
Hand-Wiring Service for Reissue Fenders and Marshall Amplifiers
Both Fender and Marshall have re-issued some of their classic designs, but these reissue amps typically come stock with a printed circuit board, which tends to compromise both tone and reliability, and makes servicing them difficult, to say the least.
Due to popular demand, George Alessandro offers a rebuilding service for some of these models, in which he replaces the printed circuit boards with hand-wiring, and replaces the low-grade components with specially chosen components designed to enhance the amps tone and functionality.
George personally does all work on these types of projects, including:
Removing the printed circuit board, pots, and jacks
Build a custom board and handwire the circuit, following the original vintage specifications
All new pots and components are used in the re-build
The factory transformers, chassis, and certain other components are re-utilized
Amps comes stock with Fender Groove Tubes
The new circuit board utilized in these rebuilds is a custom, proprietary Alessandro epoxy/glass laminate military specification board. Components include:
All wiring is done using audio-grade silver eutectic solder
Select orange drop-style capacitors
Alessandro’s proprietary high-end filter and bypass capacitors (made in Germany)
Silver mica caps in the audio path
CTS pots
PTFE/Teflon-coated silver-plated wire (the same as used in Alessandro amps)
Switchcraft military spec input jacks
Carbon resistors in audio path for proper tone
Film resistors in power supply for quiet, reliable operation
Upgraded speakers are an available option
- Model
- 65' Deluxe Reverb Reissue (George Alessandro Handwired)

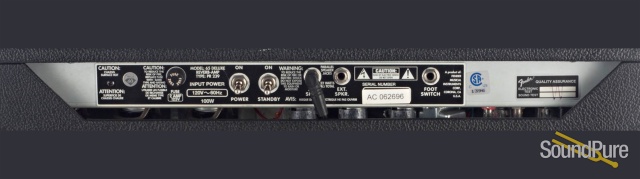

- Serial
- AC062696
- Voltage
- 120V
- Controls

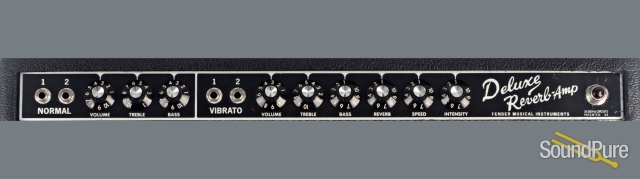

- Normal Channel: Volume, Treble, Bass; Vibrato Channel: Volume, Treble, Bass, Reverb, Vibrato Speed, Vibrato Intensity
- Inputs
- Four - (1/4" Two Normal, Two Vibrato)
- Wattage
- 22 Watts
- Channels
- Two - (Normal and Vibrato)
- Speaker Jack
- Two 1/4" Parallel (Internal and External)
- Cabinet Material
- 7-Ply 5/8" Birch Plywood
- Grille Cloth
- Silver
- Front Panel
- Black
- Amplifier Covering
- Black Textured Vinyl
- Amplifier Jewel
- Red Jewel
- Handle
- Molded Plastic Strap with Nickel-Plated Caps
- Speakers

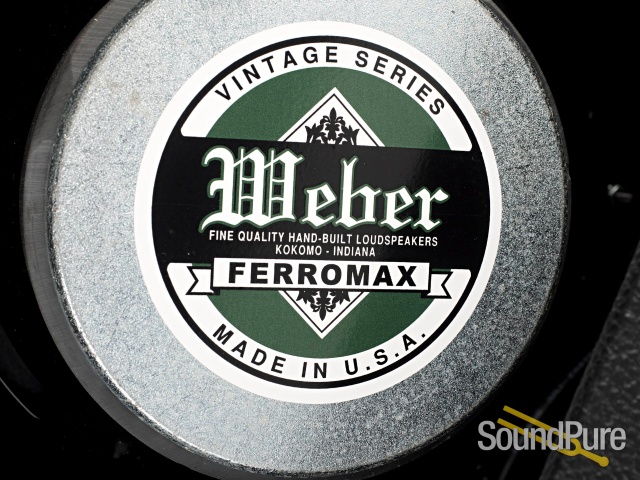

- One - 12" Weber Ferromax (12F150)
- Total Impedance
- 8 ohms
- Preamp Tubes
- 4 x 12AX7, 2 x 12AT7
- Rectifier
- 1 x 5AR4
- Power Tubes
- 2 x 6V6
- Height
- 17.5"
- Width
- 24.5"
- Depth
- 9.5"
- Weight
- 42 lbs
- Cover

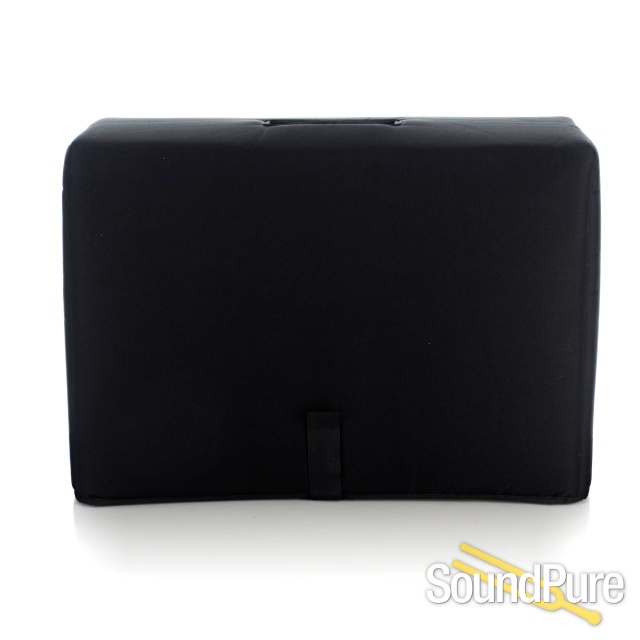

- Tuki Cover Included
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: take it home, commit only when it's right. Program details →
