From Ex Machina

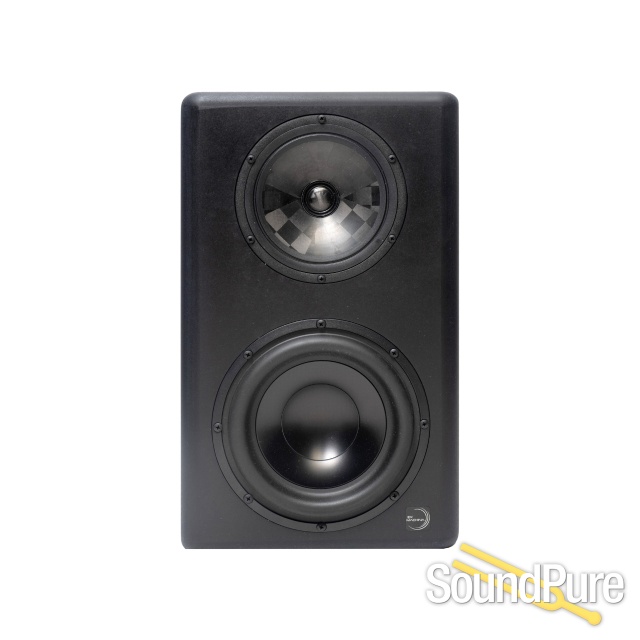

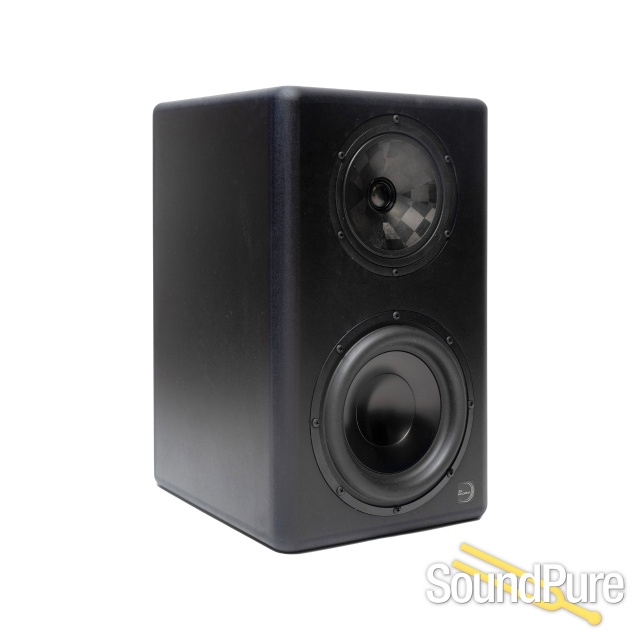

Pulsar is our bread and butter studio monitor; the most versatile performer in our range. Like all our speakers, its singular purpose is to provide you with the most accurate, effortless, reliable insight possible.
Custom SEAS Extreme Series Subwoofer
Low distortion, long stroke design and rigid aluminum diaphragms provide immense bass precision and reach.
Coaxial Midrange/Tweeter
Bleeding edge Composite Sound Metamodal TeXtreme diaphragms: ultralight, ultra-stiff carbon fabrics with optimized fiber geometries to actively control and suppress resonances.
Mathematically optimal midrange waveguide shape, underhung surround, and optimized point source acoustic center alignment provides superb off-axis response.
State of the art, super low distortion neodymium motor design.
Electronics
Flagship AKM Velvet Sound AK4493/AK5572 based conversion leaves no sonic footprint.
Hypex Ncore amplifiers provide gobs of squeaky clean, efficient power.
5th gen SHARC+ DSP hardware can crunch many, many numbers at once.
Sealed Valchromat Cabinets
Stiff, dense and well damped, with none of the chuffing or group delay of ported designs.
DSP
Proprietary, in house calibration code completely flattens frequency, phase and impulse response.
- Linear Frequency Response
- +/- 1db 35hz – 30khz (measured at 30cm cal position)
- Low Frequency Cutoff
- -6db at 28hz
- Linear Phase Response
- +/- 15° 20hz – 30khz
- Maximum Continuous SPL @ 1m
- 110db, 104db @50hz
- THD+N (94db @ cal position)
- < .5% Power Average 100hz – 30khz
- Coverage Angle
- 90° conical
DRIVER COMPLEMENT
176mm (7”) midrange, 25mm (1”) tweeter Custom SEAS/Ex Machina/Composite Sound Metamodal TX™ mid/high coaxial
221mm (9”) Custom Aluminum SEAS Extreme Series Architecture Subwoofer
CROSSOVERS
200hz Sub/Mid, digital 8th order, phase corrected
2khz Mid/Tweet, digital 8th order, phase corrected
AMPLIFIER COMPLEMENT
- Subwoofer
- Hypex NC252MP – 250W RMS
- Midrange
- Hypex NC252MP – 100W RMS, voltage limited
- Tweeter
- Hypex NC100HF – 50W RMS, voltage limited
DSP/CONVERSION
- A/D Chipsets
- AKM AK5572EN
- D/A Chipsets
- AKM AK4493EQ
- DSP
- 5th Gen SHARC+ AD21565
INPUT SENSITIVITY
2vrms to full scale
MASS & DIMENSIONS
483mm H x 289mm W x 345mm D (19″ x 11.3″ x 13.6″)
23kg (51lbs)
