From Eventide

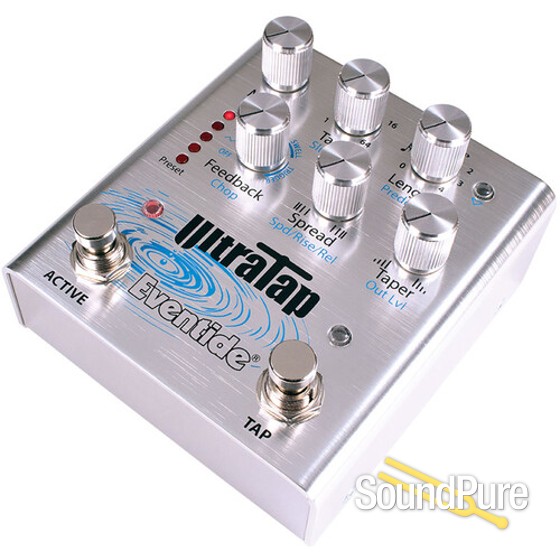

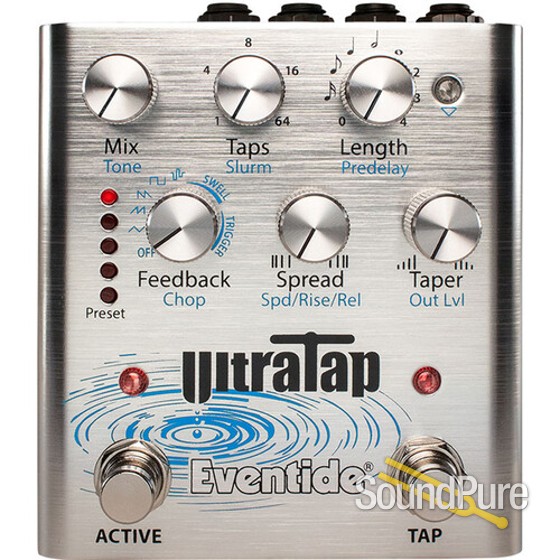

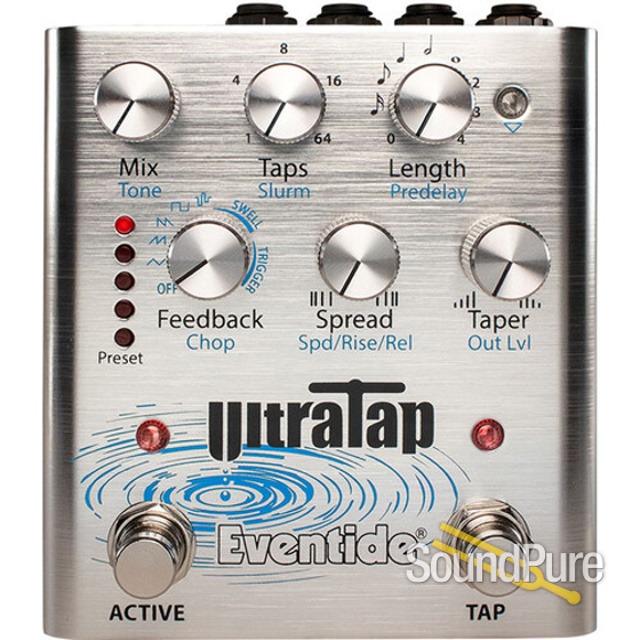

UltraTap is a unique multi-tap effect pedal capable of rhythmic delays, gated reverbs, volume swells and modulated effects. Select from one delay to up to sixty-four delay taps and everything in between, this delay does it all. UltraTap features mono or stereo operation, and instrument or line level ins and outs. UltraTap features MIDI control, five onboard presets, and 127 presets with the Eventide Device Manager for Mac or PC via USB.
Features
- Control the stereo image of taps to alternate between hard-panned and mono.
- Five presets loaded at your feet with dozens more available with Eventide Device Manager (EDM) software
- Dual-action Active Footswitch is latching or momentary.
- Onboard LFOs and envelopes to chop the sound source into stuttered rhythms.
- Rear panel Guitar/Line Level switch for matching levels of guitars, synths, FX loops, or DAW interface
- Map any combination of parameters to an Expression Pedal.
- Use a single Aux switch to Tap Tempo or a triple Aux switch for easy preset changing (up/down/load).
- MIDI capability over TRS (use with a MIDI to TRS cable or converter box) or USB
- Multiple Bypass options: Buffered, Relay, DSP+FX, or Kill dry
- Catch-up mode helps dial in your sound when toggling between presets/parameters.
- Eventide Device Manager PC or Mac application for software updates, system settings, and creating/saving presets
-

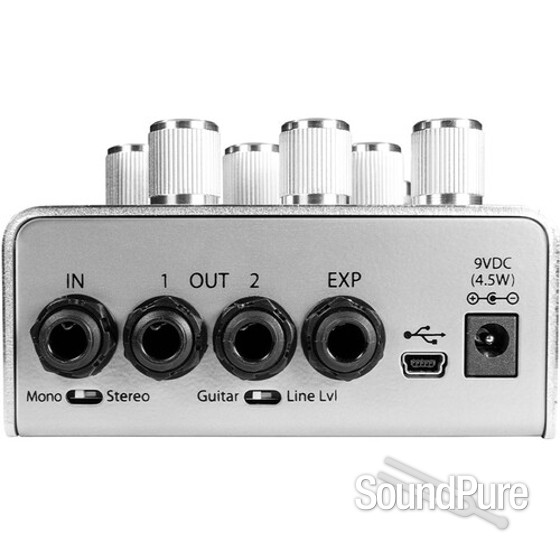

Connectors
-
Input
-
1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
-
Out 1
-
1/4″ TS Mono / Mono Output
-
Out 2
-
1/4″ TS Mono / Stereo Output
-
EXP
-
1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
-
Mono/Stereo Switch
-
Sets Input to Mono (Tip) or Stereo (Tip + Ring)
-
Guitar/Line Level Switch
-
Optimizes internal gain structure
-
Mini USB
-
Software updates, MIDI I/O
-
DC Input Jack
-
5.5mm / 2.1mm plug / Center Negative (-)
-
Analogue I/O
-
Input Impedance
-
700k ohms Mono, 990k ohms Stereo
-
Max Input, Guitar
-
+8dBu
-
Max Input, Line
-
+14dBu
-
Output Impedance
-
220 ohms
-
Recommended Load Impedance
-
10k ohms
-
Specifications
-
Dimensions (Product)
-
4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
-
Weight (Product)
-
1.06 lb / 0.48 kg
-
Dimensions (Package)
-
7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm
-
Weight (Package)
-
1.68 lb / .77 kg
