$279.00

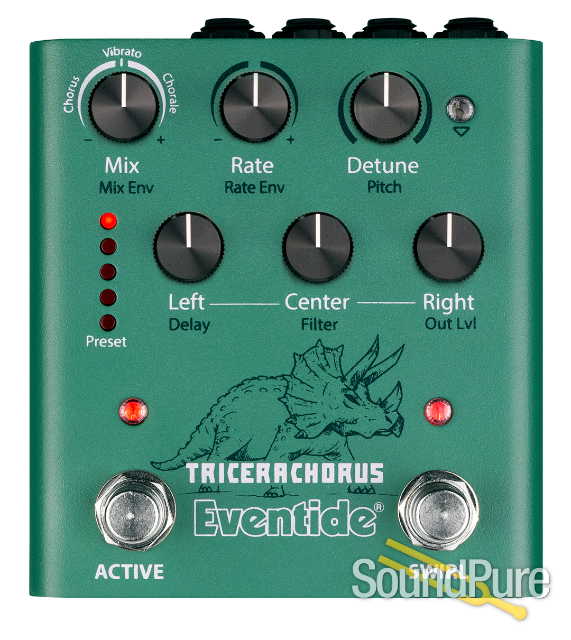

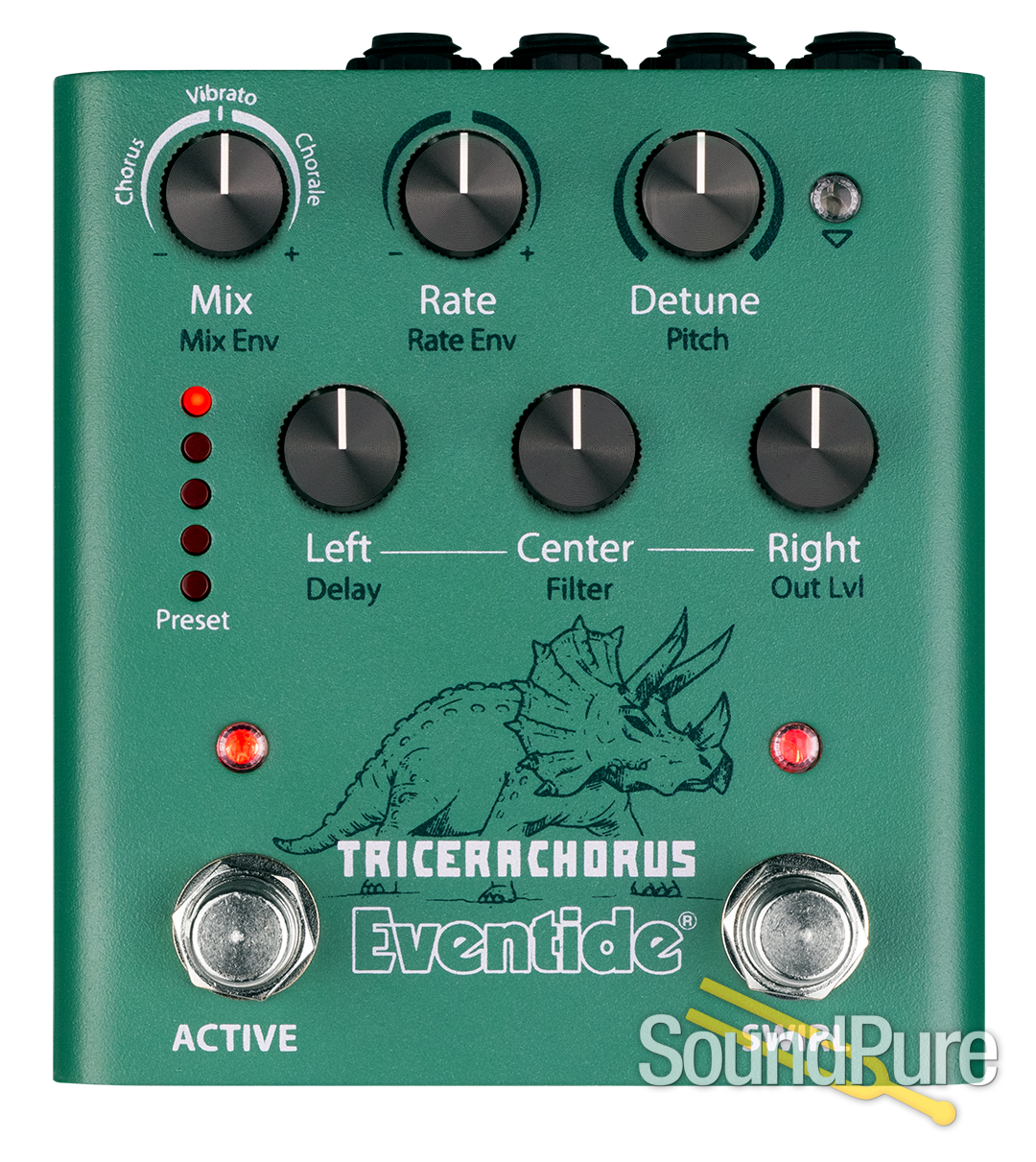

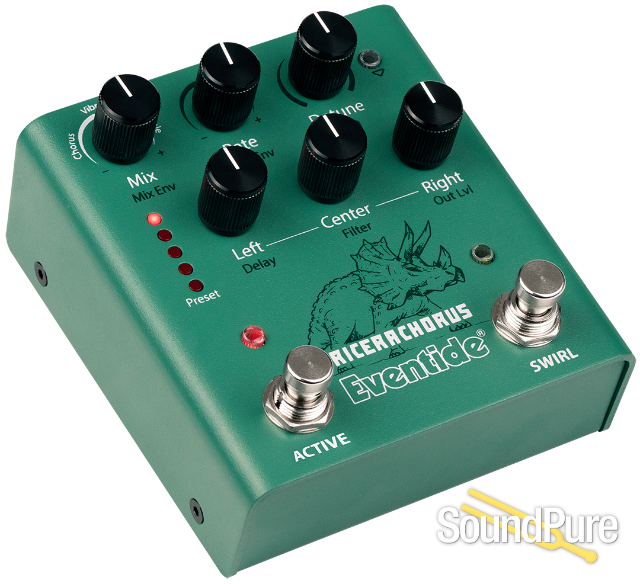

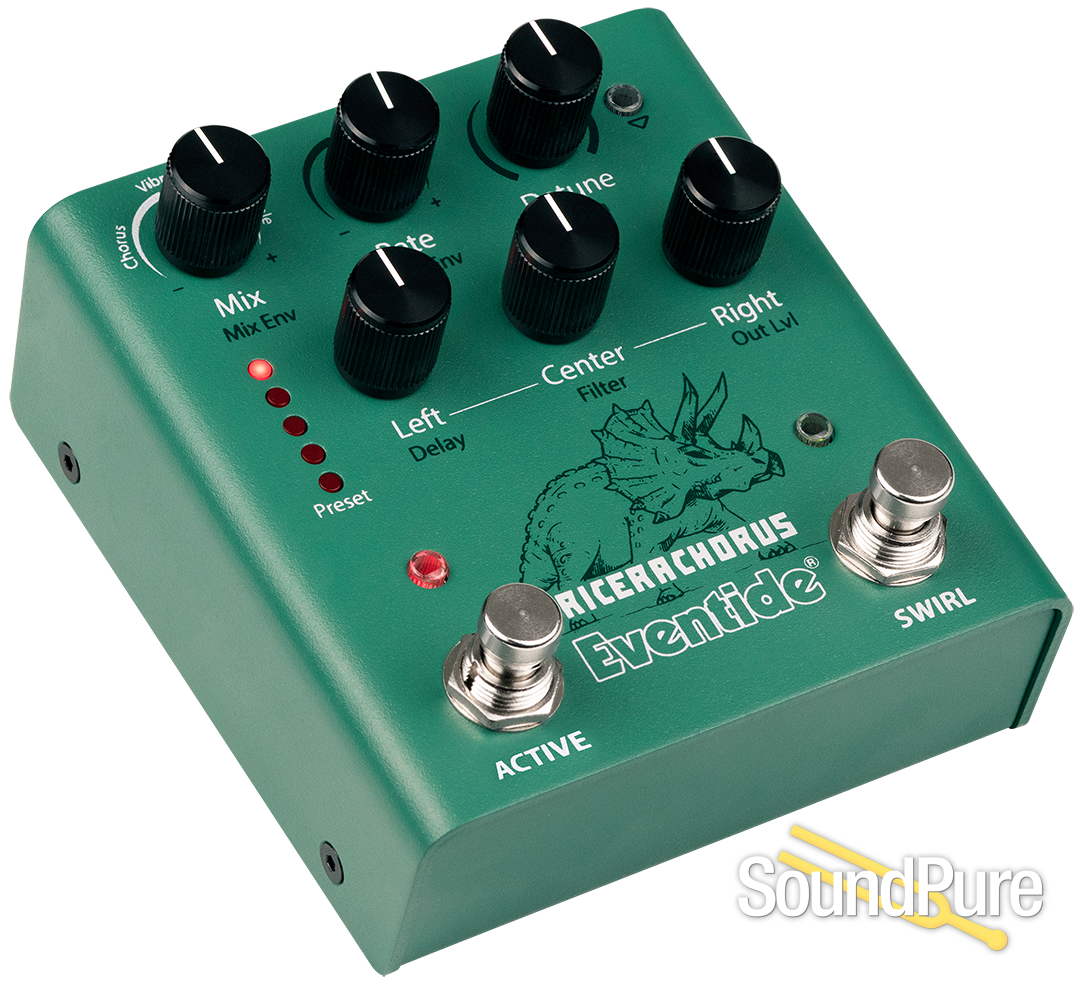

Inspired by the classic Tri-Stereo Chorus and stompbox choruses of the 1970s and early 1980s, the TriceraChorus pedal pairs rich Bucket Brigade-style chorusing with Eventide’s legendary MicroPitch detuning. TriceraChorus features three chorus voices and three unique chorus effects which can be used to create a wide stereo spread with pulsing waves of modulation. The innovative “Swirl” footswitch adds psychedelic flanging, phasing, and Univibe-style tones.
Features
Three independent chorus voices: Left, Center and Right
Three chorus types: Chorus, Vibrato, Chorale for a wide array of tonal possibilities
Dedicated “Swirl” footswitch capable of generating psychedelic flanging, phasing and Univibe-style tones
Five presets loaded at your feet with dozens more available with Eventide Device Manager (EDM) software
Dual-action Active Footswitch is latching or momentary.
Rear panel Guitar/Line Level switch for matching levels with guitar, synths, FX loop or DAW interface
Map any combination of parameters to an expression pedal.
Use a single aux switch to tap Rate or a triple aux switch for easy preset changing (up/down/load).
MIDI capability over TRS (with MIDI to TRS cable or converter box) or USB (with MIDI-host controllers)
Multiple Bypass options: Buffered, Relay, DSP+FX or Kill dry
Catch-up mode helps dial in your sound when toggling between presets/parameters.
Eventide Device Manager PC or Mac application for software updates, system settings and creating/saving presets

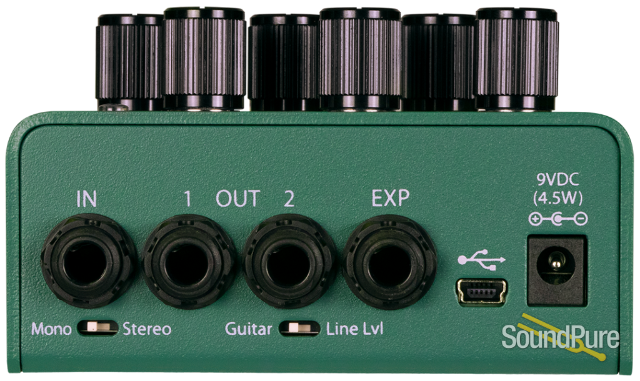

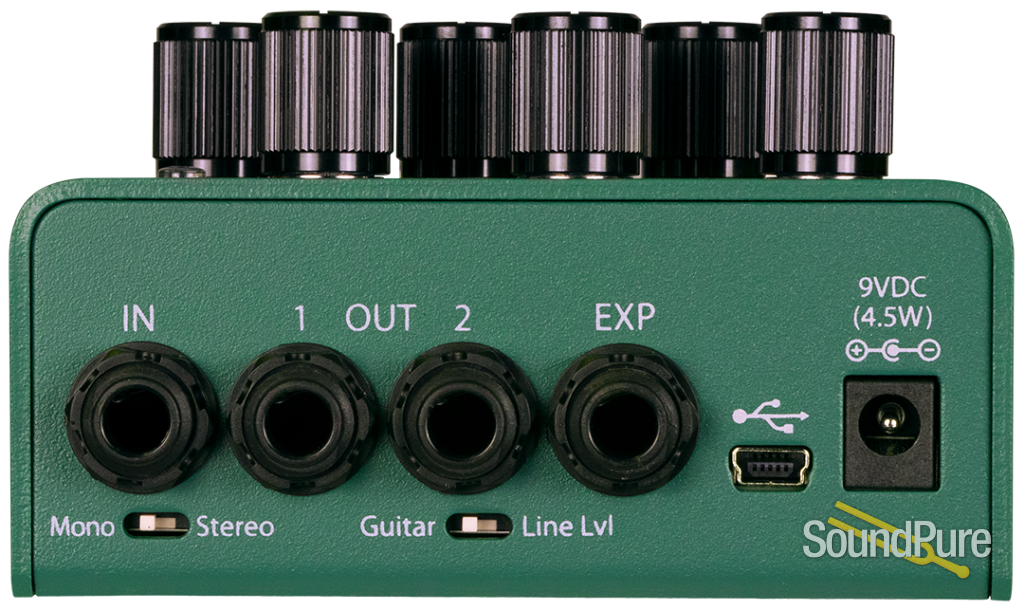

Connectors
Input
1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
Out 1
1/4″ TS Mono / Mono Output
Out 2
1/4″ TS Mono / Stereo Output
EXP
1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch
Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch
Optimizes internal gain structure
Mini USB
Software updates, MIDI I/O
DC Input Jack
5.5mm / 2.1mm plug / Center Negative (-)
Analogue I/O
Input Impedance
700k ohms Mono, 990k ohms Stereo
Max Input, Guitar
+8dBu
Max Input, Line
+14dBu
Output Impedance
220 ohms
Recommended Load Impedance
10k ohms
Specifications
Dimensions (Product)
4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
Weight (Product)
1.06 lb / 0.48 kg
Dimensions (Package)
7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm
Weight (Package)
1.68 lb / .77 kg
