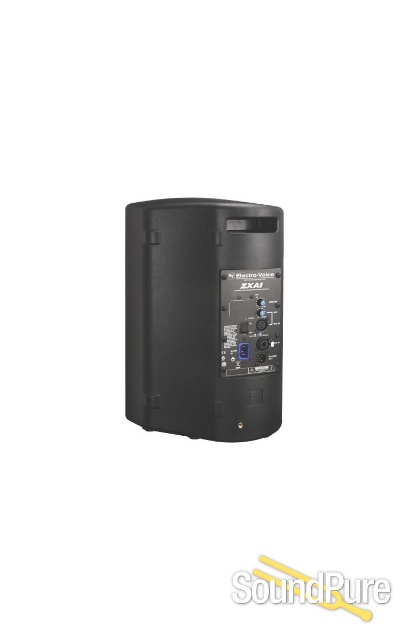

From Electro-Voice
Input Connections: XLR and TRS Combo; XLR with Independent Gain
Power Requirement: 120V: 95V - 132V, 50 - 60 Hz, 0.6A; 230V:190V - 264V, 50 - 60 Hz, 0.4A
Frequency Response (-3 dB): 60 Hz - 20 kHz Hz Full Range Mode
Frequency Response (-10 dB): 48 Hz - 20 kHz Hz Full Range Mode
Recommended High-Pass Frequency: 100 Hz User Selectable
Max. SPL/1m (calc): 123 dB
LF Transducer: EV8L, 203mm (8 in) Driver
HF Transducer: DH2005, 25mm (1 in) Exit Compression Driver
Crossover Frequency: 1800 Hz
Enclosure Material: High Impact Polystyrene
Grill: Polyester Powder Coated, 18GA Galvanized Steel
Height: 457 mm (17.99")
Width: 282 mm (11.1")
Depth: 264 mm (10.39")
Weight Net: 8.62 kg (19 lbs)
Shipping Weight: 10.3 kg (22.7 lbs)
- Integrated 800 watt power amplifier
- Biamplified design with transducer protection
- EV8L 8” high-output LF transducer
- DH2005 1” exit true compression driver
- 90° x 50° coverage pattern
- Rotatable horn design
- 123 dB maximum SPL
- Selectable high-pass filter for use with subwoofers
- Line and microphone inputs
- Integral monitor angle on enclosure
- Built-in pole mount
- Lightweight (< 20 lbs) with integral handle for easy carrying
