From Earthworks
Vocals Come Alive Like Never Before.

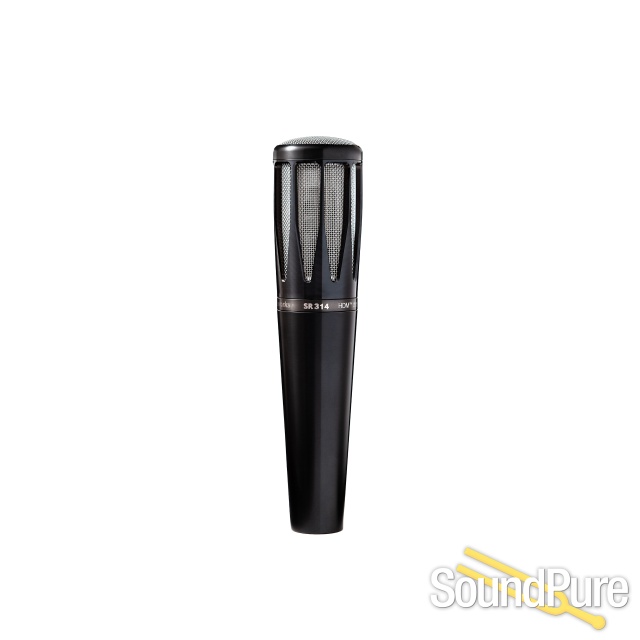

The Earthworks SR314 is designed from the ground up to meet both the expectations and desires of a modern live performance environment.ilt to deliver repeatable results no matter what the environment.
The Sound of the SR314
Your true artistic voice, fully realized. Extended flat frequency response and a focus on time coherence set the Earthworks SR314 apart.
Simple, Easy, Brilliant
Capable of handling sound pressure levels of up to 145dB without distortion, the SR314 can handle nearly any vocalist.
| FREQUENCY RESPONSE | 20Hz – 30kHz |
|---|---|
| POLAR PATTERN | Cardioid |
| SENSITIVITY | 10mV/Pa (-40dBV/Pa) |
| POWER REQUIREMENTS | 24-48V Phantom, 10mA |
| SIGNAL TO NOISE RATIO | 79dB A-weighted |
| PEAK ACOUSTIC INPUT | 145dB SPL |
| OUTPUT | XLR (pin 2+) |
| OUTPUT IMPEDANCE | 65Ω balanced (between pins 2 & 3) |
| MIN OUTPUT LOAD | 600Ω between pins 2 & 3 |
| SELF NOISE | 15dB SPL equivalent (A weighted) |
| DIMENSIONS L x D | 181.1mm x 40.6mm (7.13 x 1.60 inches) |
| WEIGHT | 1.5 lb. (.68kg) |
Free 3-Year Warranty
Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.
Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →
Returns
Not eligible for Try Before You Buy or the 48-hour approval period. Standard return policy applies — see Terms & Conditions, Section 18 for details.
