Distinctive design. Sonic accuracy. Legendary performance. Explore the Earthworks SR314.
$699.00

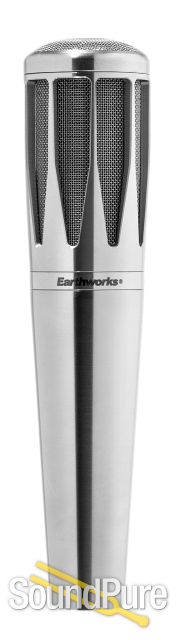

The Earthworks SR314 is designed from the ground up to meet both the expectations and desires of a modern live performance environment.
Stainless steel is expertly sculpted through precision machining yielding an instrument that is beautiful to look at, balanced in the hand, and sensibly engineered for life on the road.
Protected within its steel exoskeleton is a studio quality small diaphragm cardioid condenser capsule coupled with a Class A amplifier circuit that leverages Earthworks patented and proprietary technologies to deliver one of the fastest mics on the planet.
An extended flat frequency response and a focus on time coherence (fast clean impulse response) sets the Earthworks SR314 apart. By systematically eliminating the many layers of distortion and noise normally added by each acoustic and electronic component, the Earthworks SR314 doesn’t sound like a traditional microphone – it pulls back the veil to reveal the true voice of the artist.
The SR314 democratizes exceptional live music experiences, making them accessible to everyone. Quicker soundchecks and better monitor and in-ear mixes let artists focus on what matters most – the music.
Engineers are unencumbered from the necessities of corrective EQ, heavy compression, de-essing and constant vigilance against feedback.
Audiences reap the benefits of vocals that sit comfortably and easily in the mix, with every detail and nuance bridging the gap that so often separates the audio experience of live music from recordings.
A tight cardioid polar pattern with a consistent frequency response all the way out to 90 degrees means the SR314 delivers the same quality of sound even when the singer moves off-center.
Maximum rejection of sound sources at 180 degrees imbues the SR314 with levels of feedback immunity and isolation from unwanted sound sources not found in other microphones.
Earthworks was formed by David Blackmer, the inventor of dbx, to realize his vision of upgrading the entire audio chain to a new standard of sonic realism. David's goal of creating high definition tools with which to capture the sound and experience of "being there" is based upon a strong evidence that there is more to human hearing than the range of frequencies which can be heard as tones. We are convinced that audio equipment with extended frequency response and faster, cleaner time domain performance will yield more life-like results. Traditional audio methadology appears to be based on working around the limitations, imperfections, and personality quirks of the equipment, and calling the ones you like "assets". WE believe that any part of the audio chain can be improved to the point where the standard is so high that any product meeting it will be indistinguishable from any other product meeting the same standard, and that an audio system built to such standard can achieve sonic reality. This standard, for electronic equipment, is met by our Zero Distortion Technology. We support the concept of recording acoustic events accurately enough to capture the sound as it happened in the room. This approah allows you to make sonic coloration and texture choices later, when you can consider them carefully and still have recourse. Life-like accuracy is the best starting point for whatever unique coloration you may wish to add.
Frequency Response: 20Hz – 30kHz
Polar Pattern: Cardioid
Sensitivity: 10mV/Pa (-40dBV/Pa)
Power Requirements: 24-48V Phantom, 10mA
Max Acoustic Input: 145dB SPL
Signal-to-Noise Ratio: 79dB A-weighted
Output: XLR (pin 2+)
Output Impedance:65Ω balanced (between pins 2 & 3)
Min Output Load: 600Ω between pins 2 & 3
Noise: 15dB SPL equivalent (A weighted)
Dimensions (L x D): 181.1mm x 40.6mm (7.13 x 1.60 inches)
Weight: 1.5 lb. (.68kg)
