DW Fearn VT-I/F From DW Fearn

Dual-Channel Vacuum Tube DI

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manufacturer's Description from DW Fearn

The VT-I/F is a dual-channel, all-triode vacuum tube DI (“direct box”) for recording electric or electronic instruments. The inputs are designed to provide the proper load impedance for all instruments that have a 1/4-inch phone jack output. Tube circuitry provides the very high impedance necessary to capture all the details of these instruments.

The outputs of the VT-I/F are mic level (150 ohm source impedance at a nominal -30dBV). The VT-I/F is designed to operate into a high-quality microphone preamplifier like our VT-1 and VT-2 Vacuum Tube Microphone Preamplifiers

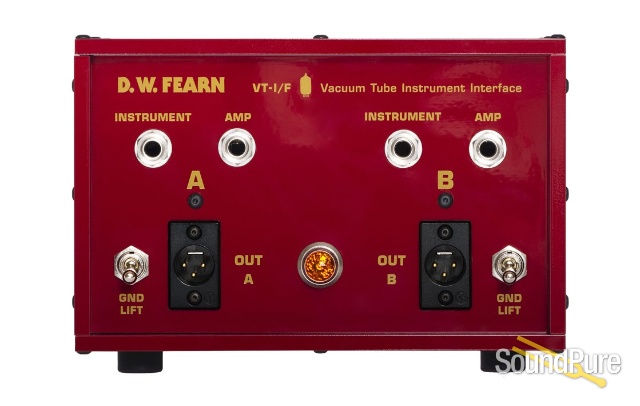

The operation is very simple: plug the instrument into the 1/4” front panel jack and take the output either from the front panel XLR connector, or a parallel XLR connector on the back panel. A second 1/4” jack provides an output to feed a guitar amplifier when necessary. A ground-lift switch helps eliminate ground loop buzz.

The two channels are entirely independent and can be used with two different instruments at the same time.

About Manufacturer

D.W. Fearn manufactures professional vacuum tube audio equipment. Our microphone preamplifiers and equalizers are in daily use around the globe, in personal studios as well as in the world's top recording studios.
