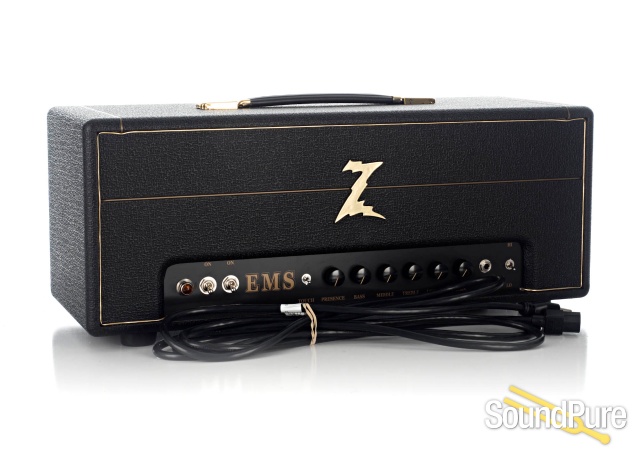

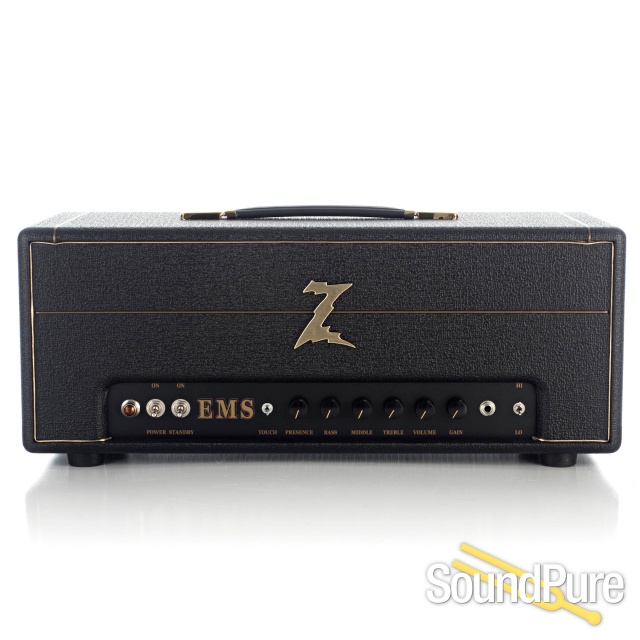

Dr. Z EMS 50w Amp Head #EE 42100 - Used  From Dr. Z

A very lightly used 2020 EMS head from Dr. Z!

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Dr. Z Amplification

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

What We Think

Condition: Used, Excellent

All the Massive Marshall tones you could ever want in one box! This amp is in barely used, excellent condition and even made it's way to us in the original packaging. A truly great deal on a fantastic head from Dr. Z!

Manufacturer's Description from Dr. Z

Our goal with the latest Dr. Z amp, the EMS, was to produce the essential sounds of 3 generations of classic British amplifiers. Starting with the mid-60s JTM 50 variant, we combine a dual EL-34 power section with a tube rectified power supply, available by selecting “tube” via the rectifier switch on the back panel. Along with the tube rectifier, setting the EMS’ sensitivity switch to “low” and “Touch” response switch to the down position, this combination will produce the bloom and feel of the early American tweed amps but with the British charm of EL-34 output tubes.

Flashing forward to the 70s, the essence of the “small box” JMP amp is available in the EMS by selecting the “solid state” rectifier via the back panel, selecting “low” sensitivity, and using the “Touch” switch to match the amplifier with your choice of guitar. Using the same circuit topography of the JTM series, only with a more powerful solid state power supply, this sound is noted for its lightning quick response and cutting “kerrang” in the upper midrange.

Lastly, the EMS incorporates the cascaded gain stage design found in the 80s JCM series. By using the “high” sensitivity switch on the front panel, and selecting solid state rectification, hard rock and classic metal tones with tight bass response and singing gain will come screaming out of your guitar. We massaged the circuit to remove some of the annoying, persistent high-treble this era of amplifier has been maligned for and boosted the gain a bit further so that more “modern” drive tones are available higher on the gain knob.

The EMS, like all Dr. Z amplifiers, is 100% hand-wired in Maple Heights, OH using select components throughout its stages and built on a custom rolled aluminum chassis. It has a precise copy of the Drake 784-139 50-watt output transformer for authentic British crunch. For a perfect match to the EMS small box head, we have our 2×12 cabinet loaded with a Celestion Creamback 65M speaker and a Celestion G12 H30 70th Anniversary speaker wired in series for 16 ohm. As a combo, the EMS is available in an open-back, 2×12 cabinet with 25 watt Celestion Greenbacks. This cabinet is modeled after the classic JTM 45 “Bluesbreaker” combo and is available in black with gold trim.

Dr. Z Amplification

Specifications

Model: EMS

Serial: EE 42100

Year: 2020

Power Output: 50 Watts

Output Tubes: 2 x EL34 (fixed bias)

Preamp Tubes: 3 x 12AX7

Rectifier: 5U4GB / Solid State (switchable)

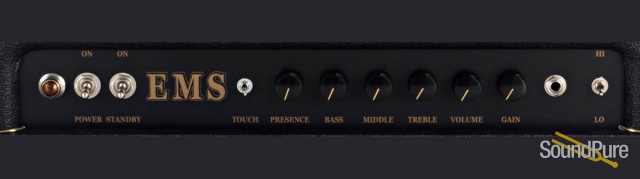

Controls: Gain, Volume, Treble, Middle, Bass, Presence

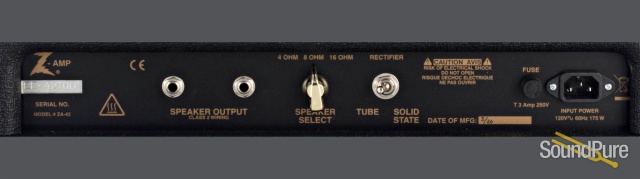

Other: 4, 8, 16 Ohm impedance via rotary switch - Hi/Lo Sensitivity Switch - "Touch" Sensitivity Switch - Tube/Solid State Rectifier Switch

Width: 23 5/8"

Depth: 9 1/4"

Height: 9 5/8"

Weight: 30 lbs
