Sound Pure's Take
We have access to all the instrument specific 4099 kits and accessories. If you don't see the instrument kit or accessory you're looking for, shoot us an email at mics@soundpure.com and we can help you get ahold of the best 4099 kit for your needs!
From DPA Microphones (Bruel & Kjaer)
- Clean and natural sound
- Excellent frequency and phase response
- Compact, discreet size
- Unique mounting system fits numerous instruments
- Detachable cable and versatile gooseneck extender

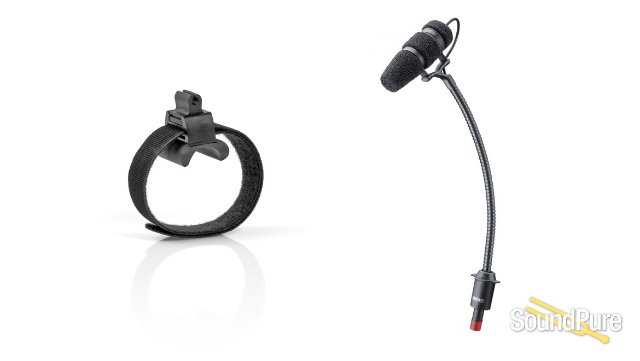

The 4099U is a microphone system especially designed to address the unique mounting challenges of slim bodied and unusually shaped instruments. It allows for high quality audio capture while the low profile and light weight of the unobtrusive design provides visual elegance along with uncompromised sound quality.
The creative design of the unique microphone clip includes a hook-and-loop fastener strap which allows the holder to fit numerous instruments of varying sizes and diameters such as oboe, clarinet, bassoon, recorder and flute. The hook-and-loop fastener band pulls tight to fit the circumference of the instrument, like a wrist watch on your arm. If using the clip on very large diameter instruments, additional hook-and-loop fastener straps can easily be added to extend the clip’s capacity.
The 4099U includes a revolutionary new “90 degree” system which provides many more mounting options. By detaching the clip from the gooseneck and re-mounting it turned 90 degrees, the number of mic positions is doubled.
The 4099U includes a 3-pin XLR phantom power adapter. The UC4099 Universal Clip is available separately, and can be used with any of the various versions of the 4099 family.
Gooseneck
Standard gooseneck length is 140 mm (5.5 in), which can be altered with the optional gooseneck extension unit, adding another 50% to the length, helping to achieve exactly the sweet spot for the instrument.
Cables
The updated 4099 range features detachable cable from gooseneck, so it’s more convenient to mount the mic on an instrument before connecting it. Furthermore, the choice of different cable qualities makes it possible to tailor your mic to the specific task, such as choosing the heavy duty 2.2 mm cable for PA/Live gigs or the easier-to-hide, thinner miniature cable for personal mounting on instruments where you don’t want the cable weight to interfere with your performance. In case of cable break, service is easy and fast.
The package includes
A supercardioid gooseneck mic with cable
Integrated windscreen and shock mount system
Clip with hook-and-loop fastener to mount on various instruments (also available separately as UC4099)
XLR adapter with belt clip
Adapters for wireless microphones
A wide range of connection adapters makes it possible to use DPA miniature microphones with all professional UHF, VHF or digital wireless system available plus 48 V Phantom.
DPA has specific adapters for AKG, Audio Ltd., Audio-Technica, Beyerdynamic, Electro-Voice, Lectrosonics, Micron, Mipro, Pastega, Telex ProStar, Ramsa, Samson, Sennheiser, Shure, Sony, Toa, Vega and other systems. Each adapter for your cordless microphone is guaranteed to perfectly mate to your system of choice.
- Directional characteristics
- Supercardioid
- Principle of operation
- Pressure gradient
- Cartridge type
- Pre-polarized condenser
- Frequency range
- 20 Hz to 20 kHz
- Frequency range, ± 2 dB, 20 cm (7.9 in) distance
- 80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz, Second order low-cut filter at 80 Hz with DAD4099-BC
- Sensitivity, nominal, ±3 dB
- 6 mV/Pa; - 44,5 dB re. 1 V/Pa
- Equivalent noise level A-weighted
- Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL)
- 71 dB
- Total harmonic distortion (THD)
- <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
- Dynamic range
- 100 dB
- Max. SPL, peak before clipping
- 142 dB
- Output impedance
- From MicroDot: 30 to 40 ohm, from DAD4099-BC: 100 ohm
- Cable drive capability
- 300 m (984 ft) with DAD4099-BC
- Output balance principle
- Signal balanced with DAD4099-BC XLR adapter
- Common Mode Rejection Ratio (CMRR)
- > 60 dB at 50 Hz to 15 kHz with DAD4099-BC XLR adapter
- Power supply
- Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD4099-BC XLR adapter
- Current consumption
- 1.5 mA; 3.5 mA with DAD4099-BC XLR adapter
- Connector
- MicroDot
- Color
- Black
- Weight
- 36 g (1.27 oz)
- Capsule diameter
- 5.4 mm (0.2 in)
- Microphone length
- 45 mm (1.8 in)
- Cable length
- 1.8 m (6 ft)
- Polarity
- Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter)
- Operating temperature range
- -40 °C to 45 °C (-40 °F to 113 °F)
- Relative humidity
- Up to 90 %
- Gooseneck, length
- 140 mm (5.5 in)
- Holder
- Fits instruments with a body depth between 35 mm (1.4 in) and 122 mm (4.8 in)
