From DPA Microphones (Bruel & Kjaer)
The Type 4041-SP is designed to work in a standard 48V phantom power environment. Since the capsule is the same as for the high voltage alternative 4041-S, the 4041-SP offers the same superior sound quality, with very slight changes in the specifications.
The cartridge MMC4041 can be unscrewed from the preamplifier which allows for the exchange of the preamplifier module. It is therefore always possible to upgrade to the high voltage preamplifier, also using the DPA mic amp HMA4000.

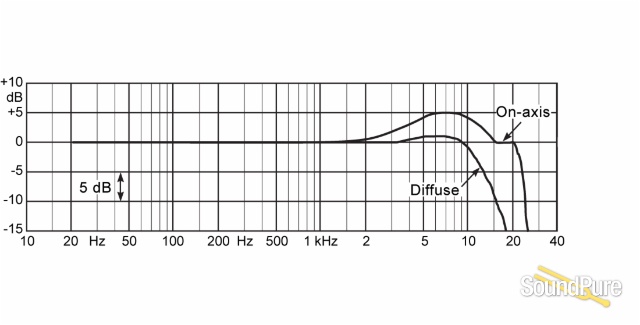

The frequency response has a 4-6 dB soft lift around 8kHz and matches the response of the legendary Type 4040 Hybrid Microphone. This microphone offers a totally transparent audio path with an exceptionally low noise floor of maximum 8dB(A) and a SPL handling capability of 134dB SPL peak.
| Directional characteristics: | Omnidirectional |
|---|---|
| Principle of operation: | Pressure |
| Cartridge type: | 24 mm (1 in) condenser with stainless steel diaphragm |
| Frequency range, ± 2 dB: | 20Hz - 20kHz with 4 - 6 dB soft boost at 8 kHz |
| Sensitivity, nominal, ± 2 dB: | 70 mV/Pa; -26dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Max. 8 dB(A) re. 20 µPa |
| Equivalent noise level, ITU-R BS.468-4: | Max. 20 dB |
| S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): | 86 dB(A) |
| Total harmonic distortion (THD): | <0.5% THD up to 120 dB SPL peak, <1% THD up to 126 dB SPL peak |
| Dynamic range: | Typ. 118 dB |
| Max. SPL, peak before clipping: | 134 dB |
| Output impedance: | <200 Ohm |
| Cable drive capability: | Up to 100 m (328 ft) |
| Current consumption: | 2.20 mA |
| Connector: | 3-pin XLR-M (Standard P48) |
| Weight: | 190 g (6.7 oz) |
| Capsule diameter: | 24 mm (1 in) |
| Length: | 170 mm (6.69 in) |
