DPA 4041-S Omnidirectional Solid State Microphone From DPA (B&K)

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manufacturer's Description from DPA (B&K)

The Type 4041-S is an omnidirectional microphone that uses the 24mm (1in) Modular Microphone Cartridge MMC4041 with the totally transparent MMP4000-S Solid State Preamplifier.

The cartridge MMC4041 can be unscrewed from the preamplifier which allows for the exchange of the preamplifier module. The frequency response from 10Hz to 20kHz with a 4-6 dB soft boost around 8kHz matches the response of the highly acclaimed Type 4040 Hybrid Microphone.

The 4041-S is powered via the standard HMA4000 Microphone Amplifier (not included with the 4041-S), a microphone system that offers a totally transparent audio path with an exceptionally low noise floor of maximum 7dB(A) and a SPL handling capability of 144dB SPL peak.

About Manufacturer

DPA Microphones A/S is a leading manufacturer of high quality condenser microphones and microphone solutions for professional applications in studio, broadcast, theatre, video/film, houses of worship, teleconference and sound reinforcement environments.

Specifications

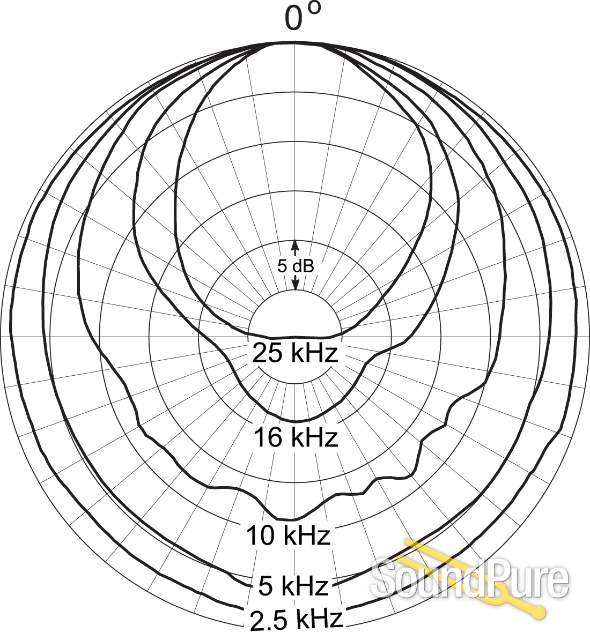

Directional characteristics:	Omni
Principle of operation:	Pressure
Cartridge type:	24 mm (1 in) condenser w. stainless steel diaphragm

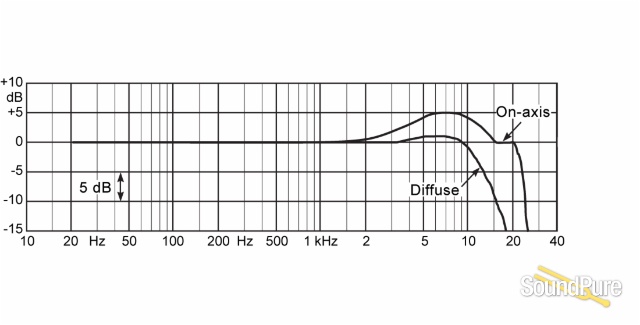

Frequency range, ± 2 dB:	10 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
Sensitivity, nominal, ±2 dB:	90 mV/Pa;-21 dB re. 1 V/Pa
Equivalent noise level A-weighted:	Max. 7 dB(A) re. 20 µPa
Equivalent noise level ITU-R BS.468-4:	Max. 19 dB
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):	87 dB
Total harmonic distortion (THD):	< 1% THD up to 126 dB SPL peak
Dynamic range:	Typ. 119 dB
Max. SPL, peak before clipping:	144 dB
Output impedance:	Matches HMA5000 input
Cable drive capability:	From microphone to HMA5000: Up to 20 m (66 ft). From Hma5000: Up to 300 m (984 ft)
Power supply:	Via HMA5000
Connector:	7-pin modified XLR-M (High Voltage)
Weight:	190 g (6.7 oz)
Length:	170 mm (6.7 in)
