Solid State Large Diaphragm Stereo Microphone Kit
$10,319.95
Our best price is too low to print,
but we'll email it to you immediately!
How to get a lower price, instantly!
Why do we do this?
Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

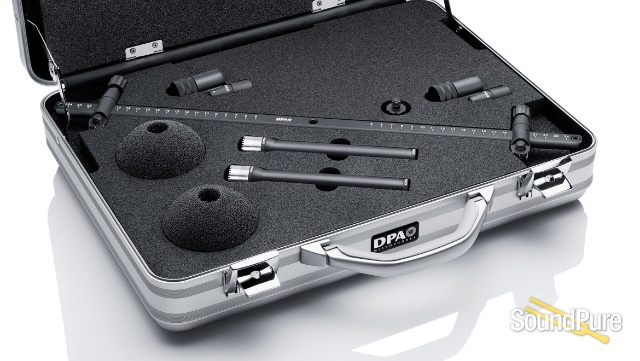

The Type 3532-S is a complete A-B Stereo Kit consisting of two carefully factory-matched omnidirectional Large Diaphragm Microphones Type 4041-S with 130V solid state preamplifiers in a discrete class A design. Included is also the Hi-Voltage Microphone Amplifier Type HMA4000 and a Stereo Boom all packed with cables in a handy carrying case with a foam insert. The specially selected microphones are matched within 1dB on both frequency response, sensitivity and self noise. The maximum phase response difference from 50Hz to 20kHz is 10. The frequency response from 10Hz to 20kHz with a 4-6 dB soft boost around 8kHz matches the response of the highly acclaimed Type 4040 Hybrid Microphone. The two 4041-S are powered via the standard HMA4000 Microphone Amplifier, creating an A-B stereo microphone system that offers a totally transparent audio path with an exceptionally low noise floor of maximum 7dB(A) and a SPL handling capability of 144dB SPL peak.
This is the ultimate choice for all professional A-B Stereo recordings.

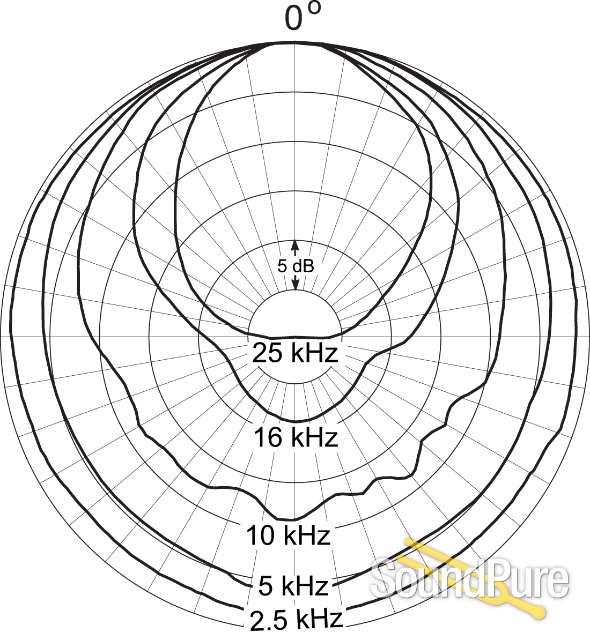

Directional characteristics: | Omnidirectional |
---|---|
Principle of operation: | Pressure |
Cartridge type: | 24 mm (1 in) condenser w. stainless steel diaphragm |

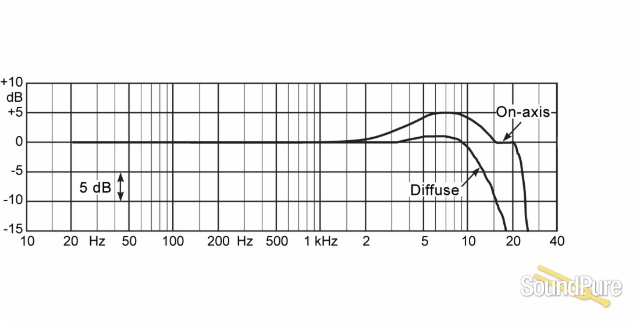

Frequency range, +/- 2 dB: | 10 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz |
Sensitivity, nominal +/- 2 dB at 250 Hz: | 90 mV/Pa |
Equivalent noise level, A-weighted: | Max. 7 dB(A) re. 20 µPa |
Equivalent noise level, ITU-R BS.468-4: | Max. 19 dB |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | 87 dB |
Total Harmonic Distortion (THD): | < 1% THD up to 126 dB SPL peak |
Dynamic range: | 119 dB |
Max. SPL, peak before clipping: | 144 dB |
Output impedance: | Matches HMA5000 input |
Cable drive capability: | From microphone to HMA5000: up to 20 m (66 ft). From HMA5000: up to 300 m (984 ft) |
Power supply: | HMA5000 |
Connector: | 7-pin modified XLR-M (High Voltage) |
Weight: | 190 g |
Capsule diameter: | 24 mm (1 in) |
Microphone length: | 170 mm (6.7 in) |
Matching tolerance (frequency response and sensitivity): | ±0.5 dB (20 Hz - 20 kHz) |
Phase deviation for kit: | <5° |
