From Acoustic Image Amps

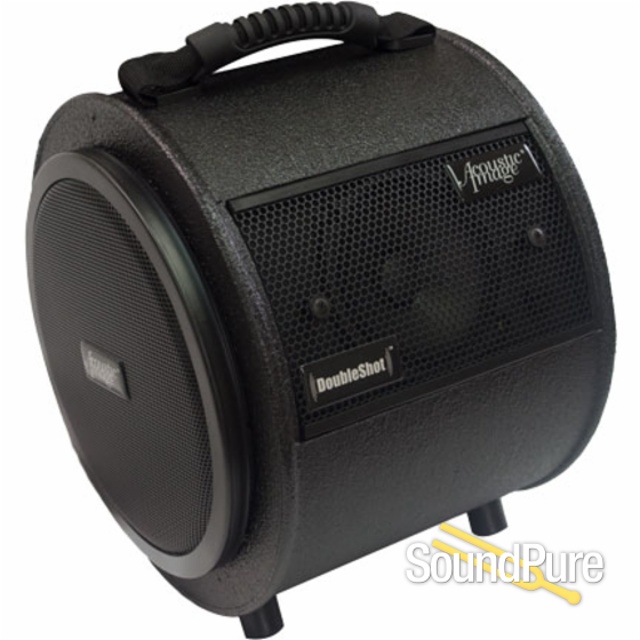

The DoubleShot is a compact (12in D x 11in W), lightweight (15 lbs.) 2x10 plus 1x5 speaker system for acoustic and electric instruments. The system is unique, with the woofers mounted in a side-firing configuration and the midrange firing forward. The result is a highly portable, yet great sounding speaker system.
The DoubleShot is an evolution of our UpShot speaker, with a second 10-inch driver and 5-inch midrange added to the design. It is, by far, the smallest and lightest 2x10 system available. Its small size belies its outstanding full range sound.

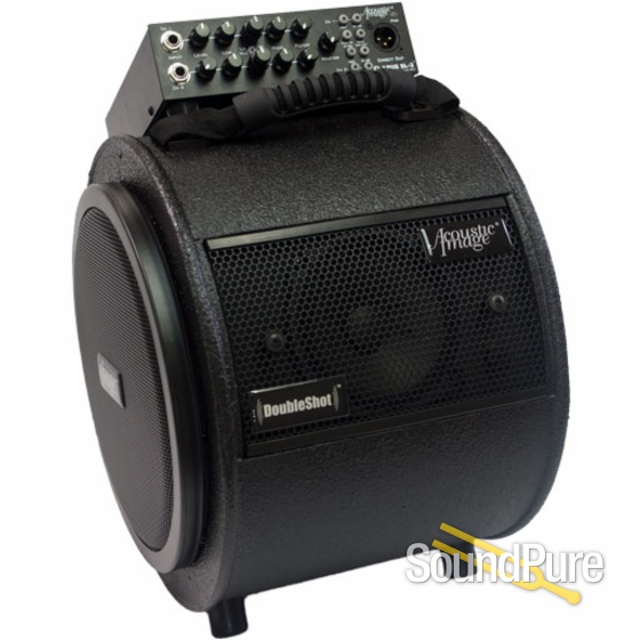

The DoubleShot Combo consists of the DoubleShot Speaker and one of our SL-class integrated amplifiers. There are rubber stops on the top of the cabinet that hold the amp head in place. When the amp is placed on top against the stops and the speaker is connected, a unique “combo” is formed.

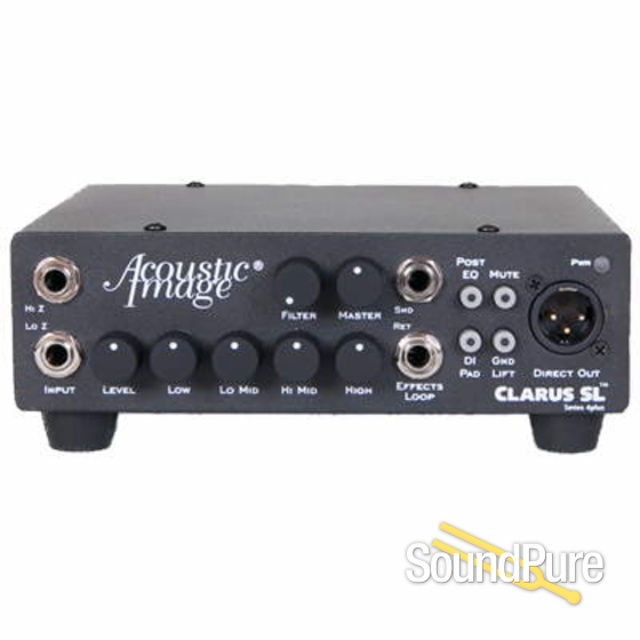

With 600 watts of power and one channel, Clarus SL is an exceptionally portable integrated amp—and an ideal road companion.
When the units are purchased together as a “combo,” a duffle/backpack carry bag is included.
Technical Specs
- Frequency Response
- 40 Hz - 16 kHz
- Impedance
- 4 ohms
- Max Continuous Power
- 600W
- Max SPL
- >118 db at 1 m
- Drivers
- 2x10 inch side-firing custom, 1x5 inch forward-firing custom w/ level switch
- Crossover
- Two-way second order asymmetric
- Enclosure
- 12 inches diameter, 11 inches wide
- Weight
- 15 pounds
- Input
- Neutrik Speakon wired to pole 1
Features
Designed for acoustic and electric instruments including bass, guitar and keyboards
Compact, highly portable, cylindrical shape fits in a backpack for transport
12 inches diameter, 11 inches wide, 15 pounds, small enough to fit in airline overhead storage bin or under seat
Two 10-inch broad frequency range custom side-firing drivers
One 5-inch forward firing midrange driver with level switch
Two-way asymmetric crossover
Omnidirectional sound fills the bandstand and venue
Bumpers allow compact amp head to mount on cabinet
Rated at 4 ohms, 600W
System
- Frequency Response
- 30 Hz-20 kHz (±0.5 dB)
- Signal to Noise Ratio
- >110 dB at direct out
- AC Power
- 100V to 240V, 50/60 Hz, automatically switched
- Size
- 2.1" x 7.2" x 7.4"
- Weight
- 2 lbs. 10 oz.
Preamp
- Instrument Input
- 1 Mohm or 10 Mohm, ¼ inch jack
- Direct Out
- +4 dB, balanced, XLR connector, ground lift, pre/post EQ selector, switchable 10 dB pad
- Effects Loop
- Parallel type
- Low Control
- Shelving type, ±12 dB at 30 Hz
- Low Mid Control
- ±12 dB at 250 Hz
- High Mid Control
- ±12 dB at 1200 Hz
- High Control
- Shelving type, ±15 dB at 10 kHz
- Low Cut Filter
- -12 dB/octave sweepable from 30 to 180 Hz
Power Amp
- Topology
- Class D (PWM)
- Switching Frequency
- 500 kHz
- Output Power 8 Ohm
- 300W rms continuous, 350W rms music (40% duty cycle), 500W peak transient
- Output Power 4 Ohm
- 500W rms continuous, 650W rms music (40% duty cycle), 1000W peak transient
- External Speaker Out
- Speakon type (pole 1), 2ohm min load
- Supplied Accessories
- Gig bag
Features
Extended frequency range, high fidelity sound
Light weight (<2.5 lbs.), small size (2.1x7.2x7.4 inches)
LoZ and HiZ 1/4 inch inputs for piezo pickup optimization
Input and Master level controls
Four band EQ I
Sweepable low cut filter
Effects loop
Direct out with selectable 10 dB pad, pre/post switch and ground lift
Mute switch
Selectable internal jumper options for gain and limiter
- High fidelity, low noise operation
- 110 dB SNR at direct out
Automatic voltage switching for universal AC mains operation
650 Watt output at 4 ohms (music power)
Dual speaker outputs with speakon connectors
Comes with padded case
