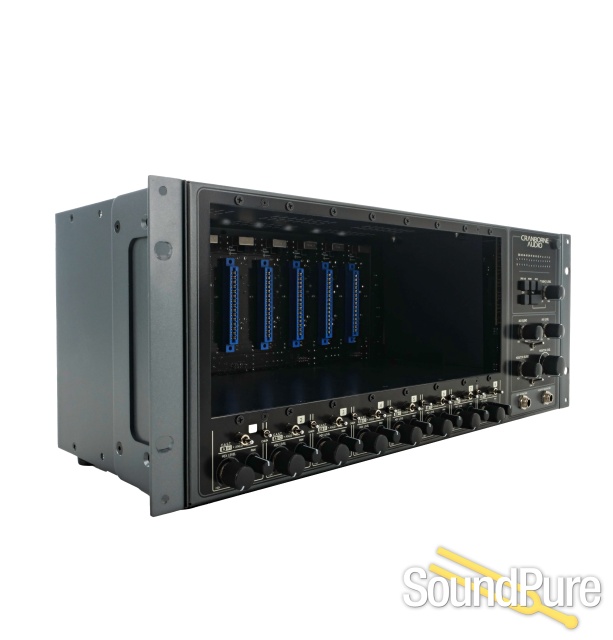

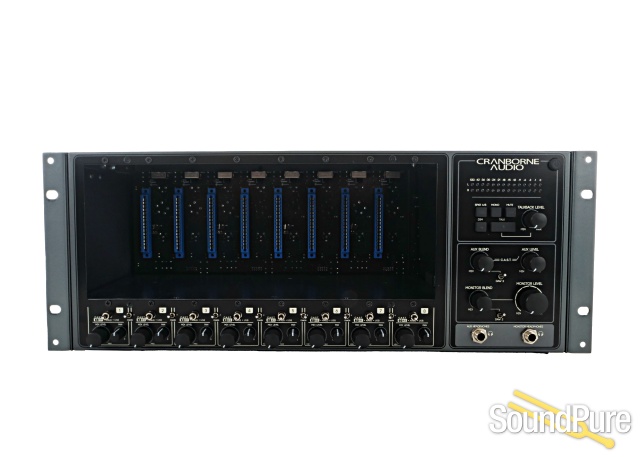

Cranborne Audio 500R8 500 Series Chassis & Interface - Used  From Other

Complete studio-in-a-box - 28-in/30-out USB interface, summing mixer, 8-slot high-current 500 series rack, artist mixer and monitor controller

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Other (Miscellanous Used/Vintage/Consign)

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

Manufacturer's Description from Other

The Cranborne Audio 500R8 is the centerpiece to the modern studio. It's a 28-in/30-out USB audio interface that combines a 500 series rack and high-performance AD/DA conversion with all of the connectivity required in the modern professional or home studio.

500R8 features the studio essentials that you need to build your dream studio such as an 8-into-2 high-headroom analog summing mixer, comprehensive monitor controller with talkback facility, 16-in/16-out ADAT interface, as well as a zero-latency analog artist mixer with reference-quality, high-powered headphone outputs.



The Best of Analog Character

By capitalizing on the vast and ever-growing 500 series market, you can configure your 500R8 to suit your tastes of analog flavour. By installing your favorite 500 series modules into the 8 available 500 series slots, you can create your ultimate analog front-end/preamp stage that can be multi-track recorded directly into your DAW.

Fill 500R8 full of vintage preamps for recording drums. Fill 500R8 full of clean and pristine preamps for recording strings. Fill 500R8 full of Preamp, EQ, and Compressor modules to create your own custom analog channel strips. The possibilities are endless and every 500R8 is unique to your sound.

Integrating 500 series modules into your workflow doesn't stop after the recording. Dedicated module source switches for each 500 series slot allow you to send USB channels from your DAW, into 500R8, through the 8 installed 500 series modules, and back into your DAW for recording (with that analog ‘mojo’ applied). Think of 500R8 as a bank of 8 external analog plug-ins.

For a more hands-on, all-analog approach to mixing, 500R8 also features an 8-into-2 high-headroom analogue summing mixer with dedicated level and pan controls that you can use to create your own high-headroom analog mix before recording it back into your DAW using dedicated USB inputs 9/10.



Digital Precision

In order to capture every subtle nuance of your analog signal, 500R8 features reference-class AD/DA conversion with 121dB (A-wtd) dynamic range and THD+N of <0.00032% (@ -4dBFS, 1kHz, A-wtd), all governed by 500R8’s master-reference grade internal clock with <0.5 picoseconds of jitter.

The combination of highly-accurate, low-jitter clocking and high-performance digital conversion ensures that every ounce of analogue character is captured with the utmost detail - free of unwanted digital artifacts from the conversion process and with a wide dynamic range thanks to 500R8's high-headroom analog design and low noise floor.



USB Audio Interface

Cranborne Audio's USB 2.0 audio interface provides high channel-count and low-latency performance while being accepted by all PC/macOS devices with unparalleled stability and longevity. 500R8 is core audio compliant for macOS or features a lightweight control panel for Windows machines that absorbs as little CPU resources as possible to leave you with more power for plug-ins within your DAW session.

Plug 500R8 into your PC/macOS device and your DAW will see a full 28-in, 30-out USB audio interface. 500R8 also includes a full complement of 5-pin MIDI I/O, ADAT I/O, Word Clock I/O via BNC, and S/PDIF I/O to ensure that all of your digital studio connectivity is covered.



Monitor Controller

500R8 features a comprehensive monitor controller with connectivity for two sets of studio monitors. As well as seamless speaker switching between both sets of studio monitors, there’s a Mono button that sums L-R channels to check for mono compatibility, a DIM switch that drops the speaker volume by 12dB for relaxed discussions during recordings, and a speaker mute switch for tracking with headphones.

500R8 also features a comprehensive Talkback section with XLR input, 48v phantom power, push-to-talk operation, and automatic signal routing to all C.A.S.T. and headphones outputs connected to the system.



Summing Mixer

Analogue summing can give your mix the final bit of analog character required to achieve professional and polished sonic results. What makes 500R8's 8-into-2 channel summing mixer so special is that it is positioned after the 8 500 series slots - allowing you to insert saturation or subtle 'bus-compression' modules and create a stereo mix using 500R8’s dedicated analog level and pan controls beneath each module. 500R8's summing mixer also has a dedicated converter which can be used to record your stereo mix into your DAW on USB inputs 9/10 with a massive +24dBu of headroom.



Zero-Latency Artist Mixer

500R8 moves away from clunky "virtual" software mixers and gets your hands back onto the mix. By using 500R8’s high-headroom analog summing mixer, you can create zero-latency, all-analog mixes of live sources that can be blended with discrete USB playback paths and sent directly to the recording musicians via C.A.S.T. or the local headphone outputs.



C.A.S.T. Equipped

C.A.S.T. stands for Cat 5 Analogue Snake Transport and enables cost effective and organized cable management around your studio. C.A.S.T. repurposes off-the-shelf, shielded Cat5 Networking cables to transport 4 channels of balanced analog audio over a single cable.

500R8 has 4 C.A.S.T. IN ports that allow you to connect C.A.S.T. enabled breakout boxes (such as the Cranborne Audio N22 and N22H) to 500R8 and relocate analog I/O wherever it is needed around the studio.

Connect mic/line sources into the C.A.S.T. breakout box and that signal travels through the Cat 5 cable and directly into the modules installed into 500R8. At the same time, the analog mix created on 500R8 is sent through the same cable and into the connected breakout box. This allows for seamless analog audio connectivity between the control room, live room, vocal booth, or the bedroom next door!

C.A.S.T. is 100% analog and requires no setup in order to operate. It can easily work at distances up to 100m when Cat 6e or Cat 7 cable is used and a complete cat 5 studio cabling infrastructure costs a fraction of what analog multi core would cost. No setup. No latency. No fuss. And it sounds great.



Designed and Engineered in the UK

To ensure that every product bearing the Cranborne Audio name is worthy of studio environments big or small, every 500R8 is carefully assembled by a skilled workforce with immense attention to detail and every product is tested thoroughly by a skilled engineer before shipping to destinations around the world.



FEATURES:

  • 28-in/30-out USB 2.0 audio interface
  • High-performance A/D conversion
  • High-performance D/A conversion
  • Master reference-quality internal clock
  • Monitor controller with talkback
  • Analog summing mixer
  • Zero-latency artist mixer
  • Reference-quality headphone outputs
  • High-current 8-slot 500 Series rack
  • C.A.S.T compatibility
  • 24 V, 5 amp external locking power supply
  • Designed and engineered in the UK
  • More Information
Other (Miscellanous Used/Vintage/Consign)

About Manufacturer

Here at Sound Pure we hand-select used and vintage pieces of gear for our inventory. Our used selection always reflects the high standards of quality and craftsmanship that we expect from all of our manufacturers.   We are a small team of dedicated experts, located in Durham, NC.  We buy, trade, and consign instruments that we truly believe in.  Because of this, we have developed a reputation of quality and trust with our customers, located all over the world.   Our best customers are the ones that truly understand our personal touch and commitment to everything we sell, and range from hobbyists and enthusiasts to some of the biggest names in the business.  Our passion bridges the products we love with the real relationships we develop with our customer - whether they are a lifelong musician, or they are just getting started on their musical journey but care about value, quality, and being treated right.

We vigorously test everything we take in to ensure authenticity, functionality, and reliability.  We are supported by one of the most well-respected luthiers in the Southeast, guaranteeing products that come in are thoroughly vetted, and that products that go out our in premium, performance- ready shape.   We are so confident in our ability to provide the highest quality music equipment in the industry, we even invented our “Try Before You Buy” program where we can ship out a product before collecting actual payment.

Sound Pure's inventory is constantly changing, ever-evolving, with some items sold before reaching the website.    Looking for something specific? Have questions about this product's condition or history?  Want more photos, or to simply chat with an expert who's had his hands on this actual piece of gear?  It is truly our pleasure to talk with our customers, please do contact us now.

Specifications

Condition  Used

Unit Weight  15.43 lb

Chassis  19-inch Rack-Mount

Module Type  500 Series

Module Slot Count  8 Slots

Rack Spaces  4U

Input Connectors  BNC, CAT5, Optical, 1/4-inch TRS, Analog XLR

Output Connectors  BNC, Optical, 1/4-inch TRS, Analog XLR

MIDI Connections  In, Out

Computer Connection  USB
