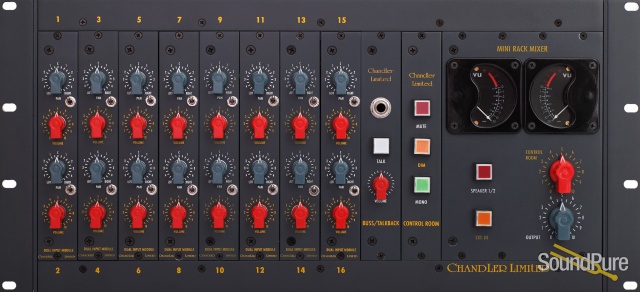

The Chandler Limited Mini Rack Mixer is a discrete, classic sounding 16 channel mixer with 22 hand-wound transformers for tons of beefy analog vibe and a full Control Room section!
$8,569.00
The Chandler Limited Mini Mixer is the culmination of Chandler's experience working with many types of vintage discrete circuits. The Mini Rack Mixer traces its lineage back to several types of these amplifiers developed in the 60s and 70s that have been Chandlerized for modern usage.
Each Channel of the 16x2 mixer is transformer balanced and driven by the new Chandler line amp, which borrows from Chandler's other products but has been redesigned for use in this mixer. The Mini Mixer is jam-packed with 20 discrete amplifiers and 22 custom wound transformers, giving it a classic sound with all the punch and tone you need for today's digital environment.
In addition to the mixer section, the unit has a full featured Control Room section including Talkback, Speaker switching, Mute, Mono, Dim, External input (also used as an insert point), and separate Control Room and Stereo Buss outs. Mixers are easily expandable to 32 channels or more.
All Mixer units require and function on the PSU-2, Chandler Limited power supply. The PSU-2 has an internal switch for setting voltage to 120V or 220V (115V/230V).
Re-creating some of the most sought after gear of the 60's and 70's, Chandler Limited has built some of the best gear in the land. Look to them for the "classic rock" and Metal sound used by some of yesterday's as well as today's best acts. Watch closely, because they continue to bring new products to market based on the legendary sounds of the past, and some that have a twist (or upgrade) of their very own. Chandler designs and releases some seriously well-built gear for the most discriminating (and famous), musicians, producers, and engineers.
MINI RACK MIXER TECHNICAL SPECIFICATIONS
CHANNELS: 16×2
CIRCUIT: Class A, Discrete, Transistor

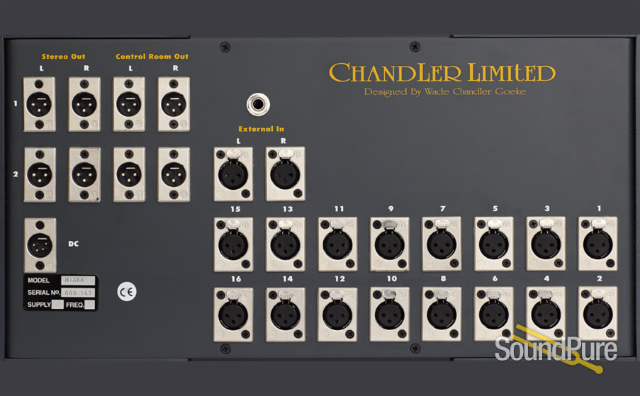

CONNECTIONS
I/O: XLR, Transformer Balanced, Pin 2 Hot, Input Ipmedance: 10k
External Input: TRS (Stereo)
Talkback Mic: 1/4″
POWER: +/-28v
Requires Chandler Limited 3-amp external power supply.
