Black Lion Audio - B172A Hybrid FET/Optical Compressor  From Black Lion Audio

FET and Opto compression in one unit with A/B-B/A switching and stereo linking.

Black Lion Audio


"Experience the Difference"

Sound Pure's 3-Year Warranty

Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $31/mo.

Manufacturer's Description from Black Lion Audio

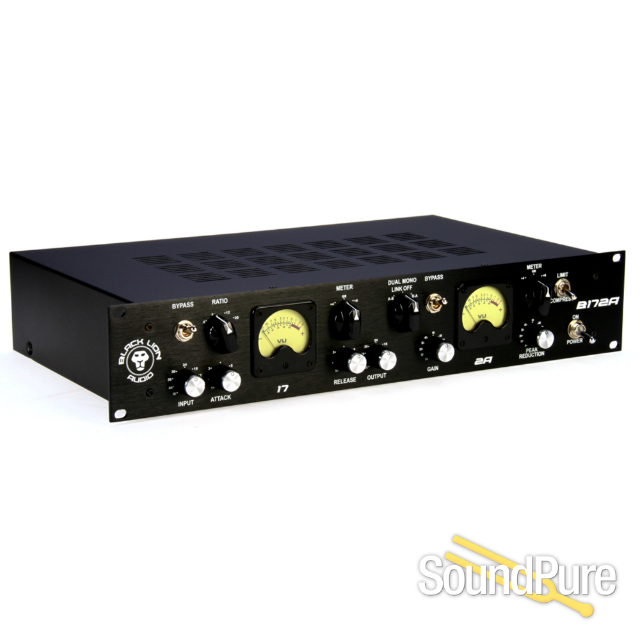

Two classics in one chassis, the B172A marries the Seventeen version of the legendary “76” FET limiter with their take on the renowned “2A” tube optical compressor. Whether you use the FET and opto separately — or in series, where one catches the audio’s peaks and the other provides the heavy compression — the B172A will blow you away with its incredible sound and versatility. The B172A’s Dual Mono Link makes it easy to route your signal through the 17 and 2A circuits in any order. Painstaking effort went into choosing the best transformers needed for each circuit. Spec’d with a CineMag input transformer on the 2A side, BLA’s own Chicago-wound output transformers on both circuits, high-grade signal path and decoupling capacitors, the B172A gives you ultra-convenient access to a pair of classic dynamics processors while also providing a valuable signal processing tool never before available in a single chassis.



• 76- (Seventeen) and 2A-style compression in a single 2RU chassis

• A/B, B/A, and Independent signal routing switchable on faceplate

• Cinemag 2A input transformer

• Chicago-wound 76 and 2A output transformers

• Custom-designed Black Lion Audio T4B opto element

• High-grade signal path and power decoupling capacitors

• Stereo linkable

Black Lion Audio


Type: FET / Optical Compressor

Number of Channels: Stereo, Dual Mono Link

Controls: Ratio, Attack, Release, Peak Reduction

Ratio: 4:1 to 20:1

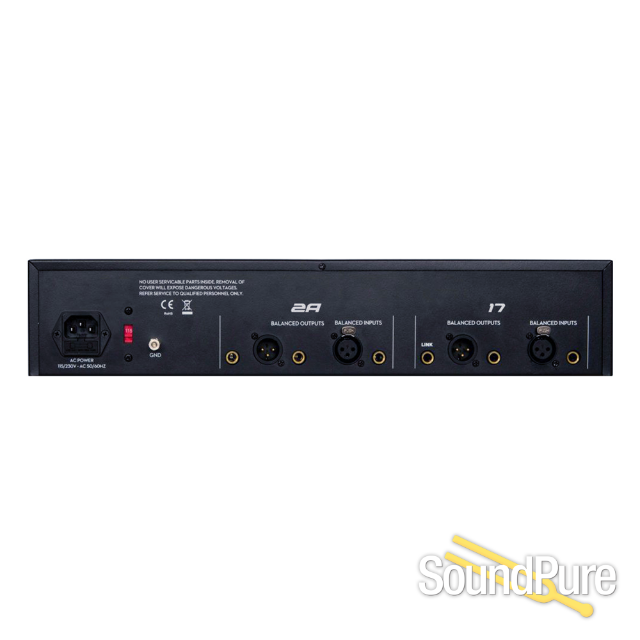

Inputs: 2 x XLR, 2 x 1/4″

Outputs: 2 x XLR, 2 x 1/4″

Other I/O: 2 x 1/4″ (link)

Additional Features: A/B or B/A signal routing

Rack Spaces: 2U

Power Source: Standard IEC AC cable

Width: 19″
