From BAE
Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.

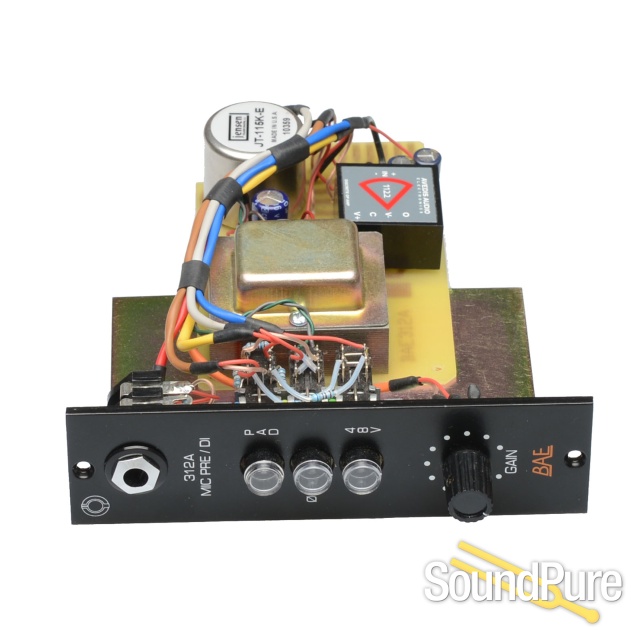

Made with the highest quality parts including Jensen input and output transformers and the Avedis® 1122 opamp. The 312A also includes a high impedance DI for instruments.
- Made using Avedis® 1122 opamps
- Supplied with Jensen input and output transformers.
- Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality.
- Switches have gold contacts for long life.

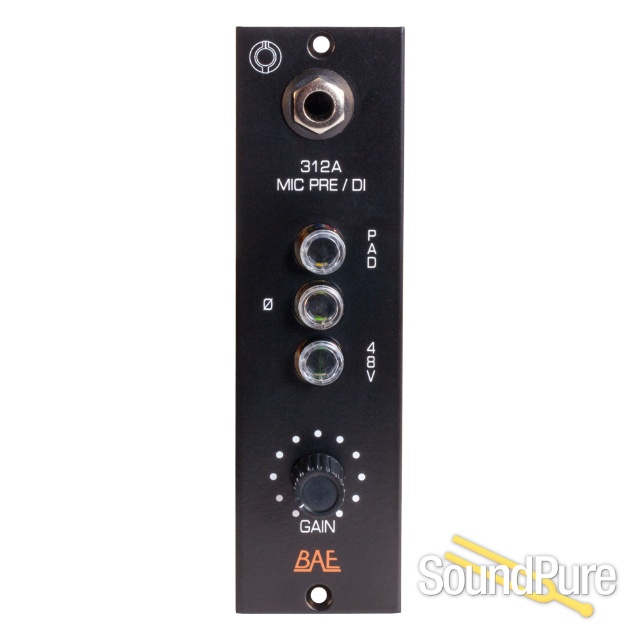

- XLR connectors on the back for mic input and output and phone jack in front for direct input.
- High impedance direct input for guitar and synthesizer.
- Separate front panel switches for phantom power.
- Frequency Response
- 5Hz to 75kHz (-3dB)
- Mic Input Impedance
- ≈1400 ohms
- Line Input Impedance
- 10k ohms
- DI Input Impedance
- ≈250k ohms
- Output Impedance
- 75 ohms
- Common Mode Rejection Ratio
- 110dB min @ 60Hz
- Maximum Output Level
- +27.1 dBu @ 600Ω
- Power Requirements
- 40mA per Rail
- Gain dB
- 10 to 66 dB
- Equivalent Input Noise
- 120 dBu; Unweighted 300kHz Bandwidth
Weight
1 LBS / 0.45 KG
Dimensions in Inches 1.5W x 5.5L x 6D
