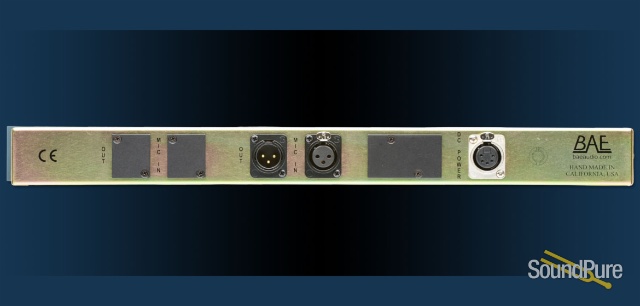

BAE 1073MPF Single Channel Preamp without Power Supply  From BAE

Single-channel mic preamp from BAE, power supply not included. This 1073MPF is the same great 1073 mic pre, with the analog High Pass filter from the EQ version.

BAE

$1,445.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Payments as low as $32/mo.

Manufacturer's Description from BAE

Just like the 1073 equalizer, it retains it's well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids.

A transformer coupled input, with two selectable impedances, makes the 1073MPF work well with a variety of microphones.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a colored and versatile mic-pre, the 1073MPF maintains its sonic signature across a wide bandwidth.

  • All Class A, transformer-coupled design in a 19" 1U chassis.
  • Inductor based high pass filter
  • Line level XLR inputs for extra versatility as a line preamp.
  • High impedance DI for guitar and synth.
  • The same Class A components as the 1073 and 1084.
  • Illuminated phase reverse and phantom power pushbuttons.
  • Input impedance selector switch between 1200 and 300 ohms.
  • Same modular design and hand-wiring BAE is known for.
  • A regulated linear power supply will run up to four channels.
BAE

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

Frequency Response
10Hz to -3dB at 55kHz

High Pass Filter
50Hz, 80Hz, 160Hz, 300Hz

Mic Input Impedance
≈1200/300 ohms

Line Input Impedance
10k ohms

DI Input Impedance
≈150k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600Ω

Power Requirements
115/230 VAC, 30W

Gain dB
0 to 71 dB

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth

Weight (Single/Dual)
8 LBS / 3.63 KG
10 LBS / 4.54 KG

Dimensions (Inches)
19W x 1.75L x 9D
