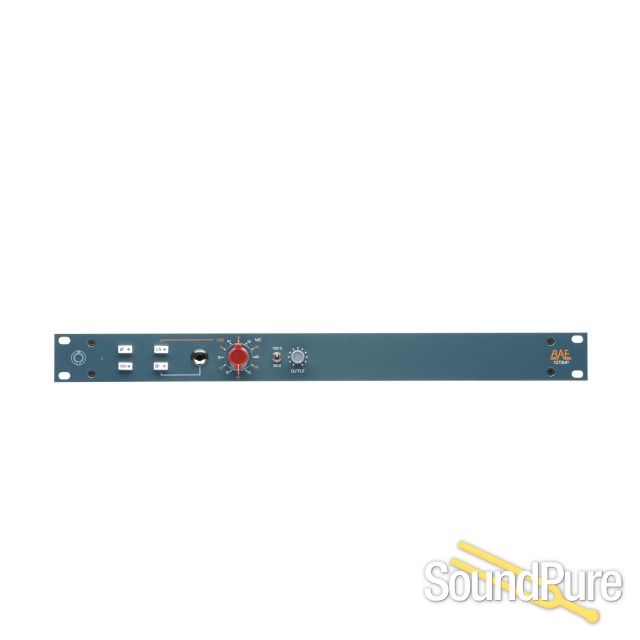

BAE 1073 MP Single Channel Preamp without Power Supply  From BAE

Single-channel mic preamp from BAE, power supply not included

BAE

$1,095.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Payments as low as $24/mo.

Manufacturer's Description from BAE

This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

A Carnhill transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

  • All Class A, transformer-coupled design in a 19" 1U chassis.
  • Line level XLR inputs for extra versatility as a line preamp.
  • High impedance DI for guitar and synth.
  • The same Class A components as the 1073 and 1084.
  • Illuminated phase reverse and phantom power push-buttons.
  • Input impedance selector switch between 1200 and 300 ohms.
  • Same modular design and hand-wiring BAE is known for.
  • Regulated linear power supply will run up to four channels.

Manufacturer tip:
Set the gain knob (red Marconi) around 20 on the dial and set the output (grey knob) fully clockwise. This gives you the highest headroom and cleanest signal path. Every click is in 5db increments so if one click is too hot, attenuate the output to get in between the 5db steps.

Another trick people like to do is to put the final mix through the line inputs on the back to get that harmonic distortion. To get even more of that Class A output stage is to come out of channel 1 and into channel 2 then you have an accumulative effect of that classic output stage.
BAE

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

Frequency Response:
10Hz to -3dB at 55kHz

Mic Input Impedance:
≈1200/300 ohms

Line Input Impedance:
10k ohms

DI Input Impedance:
≈150k ohms

Output Impedance:
65 ohms

Common Mode Rejection Ratio:
100dB min @ 60Hz

Maximum Output Level:
+27.4 dBu @ 600Ω

Power Requirements:
115/230 VAC, 30W

Gain dB:
0 to 71 dB

Equivalent Input Noise:
-110 dBu; Unweighted 300kHz Bandwidth

Weight (Single/Dual):
8 LBS/3.63 KG
10 LBS/4.54 KG

Dimensions (Inches):
19W x 1.75L x 9D
