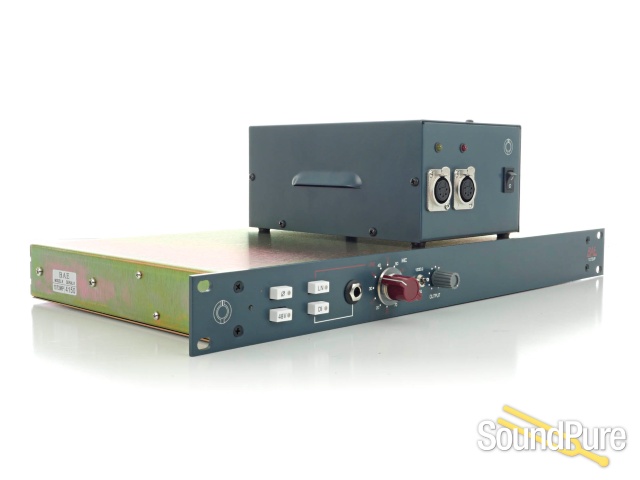

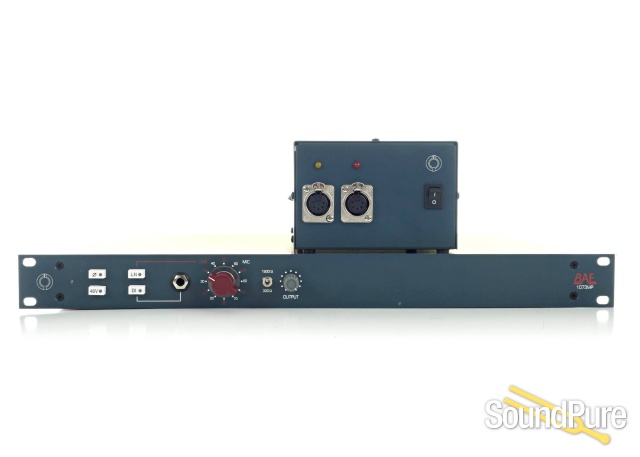

BAE 1073 MP Single Channel Preamp with Power Supply - Used From BAE
Single-channel mic preamp from BAE, power supply included
"Gone, Baby, Gone"
This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.
We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.
Want to know if one lands?
Notify MeWant to discuss what's coming?
Manufacturer's Description from BAE
This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.
A Carnhill transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.
There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.
As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.
- All Class A, transformer-coupled design in a 19" 1U chassis.
- Line level XLR inputs for extra versatility as a line preamp.
- High impedance DI for guitar and synth.
- The same Class A components as the 1073 and 1084.
- Illuminated phase reverse and phantom power push-buttons.
- Input impedance selector switch between 1200 and 300 ohms.
- Same modular design and hand-wiring BAE is known for.
- Regulated linear power supply will run up to four channels.
Manufacturer tip:
Set the gain knob (red Marconi) around 20 on the dial and set the output (grey knob) fully clockwise. This gives you the highest headroom and cleanest signal path. Every click is in 5db increments so if one click is too hot, attenuate the output to get in between the 5db steps.
Another trick people like to do is to put the final mix through the line inputs on the back to get that harmonic distortion. To get even more of that Class A output stage is to come out of channel 1 and into channel 2 then you have an accumulative effect of that classic output stage.
About Manufacturer
BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.
Specifications
Frequency Response:
10Hz to -3dB at 55kHz
Mic Input Impedance:
≈1200/300 ohms
Line Input Impedance:
10k ohms
DI Input Impedance:
≈150k ohms
Output Impedance:
65 ohms
Common Mode Rejection Ratio:
100dB min @ 60Hz
Maximum Output Level:
+27.4 dBu @ 600Ω
Power Requirements:
115/230 VAC, 30W
Gain dB:
0 to 71 dB
Equivalent Input Noise:
-110 dBu; Unweighted 300kHz Bandwidth
Weight (Single/Dual):
8 LBS/3.63 KG
10 LBS/4.54 KG
Dimensions (Inches):
19W x 1.75L x 9D
