BAE 1066D Module From BAE

This mic pre + EQ is the preamp of a 1073 with more high-frequency choices and a midrange band with frequency choices tailor picked for guitars.

$2,545.00

Brand New

"Experience the Difference"

Sound Pure's 3-Year Warranty

Our Free 3-Year Warranty!

In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.

Learn more »

Lifetime Support

Free Lifetime Technical Support!

Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

This Product Ships Free!

Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.

Usually ships 6-10 business days after order.

Add to Cart

Rating: 4.8
Our Google Reviews

Payments as low as $57/mo.

Or, apply & pay as little as $57/mo.

0% interest financing available. See all options.

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manufacturer's Description from BAE

The 1066D features the same mic-line pre-amplification stage as the 1073, but features different frequency selections in its EQ for a whole new sonic palette. The available frequencies on the 1066 are especially well suited to guitar applications because of its unique midrange.

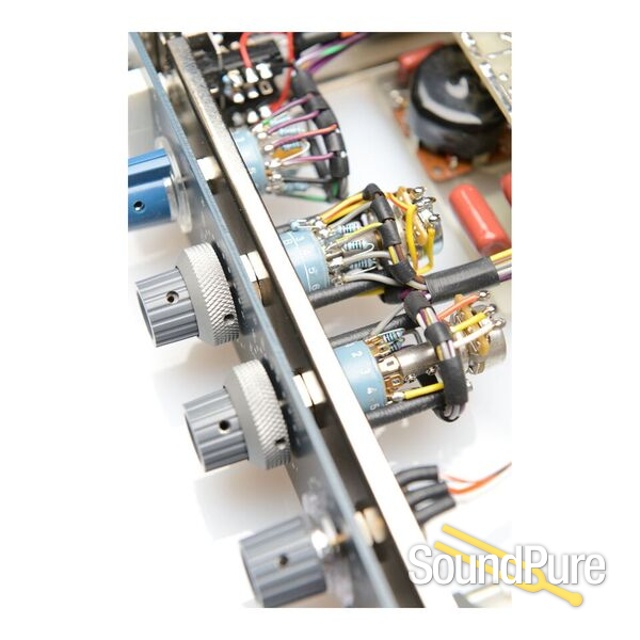

The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066DL adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.

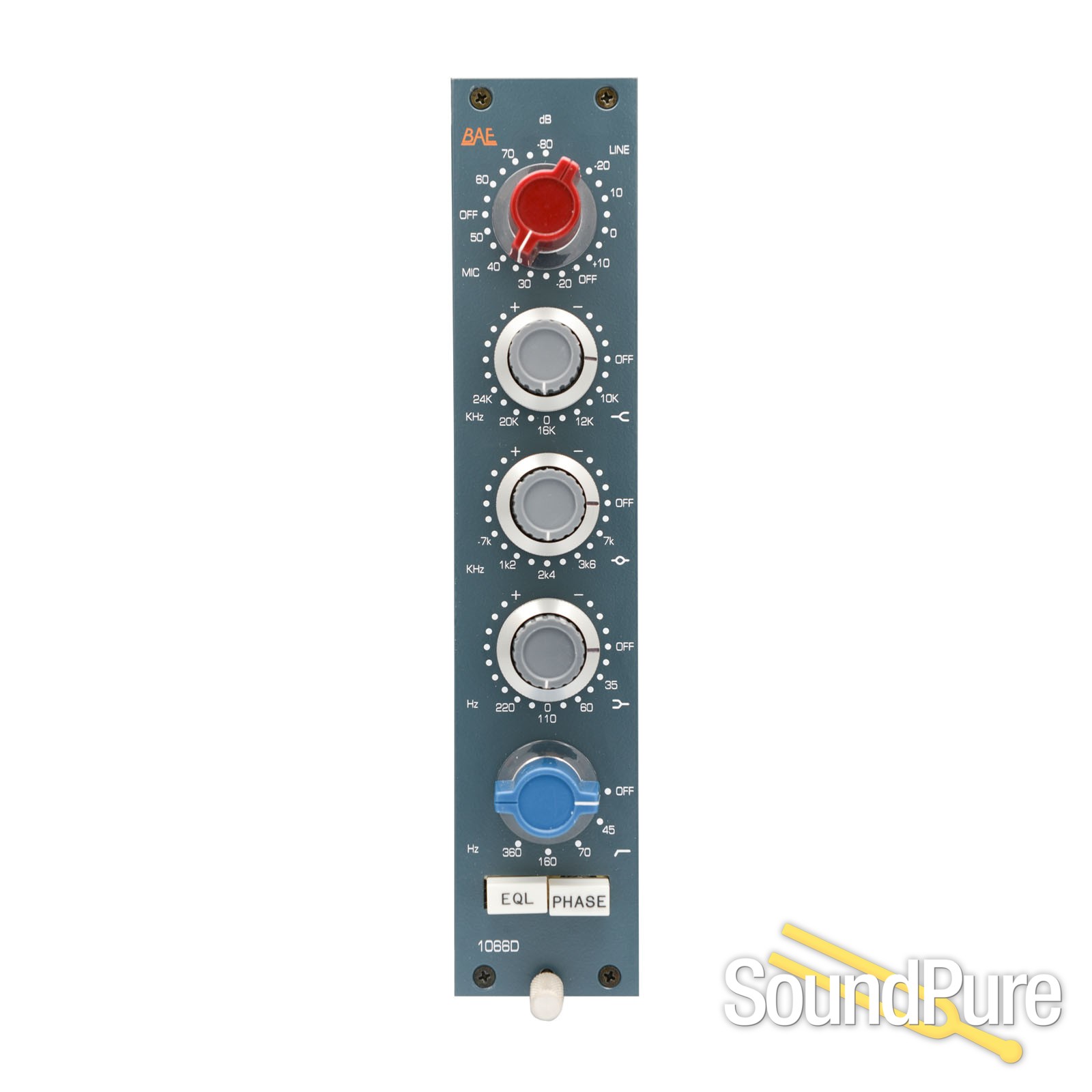

High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
EQ Button: Switches the equaliser on or off
Phase Button: 180°

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.
