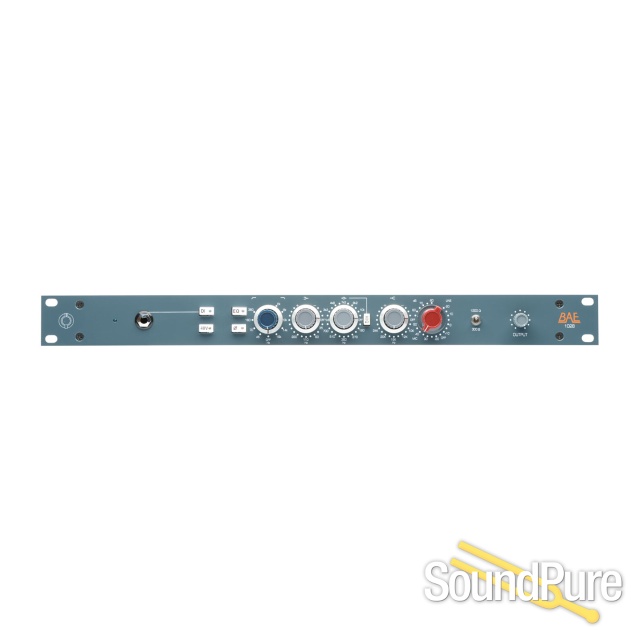

BAE 1028 Single Channel Mic Preamp with Power Supply From BAE
19" Rackmounted mic/instrument amplifier with expanded Eq section for creative tone shaping
$3,975.00
"Experience the Difference"
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Rating: 4.8
Payments as low as $90/mo.
Manufacturer's Description from BAE
The 1028 is completely hand-wired using Carnhill (St. Ives) transformers. It has the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and hi sections. Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways. The 1028 includes the same low pass filter as the 1084, giving it 28 frequencies.
- High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz
- Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
- Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz.
- High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
- Low Pass Filter: 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz.
- EQ Button: Switches the equaliser on or off
- Phase Button: 180°
About Manufacturer
BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.
Specifications
Frequency Response
10Hz to -3dB at 55kHz
3 Band Equaliser
HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz
High Pass Filter
45Hz, 70Hz, 160Hz & 360Hz
Low Pass Filter
18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz & 18kHz
Mic Input Impedance
≈1200/300 ohms
Line Input Impedance
10k ohms
DI Input Impedance
≈150k ohms
Output Impedance
65 ohms
Common Mode Rejection Ratio
100dB min @ 60Hz
Maximum Output Level
+27.4 dBu @ 600Ω
Power Requirements
115/230 VAC, 28W
Gain dB
0 to 80 dB
Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth
Weight (Module/Rackmount)
6 LBS/2.72 KG 10 LBS/4.54 KG
Dimensions in Inches (Module/Rackmount)
45 mm W x 8.75 inches H x 10.5 inches D 19W x 1.75L x 9D
