BAE 1023 Rackmount with power supply  From BAE

The 1023 is a rackmounted mic pre/EQ with the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and high sections.

BAE

$3,595.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Payments as low as $81/mo.

Manufacturer's Description from BAE

Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways.

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
BAE

About Manufacturer

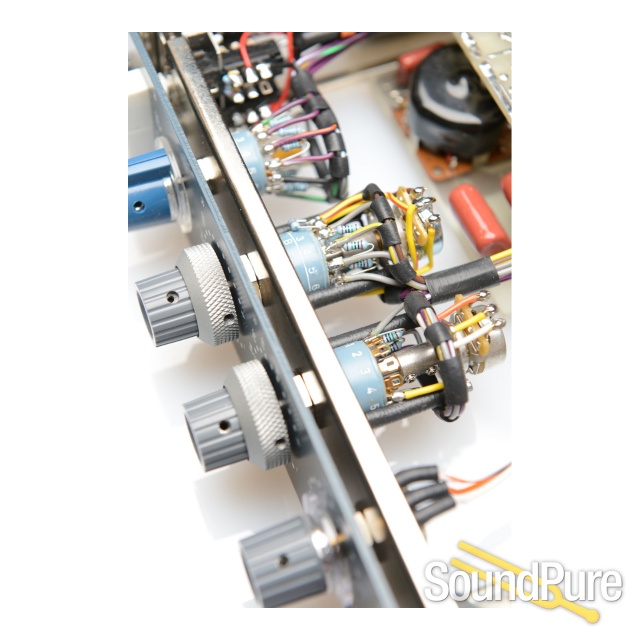

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

Frequency Response

10Hz to -3dB at 55kHz

3 Band Equaliser

HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz

LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz

MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz

High Pass Filter

18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz

Mic Input Impedance

≈1200/300 ohms

Line Input Impedance

10k ohms

DI Input Impedance

≈150k ohms

Output Impedance

65 ohms

Common Mode Rejection Ratio

100dB min @ 60Hz

Maximum Output Level

+27.4 dBu @ 600Ω

Power Requirements

115/230 VAC, 28W

Gain dB

0 to 80 dB

Equivalent Input Noise

-110 dBu; Unweighted 300kHz Bandwidth

Weight (Module/Rackmount)

6 LBS/2.72 KG 10 LBS/4.54 KG

Dimensions in Inches (Module/Rackmount)

45 mm W x 8.75 inches H x 10.5 inches D 19W x 1.75L x 9D
