Aviom D-800 A-Net Distributor  From Aviom

A-Net Distributor for Aviom Personal Monitor Systems

Aviom

$2,149.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $48/mo.

Manufacturer's Description from Aviom

The D800 A-Net Distributor provides the link between the input module or console card and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.



The D800 also integrates additional advanced options for delivering high-channel-count audio streams to your Personal Mixers, streamlining connections between A360s and transmitters for wireless in-ear monitors, and integrating the A360 Display iOS app.



The D800 can be used with A-16II, A320, and A360 Personal Mixers in any combination.



Simple setup. Powerful performance.

On the most basic level, the D800 does an unglamorous but important job: get power and audio to your Personal Mixers. Set-up is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.



Get more channels to your mixers

Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha®), the D800 can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixers. Mix channels can be individually selected for each A360 Personal Mixer using A360 Channel Manager, allowing each musician to mix exactly the sources they need.



Grow your system

If you need more than eight Personal Mixers, the D800 includes an A-Net Out port on the rear panel—perfect for sending the incoming audio stream (regardless of its original source) on to additional A-Net Distributors.



Precision Engineered for Reliability

From the innovative power supply sub-system to the mechanical design to the whisper-quiet thermal management, the D800 is built to give you rock-solid performance you can count on.

Aviom

About Manufacturer

Best known for changing the face of monitor mixing with its Pro16 Monitor Mixing System, Aviom offers a full line of audio networking products, powered by A-Net, Aviom's innovative high speed digital audio transport technology. With its second generation of A-Net products, the Pro64 Series, Aviom has simplified system design while enhancing control, flexibility, and performance. The company was founded in 2002 by a team of engineering, design, and product development professionals with many years of experience in the Musical Instrument and Pro Audio fields. Aviom's mission is to create innovative, technology-based products that address the real-world needs of audio professionals and musicians working in a variety of environments. Both Aviom's Pro16 and Pro64 products are used in a range of portable and fixed installation applications, including live sound reinforcement, broadcast, recording studios, houses of worship, theaters, schools, and post-production facilities worldwide. Both Aviom's Pro16 and Pro64 products are used in a range of portable and fixed installation applications, including live sound reinforcement, broadcast, recording studios, houses of worship, theaters, schools, and post-production facilities worldwide.

Specifications

Technical Specifications

A-Net to/from Personal Mixers (front panel) Eight locking RJ45 connectors, powered;
Compatible with A-16II, A320, and A360 Personal Mixers;
2-position switch (I/II) accommodates A-16II and A320 (I) and the bidirectional A360 Personal Mixer (II)
A-Net In or
A-Net Bridge In
Accepts Pro16 or Pro16e A-Net; one locking RJ45 connector

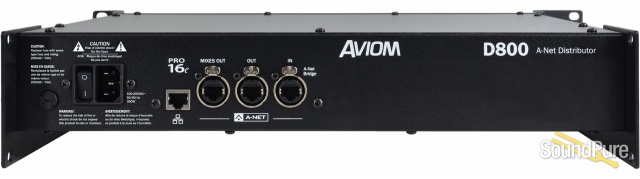

A-Net Out (rear panel) Pro16e A-Net; one locking RJ45 connector, unpowered
Supports system expansion and the A-16II, A320, and A360 Personal Mixers
A-Net Mixes Out Pro16e A-Net;
One locking RJ45 connector, unpowered;
Provides up to 16 channels (8 stereo pairs) of Network Mix Back™ data from up to eight A360 Personal Mixers
Ethernet One RJ45 connector;
for iOS A360 Display support
LEDs Power On (red); Sync (green)
USB Used for firmware updates
A-Net Cables Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
Unshielded Cat-5e cable may be used on all rear panel connections
Output Voltage for Personal Mixers 24VDC, 0.5 amp
Transmitted over the Cat-5e cable
Power Supply Internal, universal switching type, IEC connector
Input Voltage 100-240VAC, 50-60Hz, 300W
Fuse - 250VAC~ T4AL
Dimensions 19" (482.6 mm) wide x 14.25" (362 mm) deep;
2U, 3.5" (88.9 mm) high
Weight 12.0 lbs (5.44 kg)
