From Aviom

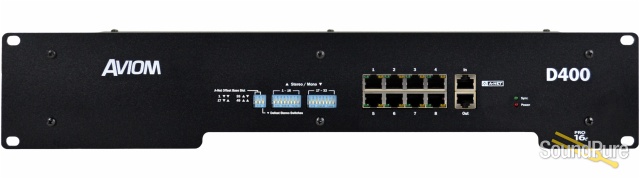

The D400 and D400-Dante A-Net Distributors provide the link between the personal mixing system's inputs and the Personal Mixers, providing DC power and a copy of the A-Net digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.
There are two versions of the D400 product. The standard D400 has an Aviom A-Net input, perfect for using with Aviom's analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.
D400 and D400-Dante Common Specifications
- A-Net Out to Personal Mixers
-
- Eight RJ45 connectors, powered;
- Compatible with A640, A360, A320, and A-16II Personal Mixers
- A-Net Out
-
- Pro16e A-Net;
- RJ45 connector, unpowered
- Supports system expansion and the A-16II, A320, and A360 Personal Mixers
- LEDs
- Power On (red); Network Sync (green)
- Stereo Link
- Two 8-position DIP switch blocks (1-16, 17-32)
- Output Voltage for Personal Mixers
-
- 24VDC, 0.5 amp;
- Transmitted over the Cat-5e cable
- A-Net Cables
-
- Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
- Unshielded Cat-5e cable may be used on all other network connections

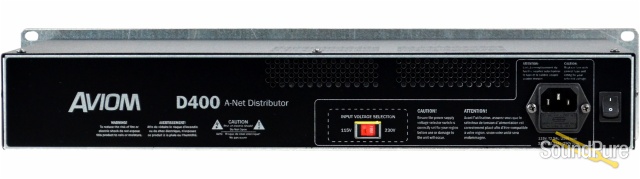

- Power Supply
- Internal, IEC connector
- Input Voltage
- 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
- AC Fuse Types
-
- 115V range: T2.5AL/250V, slow-acting
- 230V range: T1.25AL/250V; slow-acting
- Dimensions
- 19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high
- Weight
- 12.0 lbs (5.44 kg)
D400-Dante Specifications
- Dante Interface
-
- 32 channels from a Dante network
- (44.1/48kHz Sample Rate only)
- Dante Primary I/O
- RJ45 connector
- Dante Secondary I/O
- RJ45 connector
- Dante LEDs
-
- Network Activity (green);
- 1GB Network Connection Active (yellow)
- Static IP support
- Yes
- AES67 Support
- Yes
D400 A-Net Distributor Specifications
- A-Net Input
-
- Pro16e Aviom A-Net;
- RJ45 connector
- A-Net Offset Base Slot
- 3-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
