From Aviom
The Aviom16/o-Y1 A-Net Card provides a direct digital interface between Yamaha® digital mixer products and Aviom's Pro16® Series, including the A640, A360, A320, and legacy A-16II Personal Mixers*, A-Net distributors, and output modules.
The Y1 card eliminates the need for an analog input module when creating a monitor mixing or audio distribution system. Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the Yamaha console user interface to the Y1 card as needed. Each Y1 card installed in a console's MY expansion slot supports up to 16 channels.
Product Details
The Aviom16/o-Y1 card provides a direct digital interface between Yamaha digital products that use the MY-format expansion slots and Aviom's Personal Mixers. The Y1 card becomes the head end to the monitoring system, simplifying system setup. Just connect a Cat-5e cable from the card to an A-Net Distributor and some Personal Mixer and you've created a monitor system that can be expanded as needed with additional personal mixers, output modules, and A-Net distributors.
In systems using the A640, A360, or A320 Personal Mixer, two or more console cards can be combined to create a network up up to 64 sources. Just add the SB4 System Bridge to combine the console cards' A-Net outputs and connect the SB4 output to a D800 or D800-Dante A-Net Distributor. The D800 will merge the data into a single A-Net stream.
- A-Net Pro16 Output
-
- 16 channels of A-Net digital data;
- 8 channels on PM1D
- Interface Format
- Yamaha mini-YGDAI (MY) Expansion Card
- Maximum Expansion
- Limited only by the number of available MY expansion slots in the digital mixer
- Sample Rate
- 44.1kHz to 48kHz, +/-10%
- Digital Conversion
- 24-bit
- A-Net Output
- A-Net Out: 1; EtherCon® RJ45 connector

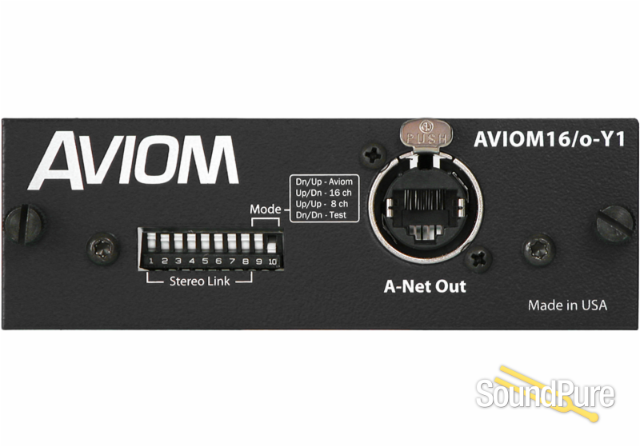

- DIP Switch
-
- Switch 1-8: Stereo Link on/off
- Switch 9-10: A-Net mode
- A-Net Modes: 8-channel, 16-channel, Aviom, Test
- Default is switch 9 up, 10 down
- A-Net Pro16
-
- A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable
- use unshielded Cat-5e UTP (or better) cable;
- max. length 500 feet (150m) between devices
- Latency
- <0.880 msec (measured from analog input to analog output)
- Power Supply
- none required; uses Yamaha host device as source of power
- Dimensions
- 4.75" (120.7 mm) wide x 6.25" (158.8 mm) deep; 1.5" (38.1 mm) high
- Weight
- 0.8 lbs (0.36 kg)
- Options
-
- SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable (requires D800 or D800-Dante A-Net Distributor)
