Inputs, preamps, and outputs
Analog inputs
- Two combo mic/instrument/line connections (XLR and 1/4") via breakout cable
-
- Combination line inputs: balanced, +20 dBu max
- Mic/instrument inputs: +20 dBu/+14 dBu max
Mic preamps
- Two mic preamps
-
- Gain: Up to 75 dB
- EIN: 128 dB (unweighted) @ 60 dB, 150 Ohm input
- Max input level: +20 dBu
- Input impedance: 3K Ohm
Hi-Z
- Max input level
-
14 dBu
- Input impedance
-
>2M Ohm
Analog outputs
- Four analog outputs
-
- Two 1/4" balanced line/speaker outputs via breakout cable (+20 dBu max output level)
- One built-in 1/4" stereo headphone output
Features
Connections

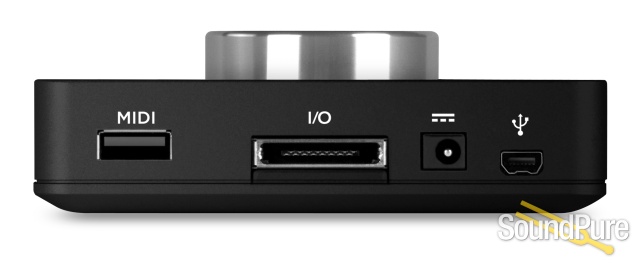

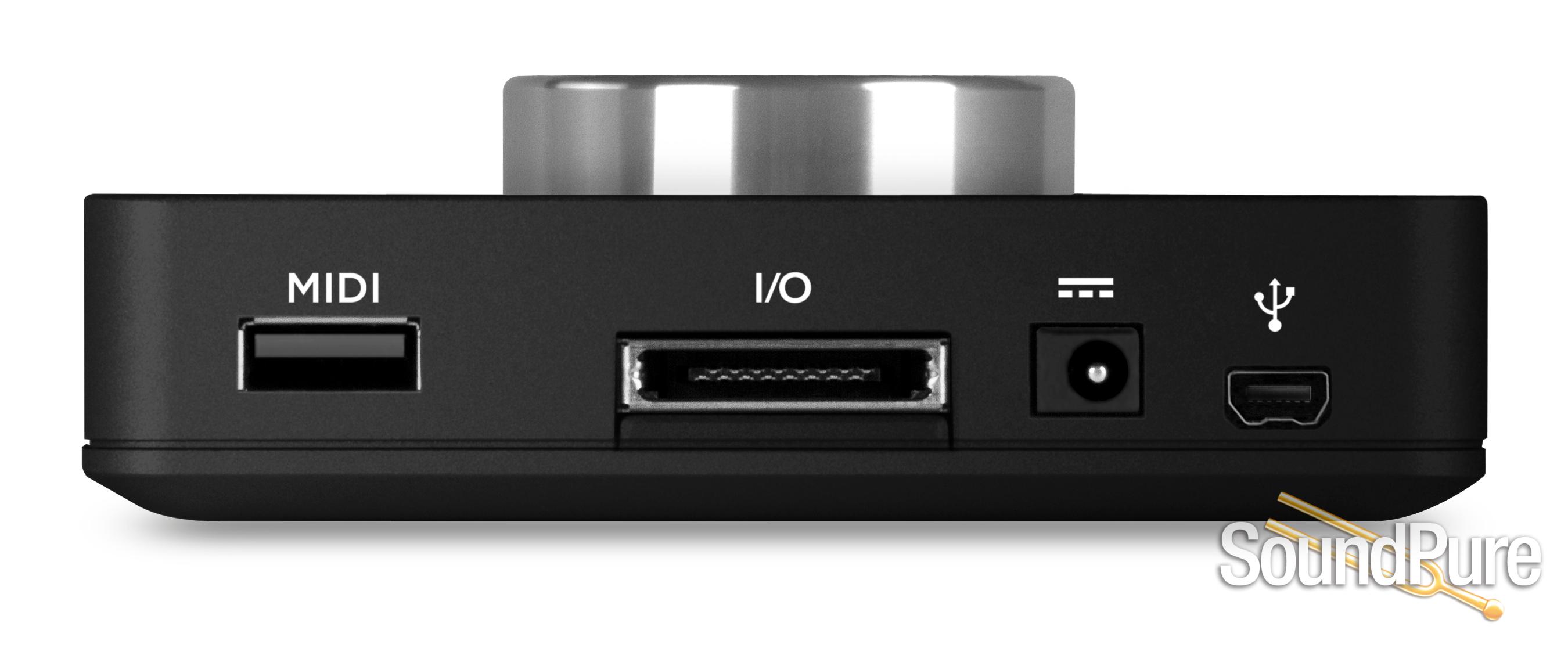

High-speed USB 2.0—For connecting to a Mac or Windows-based computer
MIDI I/O (USB-A type connector)—For connecting a CoreMIDI-compatible keyboard, synth, or DJ controller
Max audio resolution
24-bit/192 kHz
A/D conversion
- Max input level (+4 dBu ref)
-
+20 dBu
- Max input level (-10 dBV ref)
-
+6 dBV
- Input impedance
-
5K Ohm
- Frequency response (20 Hz–20 kHz)
-
> +/-0.2 dB @ 44.1 kHz
- Relative THD + N
-
-106 dB @ 96 kHz
- Dynamic range
-
114 dB, A-weighted
D/A conversion
- Max output level (+4 dBu ref)
-
+20 dBu
- Max output level (-10 dBV ref)
-
+6 dBV
- Line output impedance
-
90 Ohm
- Max headphone level output
-
19 dBu
- HPH output impedance
-
30 Ohm
- Frequency response (20 Hz–20 kHz)
-
> +/- 0.05 dB @ 44.1 kHz
- Relative THD + N
-
-113 dB @ 96 kHz
- Dynamic range
-
123 dB, A-weighted
Phantom power
48V, selectable on analog inputs
Soft Limit
Selectable on analog inputs
Phase invert
Selectable on analog inputs
Low-latency monitoring
Complete input/output control with Pro Tools IO Control software (works on Mac and Windows)

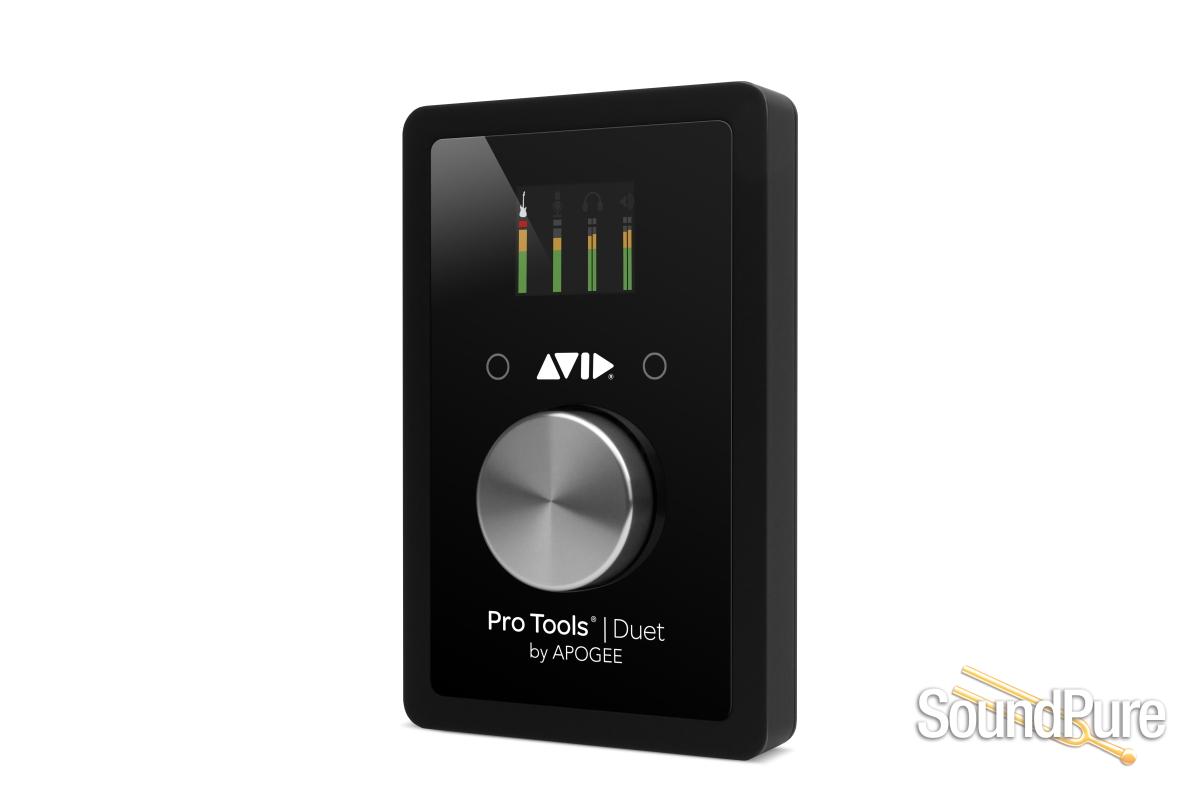

Control knob
Multifunction controller enables you to select functions and set input and output levels
Meter display
Full color, high-resolution OLED display for viewing input and output levels and settings
Touchpads
- Two configurable top-panel touchpads enable you to
-
- Mute speakers, headphones, or all outputs
- Dim speakers, headphones, or all outputs
- Sum to mono speakers, headphones, or all outputs
- Assign headphones to outputs 1-2, 3-4, or low-latency mixer
- Clear meters
General
Dimensions (W x D x H)
4 x 6.3 x 1.5 in (10.2 x 16 x 3.8 cm)
Weight
1.1 lb (0.5 kg)
Power
USB bus-powered on Mac; DC power supply included for PC use
