Avid MBOX Studio USB Audio Interface  From Avid

Bring professional recording power to your personal studio.

Avid

$899.00

"Experience the Difference"

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $20/mo.

What We Think

Plug in and play right away with Pro Tools Studio, MBOX Ignition Pack, and more. Whether making beats and parts with virtual instruments or connecting real ones to your computer for recording, you have a massive collection of tools, plugins, instruments, loops, and samples ready for you to explore, get inspired, and keep you in your creative zone. Plus, get three months of recording and mixing training from Secrets of the Pros.

Manufacturer's Description from Avid

MBOX Studio is more than the simple USB audio interface of years past; it expands and accelerates your workflow. Map its buttons to access your favorite functions fast. Jam with your iPhone over Bluetooth. Record voiceovers and design sound for picture. Podcast and live stream with Loopback mixing. Even use it as a standalone monitor controller!

MBOX Studio is designed with only the highest quality components, preamps, and audio converters in its class, enabling you to capture and mix up to 24-bit, 192 kHz audio from input to output. Variable Z opens up a whole range of tonal options. And with built-in real-time EQ, delay, and reverb, plus independent cue mixing, you can deliver your best performances with low-latency tracking.

Easily create, record, edit, and mix music, plus podcast and live stream, without technology getting in the way.

Access a full range of functions right from the interface to keep your creativity flowing

Capture and mix music in pristine sound quality with four mic preamps and premium convertors, with the ability to  connect eight mics

Record with mics, instruments, effects, and more with 21 x 22 simultaneous I/O.

Avid

About Manufacturer

From award-winning producers, of music and film, to producers of personal at home productions, Avid creates technology that people use for their music to be heard or videos to be seen on any platform. The shows, commercials, and news programs you watch on TV. The entertaining video and film stories you see on the web and on the big screen.  The personal audio and video treasures that people make at home to preserve their favorite moments in life. Avid has a myriad of products to fill your production needs.

Specifications

System requirements - ComputerAvid-qualified USB-equipped Mac or Windows-based computer

Simultaneous I/O21 x 22

Audio resolution24-bit, 44.1/48 kHz 21 x 22; 24-bit, 88.2/96 kHz 17 x 18; 24-bit, 176.4/192 kHz 8 x 10

Built-in DSPAvid FX—EQ, Delay, Reverb, Tuner

Mic preamps4

Phantom power+48V switch

Form factorDesktop interface

Dimensions (H x W x D)4.1 x 11.3 x 8.9 inches (105.2 x 288 x 225.3 mm)

Weight6.1 lbs (2.8 kg)

Computer connectivityUSB-C 2.0 (includes USB-A adapter)

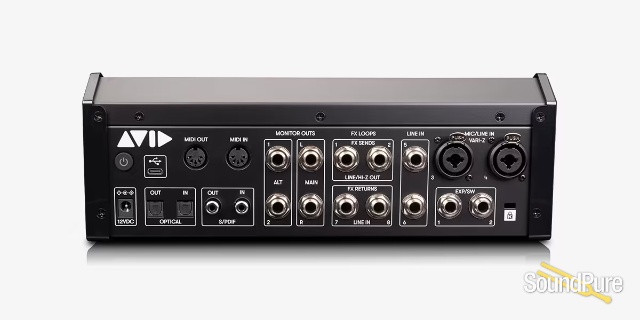

Inputs and outputs

Analog inputs

2 combo mic/line/instrument inputs with Variable Z (impedance) on the front panel (inputs 1–2)

2 combo mic/line inputs with Variable Z on the back panel (inputs 3–4)

4 line inputs (inputs 7–8 shared with FX Returns; can also be used to connect four dynamic mics, which don't require phantom power)

Analog outputs

2 stereo monitor outputs (Main and Alt)

2 headphone outputs

2 Hi-Z switchable FX Loops Sends

1 Hi-Z out to amp (mirrors FX Send 2)

Digital inputs

1 Optical input (8 channels of ADAT or 2 channels S/PDIF)

1 coaxial S/PDIF input

Digital outputs

1 Optical output (8 channels of ADAT or 2 channels S/PDIF)

1 coaxial S/PDIF output

Other I/O

MIDI I/O

2 footswitch/expression pedal inputs

A/D conversion

Mic preamps

Max Input Level: 14 dBu

Gain Range: 60 dB

Dynamic Range: 112 dB

THD+N: 0.001%

EIN: -129 dB (A-weighted)

Frequency Response: 20 Hz–20 kHz, ±0.125 dB

Line inputs

Max Input Level: 14 dBu

Gain Range: 60 dB

Dynamic Range: 112 dB

THD+N: 0.001%

Frequency Response: 20 Hz–20 kHz, ±0.125 dB

Instrument inputs

Max Input Level: 14 dBu

Gain Range: 60 dB

Dynamic Range: 108 dB

THD+N: 0.004%

Frequency Response: 20 Hz–20 kHz, ±0.125 dB

D/A conversion

Line outputs

Max Output: 19 dBu

Dynamic Range: 110 dB

THD+N: 0.002%

Frequency Response: 20 Hz–20 kHz, ±0.125 dB

Monitor outputs

Max Output: 19 dBu

Dynamic Range: 110 dB

THD+N: 0.0012%

Frequency Response: 20 Hz–20 kHz, ±0.125 dB

Headphone outputs

Dynamic Range: 102 dB

Frequency Response: 20 Hz–20 kHz, ±0.2 dB

Output Power: 120 mW > 32 Ohm

Hi-Z output (reamp)

Dynamic Range: 103 dB

THD+N: 0.002%

Frequency Response: 20 Hz–20 kHz, ±0.3 dB
