From Austrian Audio

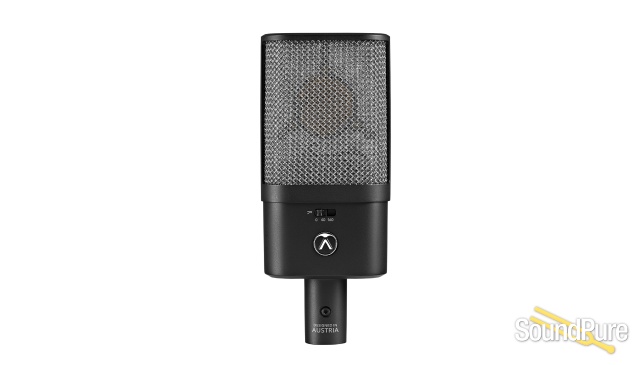

With the OC16, Austrian Audio introduces a brand-new microphone in the “Open Condenser” large-diaphragm series equipped with Open Acoustics technology.

The transparent and natural sound of OC microphones, which has been highly praised by the press and users, is the result of the combination of the patented CKR capsule and the “Open Acoustics” design approach developed by Austrian Audio.

Equipped with the handmade in Vienna CKR6 capsule, the OC16 is an extremely flexible all-rounder and can be used on a wide variety of instruments: From drums to electric and acoustic guitars, pianos, wind and string instruments to vocals.





Key Features

Handcrafted CKR6 ceramic capsule

handmade in Vienna, like the CKR12 capsule, but with single diaphragm



Rugged Design

Metal housing, cap, and grille



High precision cardioid pattern

directional characteristic



Switchable high pass filter

40 Hz (2nd order), 160 Hz (2nd order)





CKR6 Ceramic Capsule

Making Passion Heard

We bring passion to everything we do, and nobody brings more than our engineering team. Every CKR6 ceramic capsule is handmade in-house at our facility in Vienna and now we are developing the next generation of transducer and microphone builders to serve our expanding customer-base.



Directional characteristics:
Single
Impedance:
275 Ω
Polar pattern:
Cardioid
Load impedance:
> 1 kΩ
Frequency range:
20 Hz - 20 kHz
Supply voltage:
48 V (< 2.2mA)
Sensitivity:
11 mV/Pa
Main Connector:
XLR 3 pin
Equivalent noise level:
14 dB SPL (A)
Max SPL:
148 dB SPL
Dimensions:
157 x 66 x 34 mm
Weight:
335 g
Analog Low Cut filter:
40 Hz, 160 Hz
