Sound Pure's Take
Condition: Used, Excellent
From Audio-Technica
With its transformer-coupled output, the AT5047 maintains a constant load output impedance, even when capturing sources at extreme SPL, resulting in a stable relationship between the mic and a mic preamp or console input.
Each AT5047 microphone is hand-assembled and individually inspected to guarantee the highest quality.
Four exquisitely matched ultra-thin diaphragms function together as Audio-Technica’s largest-ever element for low noise with exceptional transient response.
FEATURES
Exceptionally wide dynamic range captures the full, expressive character of instruments and voices – from the caress of drum brushes to powerful vocal performances
Four rectangular diaphragms (2 micron) function together to provide a combined surface area twice that of a standard one-inch circular diaphragm
Discrete components carefully selected and optimized for maximum performance and compatibility with standalone microphone preamps and console inputs
Transformer-coupled output provides smooth sonic character
Hand assembled and inspected for 100% quality control
Advanced internal shock mounting decouples the capsule from the microphone body
Elegant, durable housing of aluminum and brass
Included advanced-design custom AT8480 shock mount provides superior isolation

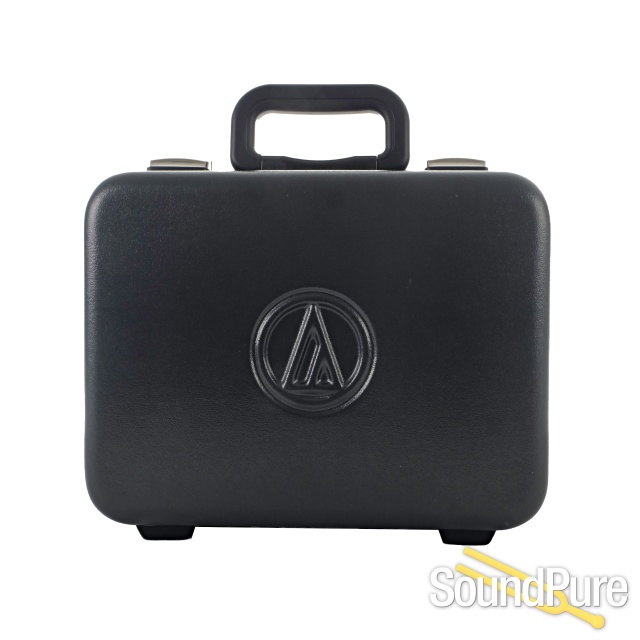

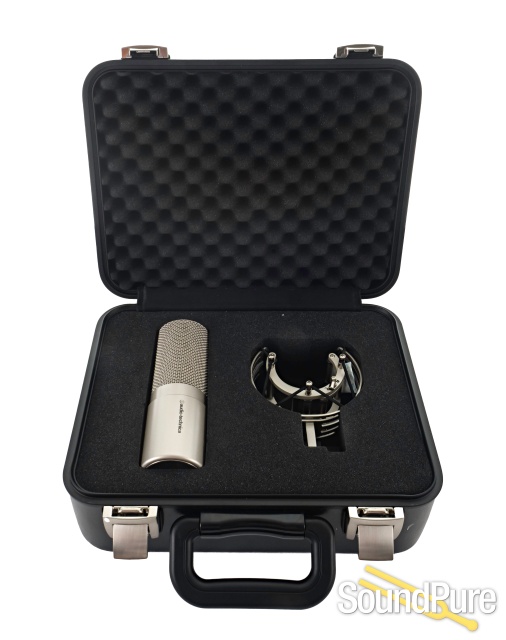

Custom hard-shell carrying case with die-cut foam compartments offers protection during storage and transport
- Element
- Fixed-charge back plate, permanently polarized condenser
- Polar Pattern
- Cardioid
- Frequency Response
- 20 – 20,000 Hz
- Open Circuit Sensitivity
- -29 dB (35.5 mV) re 1V at 1 Pa
- Maximum Input Sound Level
- 148 dB SPL, 1 kHz at 1% T.H.D
- Noise
- 6 dB SPL
- Dynamic Range
- 142 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio
- 88 dB, 1 kHz at 1 Pa
- Phantom Power Requirements
- 48V DC, 2.7 mA typical
- Weight
- 592 g (20.9 oz)
- Dimensions
- 165.3 mm (6.51'') long, 57.0 mm (2.24'') maximum body diameter
- Output Connector
- Integral 3-pin XLRM-type
- Accessories Included
- AT8480 shock mount for 5/8"-27 threaded stands; 3/8" to 5/8" stand adapter; protective carrying case
- Audio-Technica Case Style
- R10
