Audio-Technica AT5045P  From Audio-Technica

Cardioid Condenser Instrument Microphone

Audio-Technica

$2,499.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

No Sales Tax Outside North Carolina

Contact us for up-to-date delivery estimate.
Payments as low as $56/mo.

Manufacturer's Description from Audio-Technica

The AT5045P is two of Audio-Technica’s premier condenser instrument microphones in a stereo pair pack. Offering the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body, the AT5045, despite the space limitations imposed by its housing,boasts Audio-Technica’s largest single diaphragm. The instrument microphone’s circuitry has been honed to the essentials, allowing the AT5045 to achieve an unprecedented dynamic range that’s one of the widest of any microphone on the market.



100% quality control

Every AT5045 is hand assembled and individually inspected for 100% quality control. Each microphone is enclosed in an elegant housing of aluminum and brass with a high-quality gray finish for durability and low reflectivity.



Discrete components have been selected for optimized performance. The circuitry and capsule assembly are mounted as a single block within a floating internal shock mount, effectively decoupling the capsule from the microphone body for excellent vibration isolation. In fact, every aspect of the microphone has been carefully considered to minimize any negative effects on the audio signal.

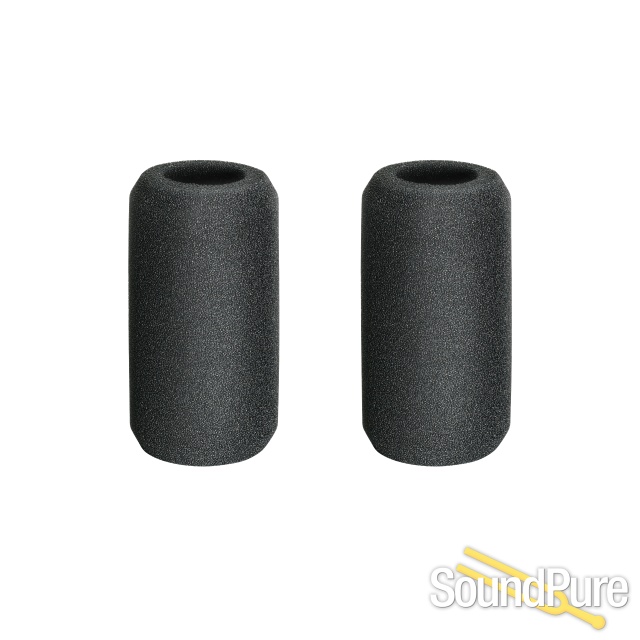

The AT5045P stereo pair pack comes with two AT5045 instrument mics, two of Audio-Technica’s innovative AT8481 isolation clamps, two AT8165 windscreens and a protective carrying case that holds a both AT5045 microphones.



FEATURES

-Audio-Technica’s premier studio condenser instrument microphone
-Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
-Side-address, stick-design microphone with more diaphragm surface area than most traditional large diaphragm side-address microphones
-Discrete components carefully selected for optimized performance
-Transformer-coupled output is optimized to provide smooth sonic character
-Exceptionally low noise with high-SPL capability
-Hand built and inspected for 100% quality control
-Advanced internal shock mounting decouples the capsule from the microphone body
-Elegant, durable housing of aluminum and brass
-Innovative isolation clamp provides secure mounting, versatile positioning and effective dampening of unwanted mechanical noise
-Available as a single microphone (AT5045) or as a stereo pair (AT5045P)

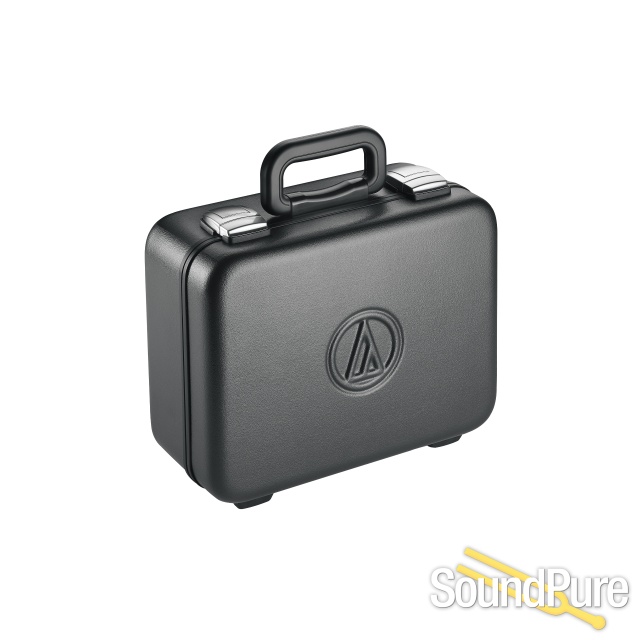

-Custom hard-shell carrying case with die-cut foam compartments offers protection for one or two microphones
Audio-Technica

About Manufacturer

Audio-Technica has been dedicated to advancing the art and technology of electro-acoustic design and manufacturing since 1962. From a beginning in state-of-the-art phono cartridges, A-T has expanded over the years into high-performance headphones, microphones, mixers and electronic products for home and professional use. In each new area the goal has been to create innovative, problem-solving products. The results of these engineering and production efforts can be seen in the effective use of A-T products in a broad spectrum of applications. Audio-Technica microphones, for example, are found in daily use in major broadcast and recording studios, and relied upon by top touring musicians. A-T mics are chosen for important installations and major events, such as the U.S. House of Representatives, the U.S. Senate, the Super Bowl, World Cup Soccer and the Olympics. Whether in the home, or in schools and universities, boardrooms, council chambers or places of worship, Audio-Technica products are providing superior performance and exceptional value worldwide.

Specifications

ELEMENT Fixed-charge back plate,
permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20 – 20,000 Hz
OPEN CIRCUIT SENSITIVITY –35 dB (17.7 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 149 dB SPL, 1 kHz at 1% T.H.D.
NOISE 8 dB SPL
DYNAMIC RANGE (typical) 141 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 86 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 1.4 mA typical
WEIGHT 197 g (7.0 oz)
DIMENSIONS 177.0 mm (6.97'') long, 25.0 mm (0.98'') maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8481 isolation clamp for 5/8"-27 threaded stands; AT8165 windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE R11
Click on the chart to view the larger image
POLAR PATTERN
POLAR PATTERN
FREQUENCY RESPONSE
FREQUENCY RESPONSE
