$899.00

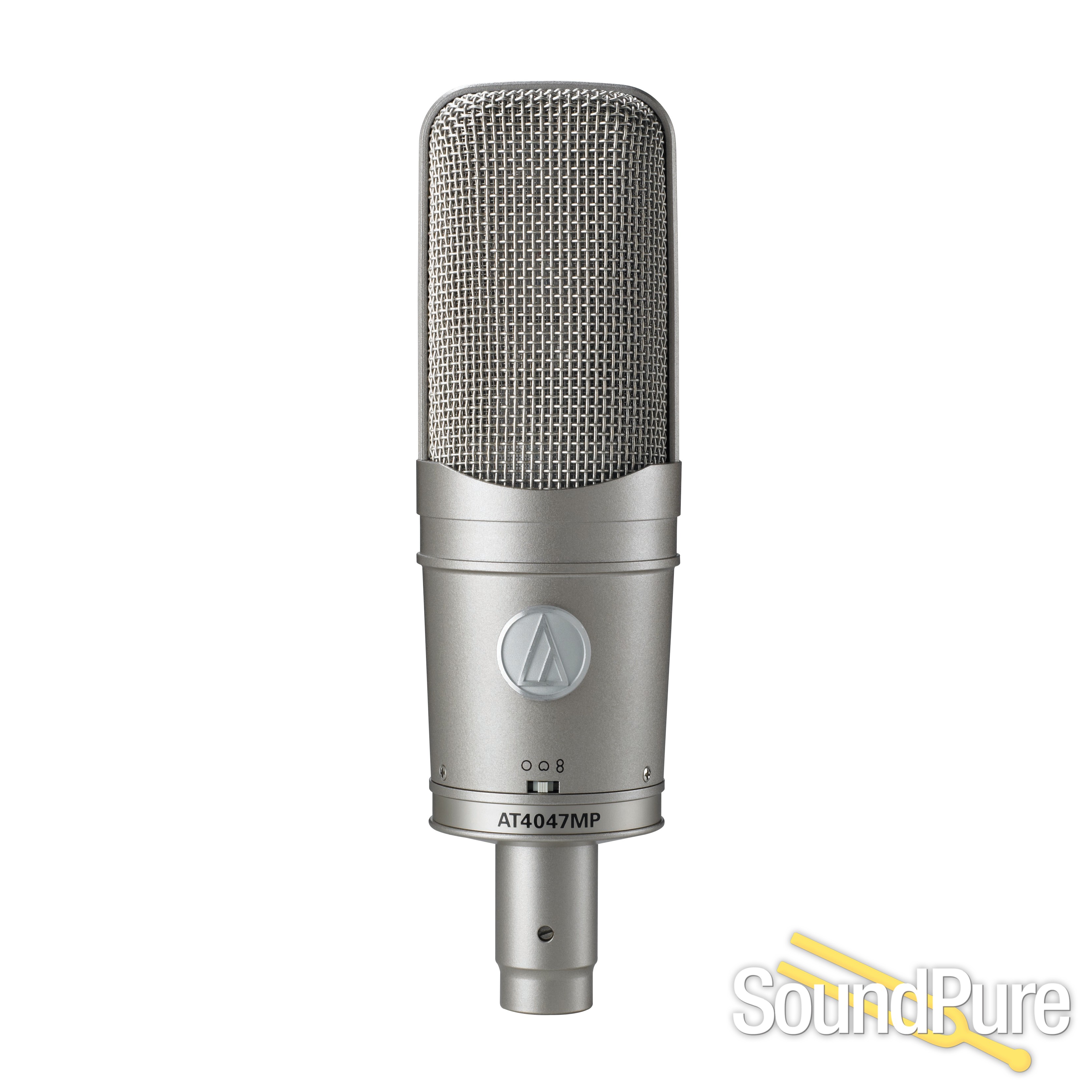

Audio-Technica’s AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement

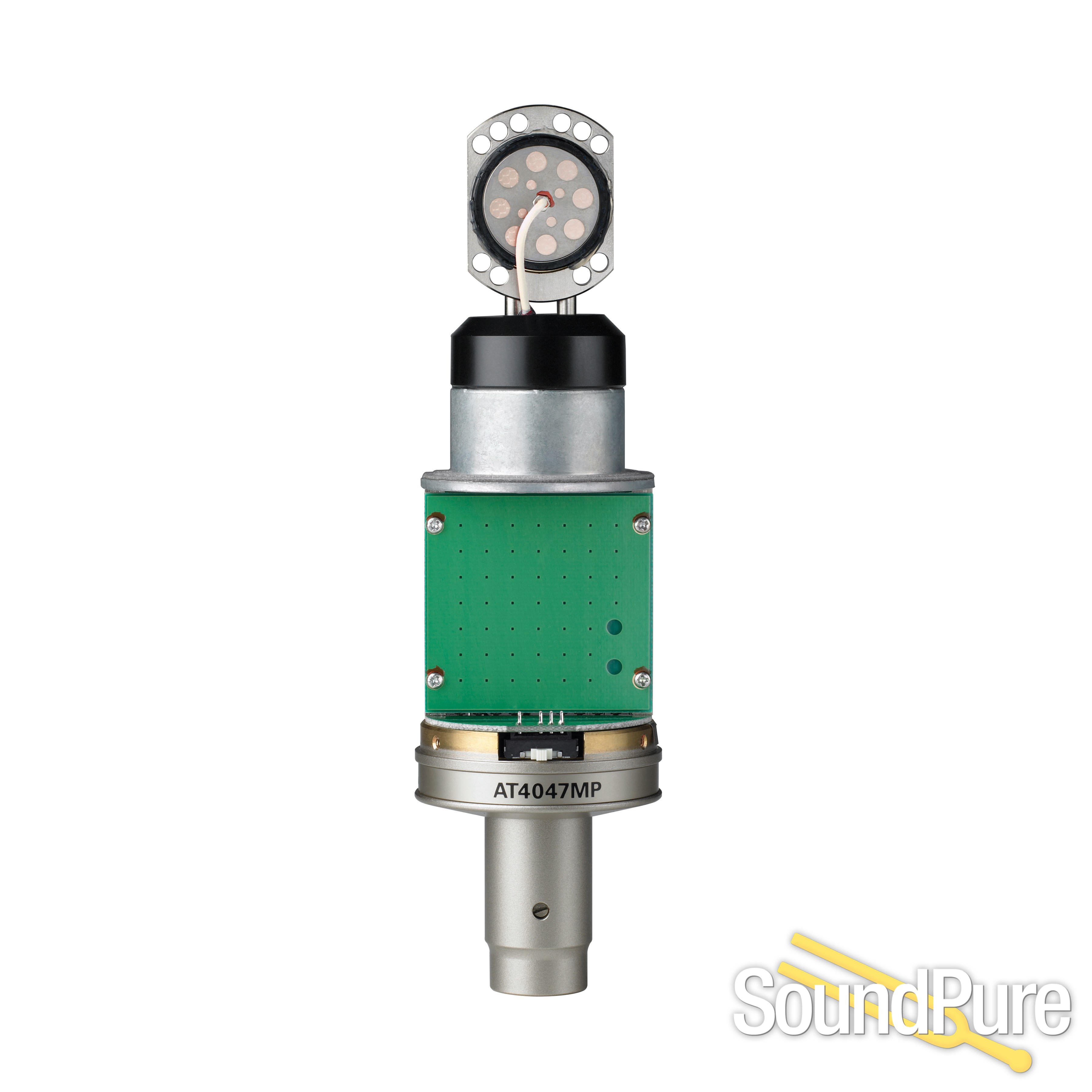

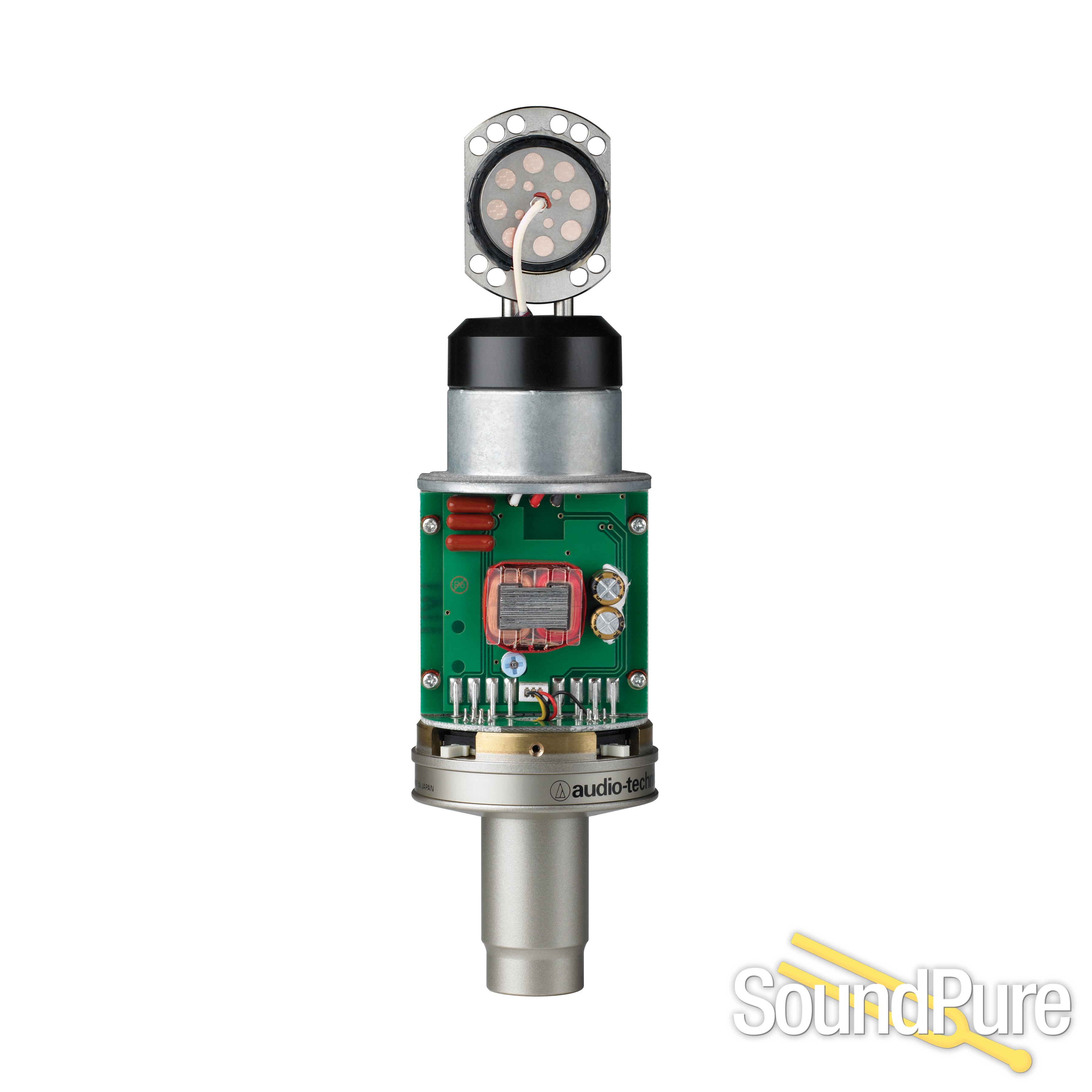

Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
Exceptionally low self-noise, wide dynamic range and high SPL capability
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Vintage silver-matte finish on microphone and shock mount
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

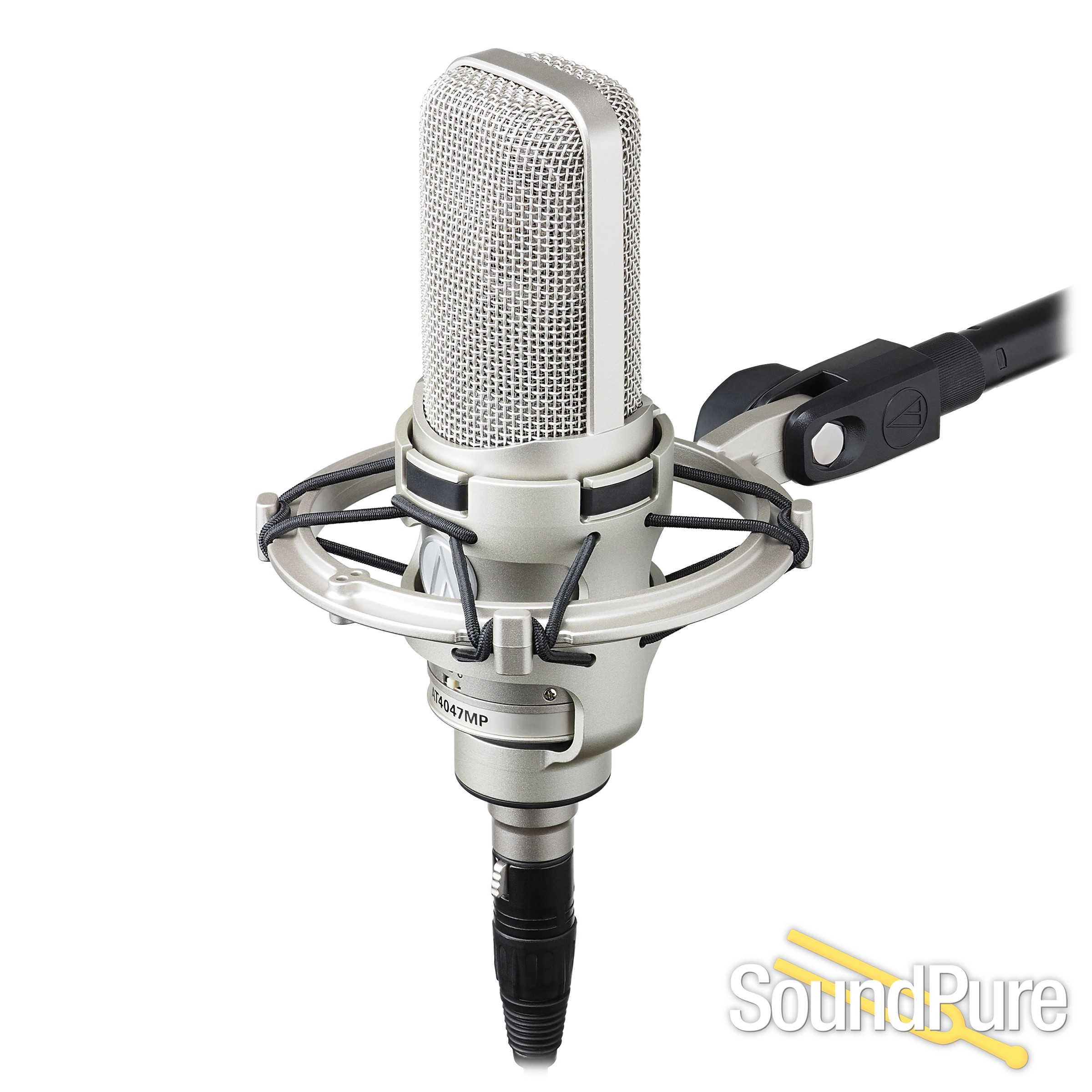

Custom shock mount provides superior isolation
Integral 80 Hz high-pass filter switch and 10 dB pad switch
Certified by the METAlliance (Music Engineering and Technology Alliance)
Audio-Technica has been dedicated to advancing the art and technology of electro-acoustic design and manufacturing since 1962. From a beginning in state-of-the-art phono cartridges, A-T has expanded over the years into high-performance headphones, microphones, mixers and electronic products for home and professional use. In each new area the goal has been to create innovative, problem-solving products. The results of these engineering and production efforts can be seen in the effective use of A-T products in a broad spectrum of applications. Audio-Technica microphones, for example, are found in daily use in major broadcast and recording studios, and relied upon by top touring musicians. A-T mics are chosen for important installations and major events, such as the U.S. House of Representatives, the U.S. Senate, the Super Bowl, World Cup Soccer and the Olympics. Whether in the home, or in schools and universities, boardrooms, council chambers or places of worship, Audio-Technica products are providing superior performance and exceptional value worldwide.
ELEMENT | Externally-polarized (DC bias) condenser |
POLAR PATTERNS | Cardioid, Omnidirectional, Figure-of-eight |
FREQUENCY RESPONSE | 20-18,000 Hz |
LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave |
OPEN CIRCUIT SENSITIVITY | -42 dB (7.9 mV), re 1V at 1 Pa |
IMPEDANCE | 100 ohms |
MAXIMUM INPUT SOUND LEVEL | 155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal) |
NOISE | 14 dB |
DYNAMIC RANGE (typical) | 141 dB, 1 kHz at Max SPL |
SIGNAL-TO-NOISE RATIO | 80 dB, 1 kHz at 1 Pa |
PHANTOM POWER REQUIREMENTS | 48V DC, 3.4 mA typical |
SWITCHES | Polar selection; Flat, roll-off; 10 dB pad (nominal) |
WEIGHT | 524 g (18.5 oz) |
DIMENSIONS | 188.0 mm (7.40") long, 53.4 mm (2.10") maximum body diameter |
OUTPUT CONNECTORS | Integral 3-pin XLRM-type |

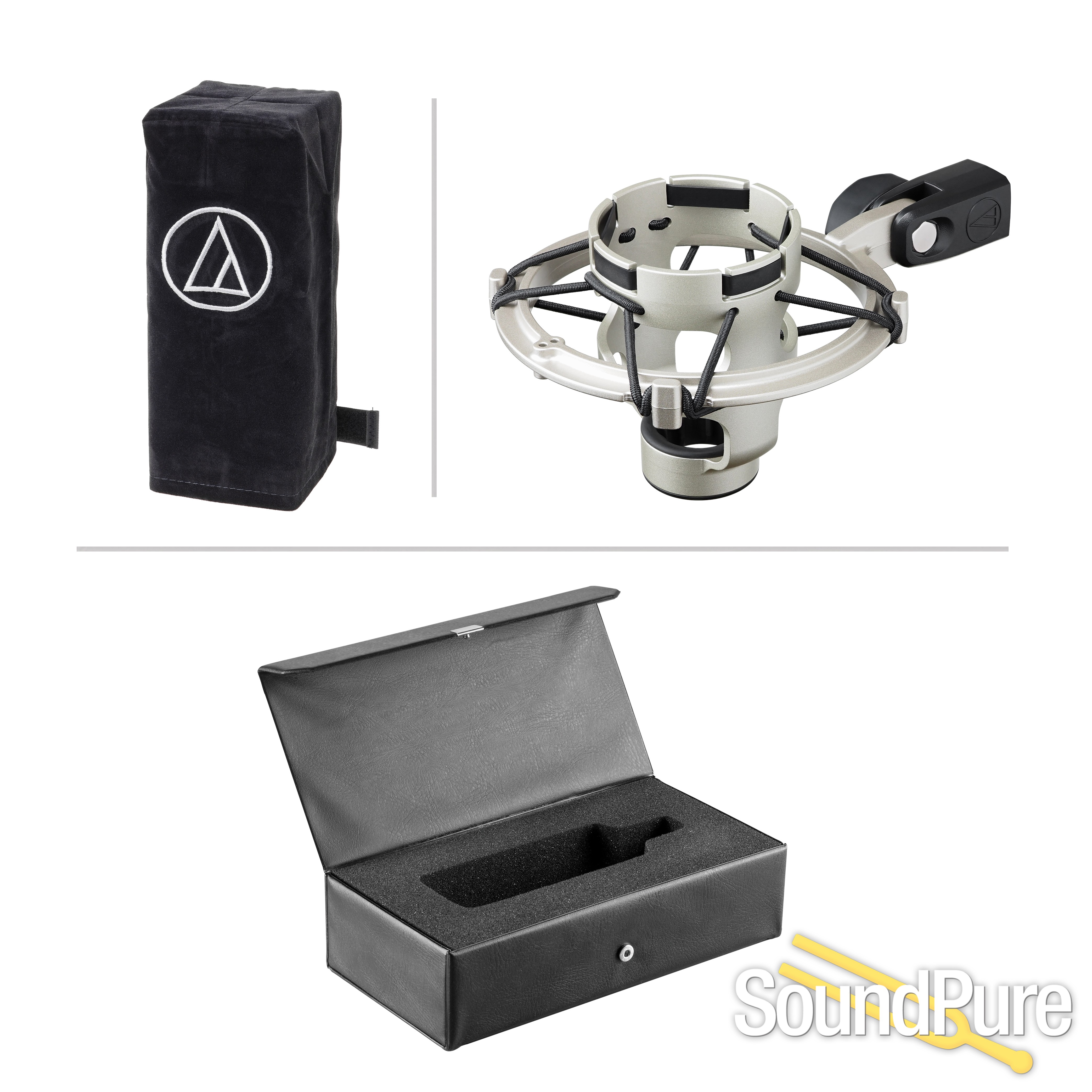

ACCESSORIES FURNISHED | AT8449a/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
AUDIO-TECHNICA CASE STYLE | R1 |
Click on the chart to view the larger image |
POLAR PATTERN CARDIOID |
POLAR PATTERN OMNIDIRECTIONAL |
POLAR PATTERN FIGURE-OF-EIGHT |
FREQUENCY RESPONSE CARDIOID |
FREQUENCY RESPONSE OMNIDIRECTIONAL |
FREQUENCY RESPONSE FIGURE-OF-EIGHT |
