Sound Pure's Take

Condition: Used, Excellent

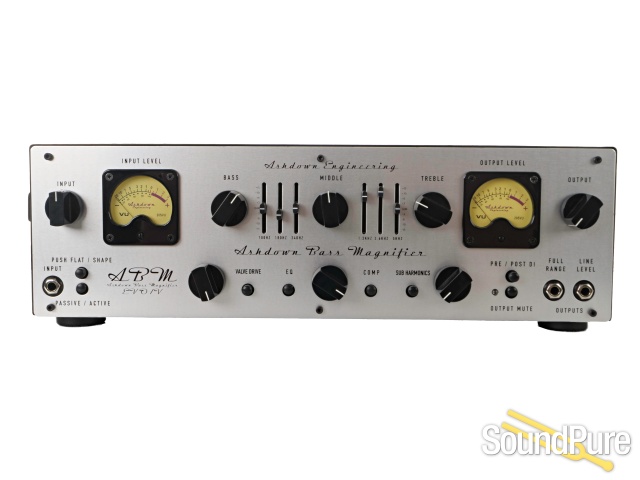

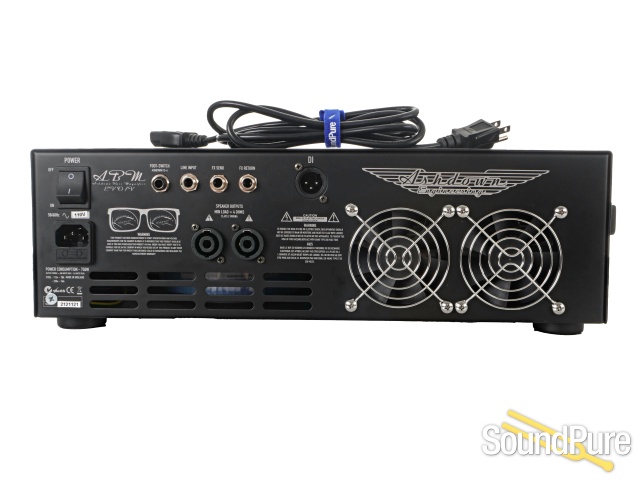

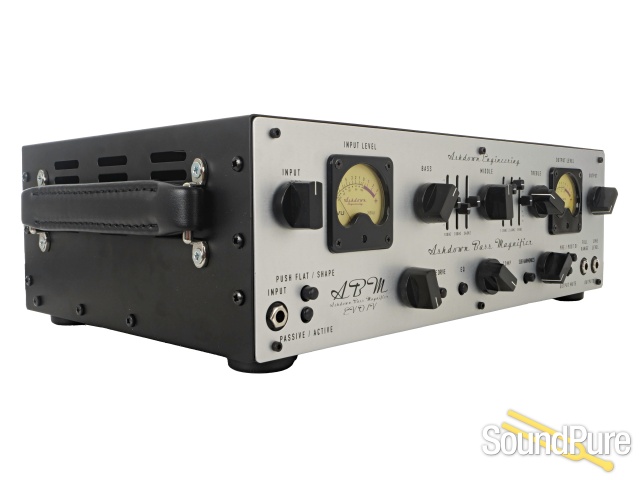

Engineered for high-power bass amplification, the Ashdown ABM600 Dual VU Meter delivers 600 watts into a 4-ohm minimum load. Weighing 12.5 kg with dimensions of 135 mm × 474 mm × 320 mm, its hybrid architecture combines a solid-state power section with a single 12AX7 preamp tube. Input options include High (10kΩ, 150mV) and Low (10kΩ, 300mV–40V p-p) instrument jacks alongside a 22kΩ line input. Audio performance yields a frequency response of –3dB at 17Hz–30kHz. I/O connectivity comprises four Jack/Speakon speaker outputs, a 600Ω balanced DI output (0dBu nominal), a 22kΩ tuner output, and a 22kΩ effects loop (send/return at 0dBu nominal), operating on 115–230V mains power.

From Ashdown Engineering

The ABM 600 EVO IV Dual VU Rack Head delivers 600 watts of stage-ready power in a rugged 3U steel chassis, complete with Ashdown's signature dual illuminated VU meters. Its class-leading preamp features Variable Valve Drive Plus for everything from clean warmth to driven grit, while the 9-band EQ, one-knob compressor, and Sub-Harmonic Generator give you precision control and huge low-end authority. Built for touring reliability with pro-grade connectivity, the ABM 600 is an industry-standard amp head trusted by working bassists worldwide.

Power Output
600 Watts
Power Requirement
115–230 Volts
Output Tubes
1 × 12AX7
Speaker Outputs
4 × Jack/Speakon outputs
High Instrument Input
Impedance 10kΩ, input range 150mV
Low Instrument Input
Impedance 10kΩ, input range 300mV – 40V p-p
Line Input
Impedance 22kΩ, input level 0dBu nominal
DI Output
600Ω balanced, Level 0dBu nominal
Tuner Output
Impedance 22kΩ, Level 0dBu nominal
Effects Send
Impedance 22kΩ, Level 0dBu nominal
Effects Return
Impedance 22kΩ, input level 0dBu nominal
Frequency Response
–3dB @ 17Hz – 30kHz
Impedance
Minimum 4 Ohms per side
H × W × D (mm)
135 × 474 × 320
Weight
12.5 kg
Sound Pure Studios Control Room A — Durham, NC

Sound Pure Studios · Durham, NC

Come hear it in our control rooms.

Sound Pure is a working studio in Durham, NC — a 1,000 sq ft live room and two pro control rooms. Book a session to audition gear in a world-class acoustic space before you buy.

$999
