Sound Pure's Take
How do you improve upon one of the best sounding multi-channel converters on the market? That was the goal for Apogee’s exciting new Symphony I/O MKII, which features a sleek new touch screen display, a standard Thunderbolt connection option, and further improved converter technology. Additionally, Apogee plans to add connectivity options through HD and SoundGrid expansion cards later this year, giving the Symphony system even more compatibility with a huge amount of existing systems. One of our absolute favorite improvements to the Symphony design is a quieter cooling fan. The fan on the previous model was known to have occasional noise issues when recording quieter, more intimate sources in the same room as the Symphony system, so this improvement is sure to make the lives of home-studio engineers after pro-level converter technology much easier!
From Apogee Digital
NOW OPTIMIZED FOR ATMOS
Mixing for Dolby Atmos and other immersive 3D formats is rapidly becoming an essential skill for the modern creator and engineer. As streaming services highlight immersive content and record companies require immersive audio deliverables, you may be asking yourself “how do I get started”?

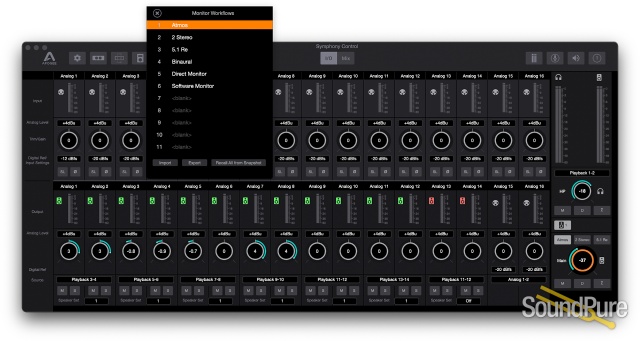

With Symphony I/O Mk II Thunderbolt’s Monitor Workflows, you’ll effortlessly configure and operate your monitoring system for Dolby Atmos, Sony 360 Reality Audio and other immersive audio systems with control of up to 32 Speaker outputs.
Optimize Your Workflow
Within each Monitor Workflow, you design the audio flow from your DAW outputs, Symphony internal mixers and hardware inputs to your expanded speaker array. Use these features to customize your Workflow:
- Source Routing - Choose Playback (from your DAW), Mixer or Hardware inputs sources for each Speaker output pair.
- Speaker Sets - Create up to 3 Speaker Sets, then instantly toggle between them from Symphony Control software
- Speaker Level Trim - Creating the perfect level balance between all your speakers
- Speaker Mute/Solo - Resolve issues in your configuration quickly with mute and solo buttons
- Speaker Status Icon- Color coded icons let you see your active speakers at a glance
- Easily Configure and Access up to 16 Monitor Workflows
In the modern production environment, you need to be able to completely reconfigure your monitoring system at the touch of a button. Symphony I/O Mk II allows you to create up to 16 Monitor Workflows, then instantly toggle between them from Symphony Control software, the front panel touchscreen, or the Apogee Control hardware remote.
Plug and Play Atmos with Logic Pro X
Getting started with Dolby Atmos has never been easier using Logic Pro 10.7 and Symphony I/O Thunderbolt! In the past, setting up your Dolby Atmos studio was a multi-day affair, but now it’s plug and play with the latest from Apple and Apogee.
Get Started Right Away
With such flexible monitor controller functionality incorporated at no extra cost for current and future owners, Symphony I/O Mk II Thunderbolt makes the best cornerstone of your Dolby Atmos or other immersive audio studio.
The best sounding Apogee converters and mic preamps ever
- The culmination of 25 years of Apogee's design excellence and experience
- Next generation converter quality
- Refined and updated circuitry with fewer, more advanced components:
- Fewer components means a shorter audio path and more recording clarity and transparency
- Lower converter latency
- More efficient power distribution
- Big Ben built-in with enhanced C777 clocking performance
- Optional mic preamp module
- 8 Mic Preamps
- 4 Hi-Z instrument inputs
- 8 digitally assignable inserts
- 85 dB of gain
- Front panel control of headphone and output levels, and mic preamp gain (mic preamps optional)

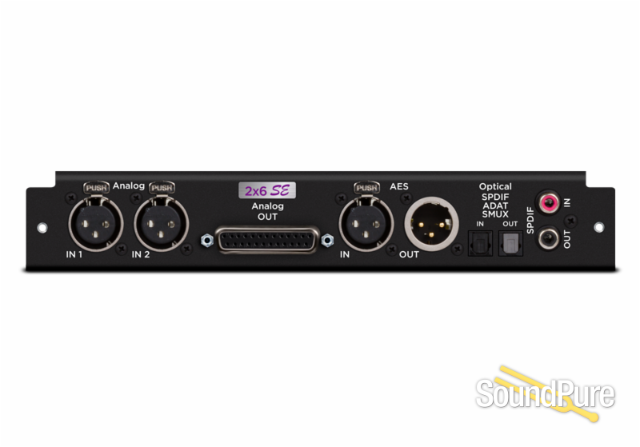

Apogee Symphony I/O Mk II 2×6 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2×6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. We dare you to compare these specifications to our competitors – 2×6 SE’s combined specs outperform just about any AD/DA converter available today.
INPUTS
- Analog IN: 2 balanced inputs on 2 female XLR connectors
- AESIN: Stereo input on 1 female XLR connector
- Optical IN: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- S/PDIF CoaxIN:2 channels, up to 192 kHz on 1 RCA connector
OUTPUTS
- Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
- AES OUT: Stereo output on 1 male XLR connector
- Optical OUT: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector
-
Connection:
- Thunderbolt cable (Sold separately)
Performance:
- 44.1kHz – 192kHz
- Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)
Computer:
- Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
- Operating System: Mac OS 10.9.5 or greater
Control:
- Maestro app (included in software installer) and front panel touchscreen
Compatible Software:
- Logic Pro X
- Any Core Audio application on Mac
