Used · Excellent

Apogee Symphony 8x8 Analog + 8x8 Digital I/O Module - Used — image 1

Apogee Symphony 8x8 Analog + 8x8 Digital I/O Module - Used — image 2

Apogee Symphony 8x8 Analog + 8x8 Digital I/O Module - Used — image 3

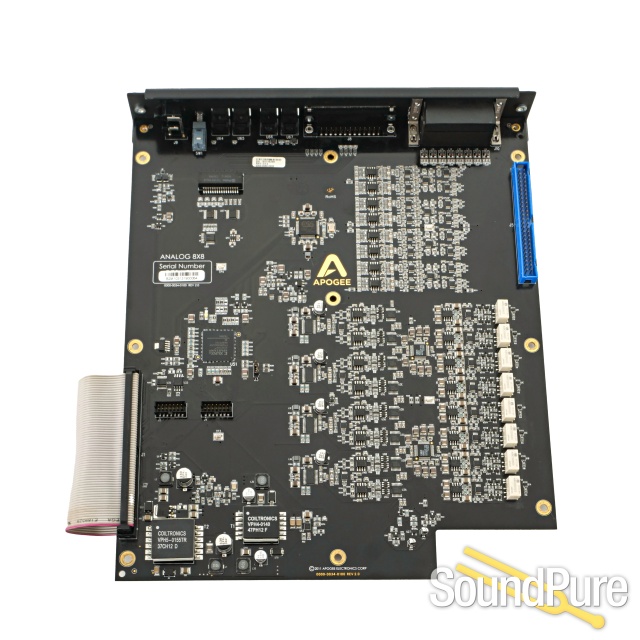

Apogee Symphony 8x8 Analog + 8x8 Digital I/O Module - Used

Add 8 more channels of analog I/O and 8 channels of digital I/O to your existing Symphony I/O System. I/O module for Apogee Symphony, including 8x balanced analog I/O AND 8x AES or optical I/O channel...

Sold — contact us for a similar item.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Try Before You Buy — take it home. Don't commit until you know it's right. Program details →

Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

Sound Pure's Take

With their continually innovative designs and constant push for higher quality audio conversion, Apogee Digital has firmly cemented itself as one of the most recognized and industry-leading companies within the audio conversion world. Their newest flagship converter system, the Symphony I/O, continues their trend of introducing next generation converter technology with a smart and future proof modular design, plus an enhanced level of detail when compared to previous models. The result is a state-of-the-art converter system that is extremely customizable in terms of channel count, offers an very practical feature set, and provides an incredibly open and exciting sound that no other multichannel converter offers.

As mentioned, this is a modular converter system, meaning you have two available module/card slots where you can insert one of six available I/O modules. To ease any option paralysis, Apogee offers the Symphony in four different “out of the box” configurations: a 2 in 6 out setup (overdub studios/mastering suites), an 8 in 8 out mid-level setup, a larger 16 in 16 out setup, and an 8 in 8 out setup with 8 high quality mic preamps (this config fills both card slots). Every configuration also includes some form of digital I/O, though the amount of channels and connection type varies from module to module.

On top of those configurations you can pick up additional I/O modules for the second slot. In addition to the four different I/O cards just mentioned, there is also a 16 analog in with 16 digital out and a 16 analog out with 16 digital in. So essentially between those 6 different modules, you can customize and build any type of system to fit your needs - be them more tracking oriented, mixing or mastering oriented, or even location oriented. Unsure of what the best I/O configuration for you is? Give us a call! We frequently custom build Symphony systems and would be happy to assist with constructing a system that’ll best cover your channel count needs.

The tone of the Symphony continues Apogee’s tradition of adding a subtle amount of color, excitement, and polish to anything run through it. While it is incredibly subtle, I noticed while tracking an entire session through the Symphony, all of the tracks and instruments started to glue together very slightly since they all contained a similar ‘uniform tone.’ I can’t say it’s effect is identical to tracking to tape or mixing through a great sounding console as the texture is not nearly as defined, but the concept of “glueing” by applying a specific tone/color to all of your tracks is the same. Practically speaking, tracking and mixing through the Symphony system will remove the need for that one additional glue/polish processor you throw on your mix buss.

In addition to it’s great tone, the new technology and the quality of components found within the Symphony provides an enhanced level of openness and detail in the signal that, when compared to previous models, allows you to hear more information and experience a more defined stereo image. This ultimately results in a clearer and more defined mix since nothing is being hidden from you (you can’t mix what you can’t hear!). One thing worth noting if you’re using the Symphony as your monitoring D/A, there is a final stage of conversion color being added to what you’re hearing that’s not actually in the audio you’re playing back. As mentioned multiple times, this coloration is very subtle so by no means does this rule out it’s ability to be an excellent monitoring D/A, however it is something to be aware of.

All Symphony systems are ready to go out of the box with USB 2 connectivity as well as HD connectivity if you’re working on a Pro Tools HD system, be it HDX, HD Native, older HD2/3, or even a computer equipped with a Symphony 64 PCIe card. On top of that though is the option to pick up a Thunderbridge adaptor for true thunderbolt transfer speeds, not just Firewire or close to Firewire speeds running through a Thunderbolt connector like some other interfaces. This enhanced transfer speed gives you the ability to daisy chain multiple systems together and still obtain incredibly low latency on a very stable single platform.

In summary the Symphony system in one of the only pro level multi-channel converters that offers the customization, monitor control and headphone amps, high-quality preamps, and incredible conversion all in one chassis. It’s modular design is smart, future proof, and also gives you the option of building your setup and channel count over time.

From Apogee Digital

Add 16 Channels to Your Symphony I/O!

Are you looking to add more inputs and outputs to your Symphony I/O? The Apogee Symphony 8x8 Analog I/O + 8x8 AES/Optical I/O Module is the expansion card you have been waiting for. Thanks to advances in technology, this card now gives you analog, AES, and optical I/O. Previously available in a separate card, the optical I/O lets you utilize up to eight channels of ADAT or S/MUX I/O. A selection of D-Sub, optical, and RCA inputs give you the flexibility you need to bring in any signal to your Symphony I/O. Expand your possibilities with the Apogee Symphony 8x8 Analog I/O + 8x8 AES/Optical I/O Module!

Apogee Symphony 8x8 Analog I/O + 8x8 AES/Optical I/O Module at a Glance:

New technology offers better operation
Two I/O cards in one
Flexible I/O for all your needs
New technology offers better operation

Each year technology gets better and better. The Symphony 8x8 Analog I/O + 8x8 AES/Optical I/O Module has a more simplified design than its predecessors, due to many improvements in technology over the years. This design is 30 percent more power efficient without any compromise in performance.

Two I/O cards in one

In the past you had to buy two cards to get optical and AES connectivity in your Symphony I/O. With the new Symphony 8x8 Analog I/O + 8x8 AES/Optical I/O Module you get all the flexibility and I/O options you could want in one card. Add this card to your Symphony I/O and you'll never need to add another.

Flexible I/O for all your needs

The Symphony 8x8 Analog I/O + 8x8 AES/Optical I/O Module adds a full 16 channels (input and output) to your Apogee Symphony I/O. The analog I/O consists of two 25-pin D-Sub connectors: one for input and one for output. Each carries eight balanced channels. A third 25-pin D-Sub connector carries eight channels of AES/EBU digital I/O. You can also configure this connector in a single-wide 192kHz format. Four optical ports give your Symphony I/O a full selection of optical output, including S/MUX, ADAT, and S/PDIF formats. An additional set of RCA jacks adds S/PDIF I/O.

Apogee Symphony 8x8 Analog I/O + 8x8 AES/Optical I/O Module Features:

Add eight channels of analog I/O and eight channels of digital or optical I/O to your Symphony I/O interface
Separate 25-pin D-Sub connectors for balanced analog input, analog output, and AES/EBU I/O
2 x Optical inputs and outputs for ADAT and SMUX
2 x RCA and Optical jacks for S/PDIF I/O
Up to 24-bit/192kHz digital audio using the single-wide AES/EBU format

Condition. Used

Number of Inputs. 16 (8x8 Analog & 8x8 Digital)

Number of Outputs. 16 (8x8 Analog & 8x8 Digital)

Maximum Sampling Rate. 192 kHz

Digital Format. ADAT, AES/EBU, S/PDIF
