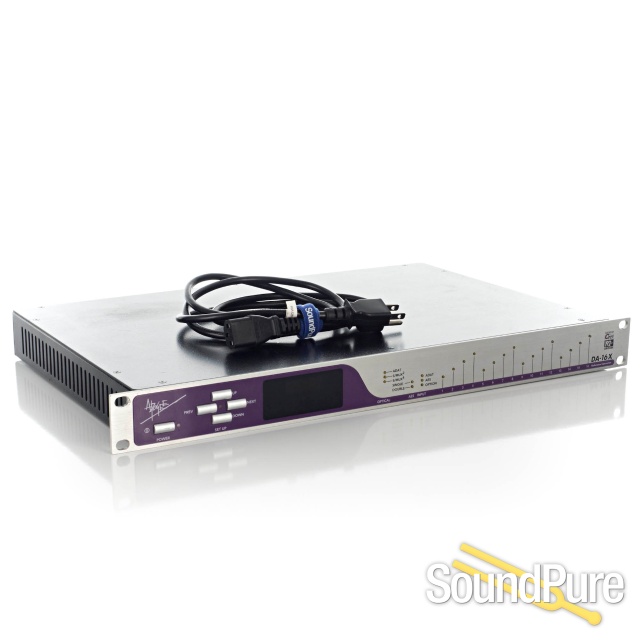

Manufacturer's Description from Apogee
The DA-16X, Apogee’s latest and most advanced digital to analog converter, takes the legendary quality of Apogee a significant step forward. Features such as a redesigned power supply, standard 192kHz sampling rates, the C777 clocking technology found in Big Ben, and optional Pro Tools HD and FireWire expansion cards, make the DA-16X the most powerful and flexible D-to-A converter ever.
About Manufacturer
Apogee was founded in 1985 and initially made its name designing filters. Later, Apogee's complete conversion systems pushed the envelope of digital audio quality and solved many of the early problems with digital audio technology. Apogee converters have become regarded as the reference standard for digital audio conversion. Products such as the award-winning Rosetta 800, AD16x and DA16x have become the modern benchmark by which digital audio conversion is judged. A new generation of Apogee products including the revolutionary Symphony I/O, with its modular design and flexible connectivity, promise to extend the Apogee legacy and further advance the art of digital audio.
Specifications
Features and Specifications
• 16 channels of premium 24-bit D/A conversion
• Sample rates up to 192k
• 16 channels of AES, ADAT/SMUX Input
• Word Clock I/O
• Optional expansion card for direct connection to ProTools HD (X-HD card)
• Optional S800 FireWire card capable of sample rates up to 192k, compatible with OS
X/Windows XP and all popular DAW’s (X-FireWire card)
• All option cards (X-FireWire and X-HD) facilitate connection of multiple units
• Direct Digital Synthesis (DDS) using Big Ben’s C777 Clock Technology up to 192kHz
• Master clock capability
• Adaptive Loop Filtering (ALF) for optimum clock performance and minimum jitter
• Support for AES double wire and SMUX formats
• Intuitive front panel calibration
• Word Clock termination switch
INPUTS
• AES-EBU in x 8, transformer balanced, DSUB 25pin connector (192k single wide compatible)
• Optical: toslink x 4, supporting ADAT and SMUX protocol
• WC in: BNC 75 ohm with switchable termination

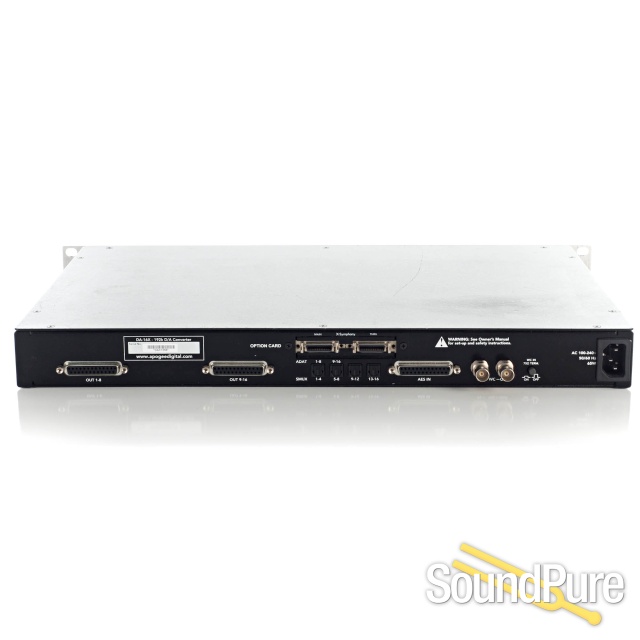

OUTPUTS
• WC out: BNC 75 ohm
• Analog out 1-8 Balanced, DSUB 25pin connector.
• Analog out 9-16 Balanced, DSUB 25pin connector.
OPTION SLOT
• One x-type card can be installed, for Firewire, HD and or other future format connectivity
