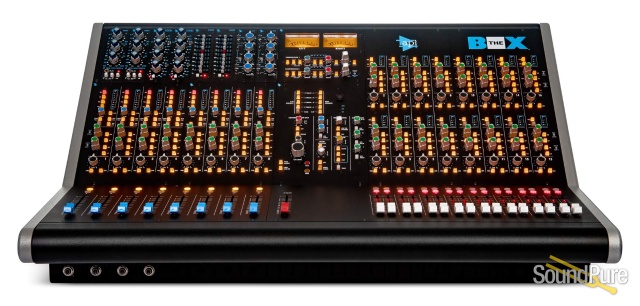

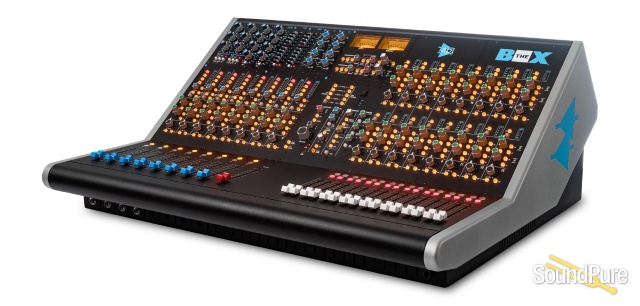

API THE BOX® II Mixing and Recording Console  From API

THE BOX II is a small-format recording/mixing console designed for professional project studios, home studios, and production facilities of all kinds.

API Audio

$15,955.25

Retail:  $17,995.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

No Sales Tax Outside North Carolina

This product is too large to ship by standard UPS, and requires special shipping. Please contact us toll-free 888-528-9703, or email us, for a custom rate quote.
Payments as low as $362/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

Manufacturer's Description from API

API successfully debuted THE BOX Console over five years ago, and its highly desirable large console sound in a compact footprint has become a favorite choice of audio pros worldwide — from commercial production facilities to home studio operations.



The newest version of the award-winning BOX Console provides even more options and flexibility for modern studio workflow. Offering a total of eight input channels and eight 500 Series slots, the updated BOX Console also features LED metering for each of its 24 summing channels. The new BOX Console provides the same comprehensive rear panel connections, full center section and monitoring as its predecessor, as well as the 0dB bypass switch on each summing channel — a feature so popular it was included in the design of API's new 1608-II and 2448 consoles.



THE BOX is API's small-format solution for any studio where space or budget is limited. Using the same circuitry and components as all other API consoles (including the Vision and Legacy AXS), THE BOX provides the signature analog sound and performance users have come to expect from API. Designed and optimized for the digital era, THE BOX handles all the functions needed for production not provided by most DAWs, including mic preamps, input signal processing, high-quality mix bus, cue sends with talkback, monitor control and more. Most importantly, THE BOX offers the legendary API sound in an efficient, cost-effective package.



Features

 ♦ Eight (8) input channels with Mic Preamp, Line Input and Hi Pass Filter

 ♦ Eight (8) 500 Series slots (1 per input channel)

 ♦ Direct Out on Input Channels

 ♦ On-Board Stereo Bus Compressor w/ ability to assign to program bus or input channels 1-4

 ♦ Instrument Direct Inputs on channels 1-4

 ♦ Sixteen (16) summing channels (24 channels during mix)

 ♦ 0dB bypass switch for each summing channel

 ♦ 4-Segment LED Metering on each summing channel

 ♦ Stereo program bus with master fader, insert, and external input

 ♦ One (1) stereo and (2) mono auxiliary sends/buses

 ♦ Stereo cue send/bus & headphone system

 ♦ PFL, AFL, and Solo-In-Place solo modes with stereo solo bus

 ♦ Full-featured monitor section that supports two stereo monitor systems

 ♦ Talkback system

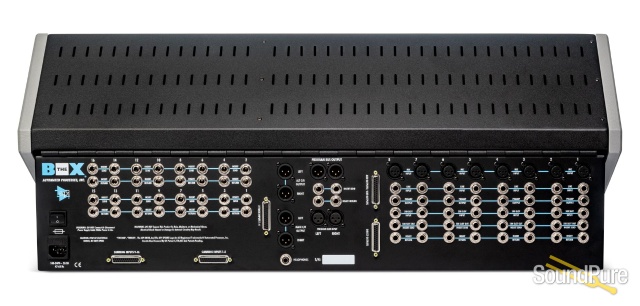

 ♦ Comprehensive rear panel connections with balanced inputs and outputs

 ♦ Integrated power supply

API Audio

About Manufacturer

API (Automated Processes, Inc.) is world famous for its all-discrete audio products: studio and broadcast mixing consoles, and a full line of rack mount mic preamps, equalizers and processors. It all began with a dream. It was 1968. The company: Automated Processes Inc., formed by men with a vision. Best known for their now legendary "2520 amplifier", this unique amp has been and will continue to be the heart of all API discrete products. It continues to provide reliability and sonic purity unmatched by the competition. The resulting console met the needs of the music, commercial and broadcast industry. API became the leading audio broadcast console manufacturer for radio and television networks and high profile stations. In addition, recording studios, large and small, began using API.....and receiving rave reviews from engineers and producers. There are over 700 API consoles across the nation and around the world, including the three major networks. Over thirty years later, many of these consoles are still in daily use in some of the most prestigious recording and broadcast facilities in the world because, to date, there are few, if any consoles of equal sound quality at a cost-effective price.

Specifications

Input Specifications

Line Input Maximum Level: +28 dBu (+34 dBu w/PAD)

Microphone Input Gain Range: +30 dB to +65 dB (+10 dB to +45 dB w/PAD)

Microphone Maximum Level: ‐2 dBu (+18 dBu w/PAD)

Instrument Input Gain Range: +11 dB to +46 dB

Input PAD ‐20 dB Mic, ‐6 dB Line

Direct Output Maximum Level: +28 dBu

Direct Output Frequency Response: +0/‐0.5 dB, 20 Hz to 50 kHz

Signal to Noise Ratio (from max): ‐116 dB

Output Specifications

Program Output Maximum Level: +28 dBu

Program Output Frequency Response: +/‐ 0.5 dB, 20 Hz to 50 kHz

Signal to Noise Ratio (from max): ‐118 dB

General Specifications

Dimensions: 32.5" x 26.4" x 13.2"

Weight: 90 lbs

Power: 120 Watts
