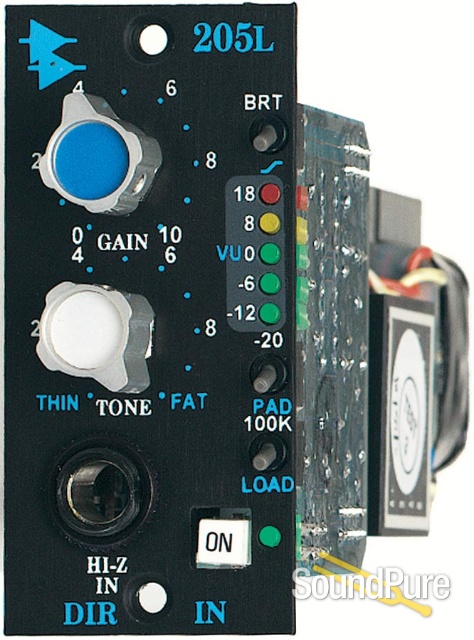

API Audio 205L 200 series Discrete Direct Input  From API

Discrete Direct Input.

API Audio

$617.50

Retail:  $650.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $54/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from API

Features

  • Wide range GAIN control
  • Hi-Z input, like a Tube Amp

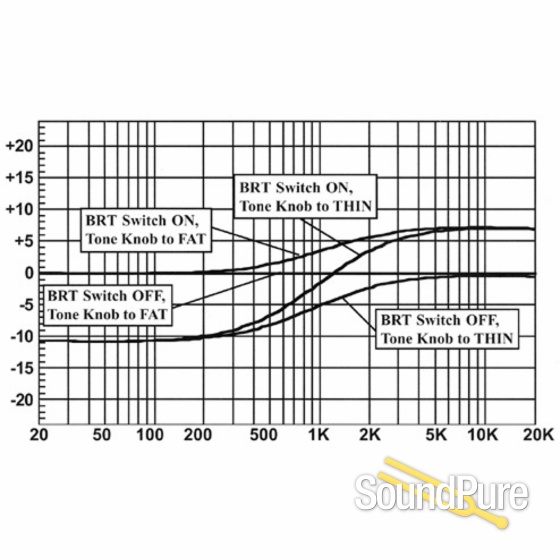

  • Thin < > Fat TONE Control reduces low end mud
  • BRIGHT Switch boosts the presence
  • 20 dB PAD lowers the input level
  • 100 K LOAD switch changes the tone of instruments
  • 5 Segment LED Meter shows Output Level
  • Transformer Coupled Output to +28 dBm
  • All Discrete Design

The API 205L Instrument Direct is specifically designed to accept a guitar or bass direct into it, without any loading on the pickups. The Gain Control is used to normalize the instrument's input level, up to a +4 dBu output level. With the use of the unique TONE control, the low end "mud" can be reduced. Turning on the BRIGHT switch adds clarity, like the bright switch on any amp. The combination of these two functions may eliminate the need for any EQ on the instrument when recording, keeping the signal pure.

The input is designed specifically to load a pickup the same way that a tube guitar amp would, retaining all of the tone, and minimizing the loading effect on the pickup. This minimal path eliminates the need to use a standard direct box, which more times than not only converts the signal to a balanced mic level output, which still requires a mic input, equalizer, and fader to get the signal to a recordable level.

The 205L is capable of boosting any instrument to a hefty line level without additional amplifiers. With the 100 K LOAD switch, the tone of the pickup can be altered slightly, which tends to darken the high frequency content. The BRIGHT switch adds a treble boost in the same manner that most instrument amplifiers do, clarifying the instrument and adding presence to it without the need for outboard equalization. When inserting an instrument with an internal preamp or a line level instrument such as a sampler or a keyboard, the 205L has a 20 dB PAD switch to drop the level without loading, thereby retaining the full range of the 205L and its features.

When used with other 200L series modules, a complete input strip can be built from input through dynamics, equalization, and final output. Also, the output of the 205L can be fed to tape, or the input of a guitar power amplifier. The artist can then be in the control room while the instrument amp is isolated in the studio.

The 205L can be used in the Legacy or Vision Series Consoles, or in the L200 Rack. The 205L Direct makes use of the 2510 and 2520 op-amps and therefore exhibits the reliability, long life, and uniformity characteristic of API products.

API Audio

About Manufacturer

API (Automated Processes, Inc.) is world famous for its all-discrete audio products: studio and broadcast mixing consoles, and a full line of rack mount mic preamps, equalizers and processors. It all began with a dream. It was 1968. The company: Automated Processes Inc., formed by men with a vision. Best known for their now legendary "2520 amplifier", this unique amp has been and will continue to be the heart of all API discrete products. It continues to provide reliability and sonic purity unmatched by the competition. The resulting console met the needs of the music, commercial and broadcast industry. API became the leading audio broadcast console manufacturer for radio and television networks and high profile stations. In addition, recording studios, large and small, began using API.....and receiving rave reviews from engineers and producers. There are over 700 API consoles across the nation and around the world, including the three major networks. Over thirty years later, many of these consoles are still in daily use in some of the most prestigious recording and broadcast facilities in the world because, to date, there are few, if any consoles of equal sound quality at a cost-effective price.

Specifications

Specifications

Number of Bands:

Two

Filter Type:

Passive Shelf

Filter Frequency Centers:

Low: 150 Hz

High: 8 kHz

Input Impedance:

>470 K Ohms, Un-Balanced

Output Impedance:

85 Ohms, Transformer coupled, Balanced

Nominal Levels:

-40 dBu to +20 dBu

Clipping Level:

+28 dBu

Frequency Response:

0, -.3, 30 to 20 kHz

Noise:

98 dB below +10 dBm output, unweighted. 20-20 kHz

Distortion:

THD: .02% (+4 dB @ 2 K)

Connectors:

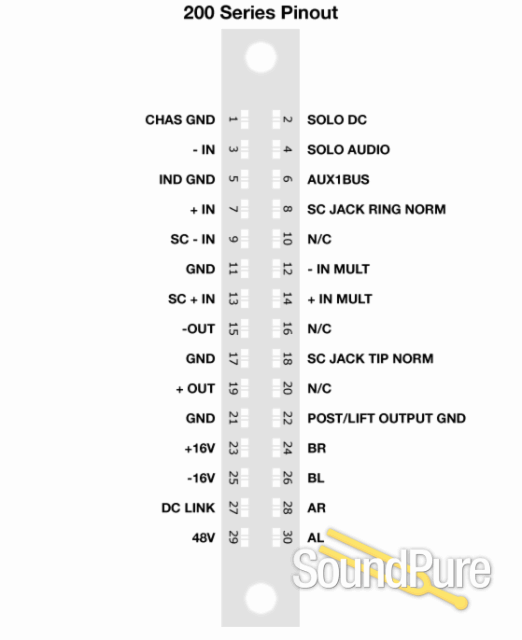

.100 spaced ELCO

Power Consumption:

±16 Volts DC, 80mA max at +24 dBu out

Size:

1.25" X 2.65" X 6.5" Deep

Size (Boxed for Shipping):

4.5" X 6.25" X 10"

Actual Weight:

.61 lb.

Shipping Weight:

.98 lb.

Downloads

Action

Name

Description

Manual
