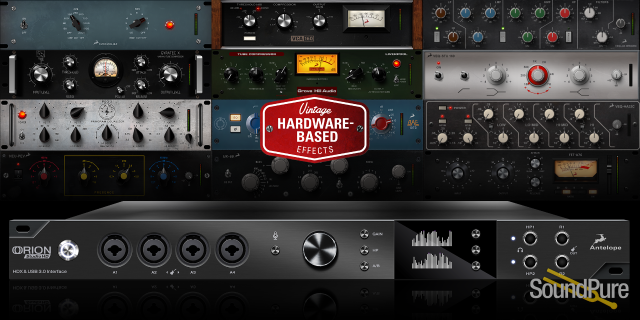

Antelope Audio Orion Studio HD Interface  From Antelope

Pro Tools HDX and USB 3.0 Interface with Antelope's very best A/D multichannel converter tech

Antelope Audio

Manufacturer's Description from Antelope

ORION STUDIO HD IS PACKED WITH FPGA FX OF LEGENDARY STUDIO GEAR

Orion Studio HD features our full library of classic studio hardware. EQs, compressors, AuraVerb and the hottest guitar amps & cabinets – coming to your studio for free. Our unique sampling technique for vintage gear modeling has provided Orion Studio HD with 40+ authentic audio effects, including classics from BAE, Grove Hill, Gyraf Audio and Lang:

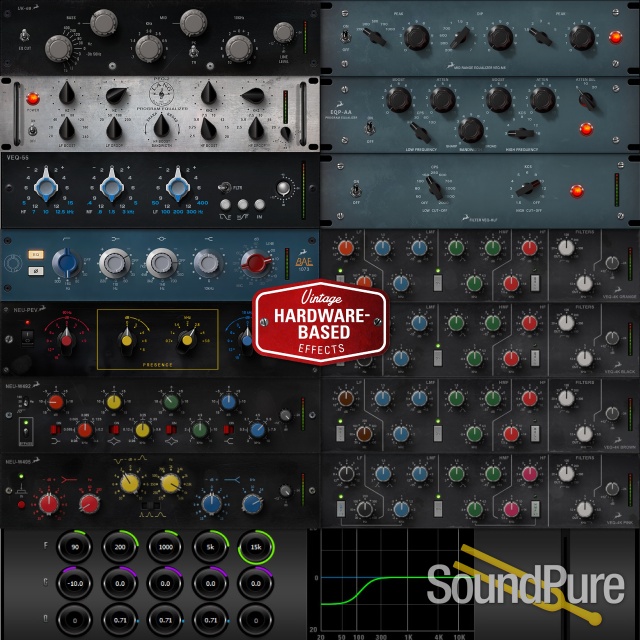

  • EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE 1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ – 1A, VMEQ-5, LANG PEQ2, VEQ-55A, UK-69, NEU-PEV, INTEGRATED EQ

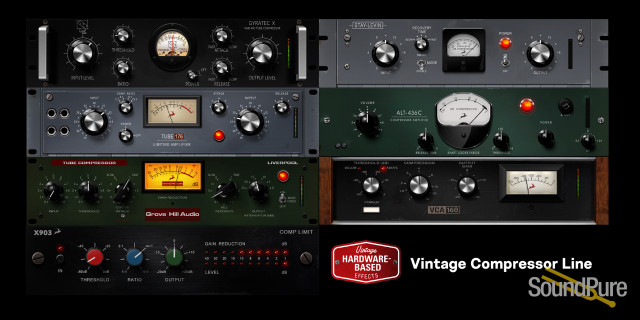

  • VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76

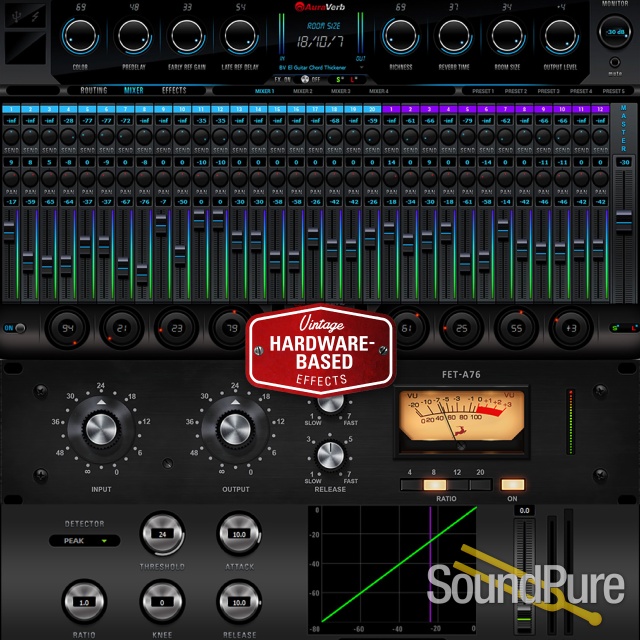

  • AURAVERB™: New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for “Smooth and Clear” Sound

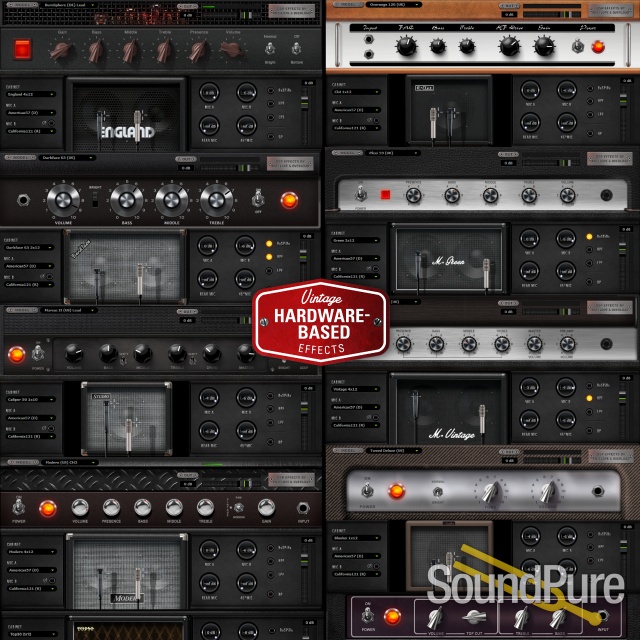

  • THE GUITAR CLASSICS:

Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst 1x12, England4x12, Modern 4x12, Bluelux 1x12.

Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE.

Mics: California121 Ribbon, Austria Gold 414, American57, German FET87.



Key Product Features:

  • Advanced AD converters with dynamic range boosted to 124 dB

  • HDX port for Pro Tools & Native setups compatibility

  • 40+ AFX including BAE, Grove Hill, Gyraf Audio and Lang classics

  • 12 Mic Pres, 16 Analog outs, 2 Reamps

  • A/B Mastering-grade Monitor Outputs

  • ADAT optical I/O, S/PDIF I/O

  • Flawless 4th Generation 64-bit clocking and unique analog circuitry

  • Controllable via user-friendly desktop and mobile apps

  • USB 3.0 connectivity compatible with both MAC OS & Windows

ORION STUDIO GOES HD

Orion Studio HD – with HDX & USB 3.0 connectivity, massive Real-Time FPGA FX library and our high-end clocking and conversion

Orion Studio HD is the newest star in an already established line of top audio interfaces. Now with HDX connectivity it's a prefered choice for the higher level Pro Tools setups. With extended analog I/O, 12 Cфlass A Mic Pres and enhanced conversion, Orion Studio HD can fit any DAW workflow and recording and producing environment thanks to a fast speed USB 3.0 port.



Antelope Audio's latest audio interface comes fully equipped with our full library of Real-Time FPGA FX. Not only is that vast array of EQs, compressors, guitar amps and cabinets plus AuraVerb reverb coming to you for free, but also features authentic models of legendary units from BAE, Grove Hill, Gyraf Audio, Lang and more are yet to come.



FPGA POWER

They key to authentic FX modeling and zero latency audio processing is Antelope Audio's FPGA technology



Orion Studio HD features an extremely powerful Field-Programmable Gate Array (FPGA) chip. This Antelope Audio pioneered technology provides the unit with massive modeling capabilities. In other words the FPGA is the reason why you'll be able to use over 40 Real-Time FX models of legendary EQs, compressors, guitar amps & cabs.

Those not only behave and sound as authentic as the real hardware that inspired us to recreate them in the FPGA domain, but are guaranteed to be easily applied when recording, mixing and mastering music. Another feature you'll love and we owe to the FPGA is the lowest latency possible. This allows you to create up to four independent, zero latency mixes. Those can be easily assigned to any output including the main mastering grade outs of Orion Studio HD and its two dedicated headphone outs.



ANTELOPE QUALITY CLOCKING & CONVERSION

Perfect sound still means flawless clocking

Orion Studio HD is using the AD converters from Orion Studio Rev. 2017, which are allowing dynamic range boosted to 124 dB. The audio world's favorite clocking accuracy is also a part of Orion Studio HD package as well. Powered by our acclaimed 64-bit Acoustically Focused Clocking (AFC) jitter management technology it's a guarantee for incomparable stability, sonic accuracy and audio detail. We're talking high-end pro studio language here so expect OCX HD and Trinity style clocking perfection here.


ENVIABLE CONNECTIVITY

Record a full band, mix and produce with Orion Studio HD

Beside connectable via the Pro Tools friendly HDX port, Orion Studio HD offers USB 3.0connection making the device compatible with any DAW in business. The interface comes with a plethorа of analog and digital I/O options among which 12 high-end mic pres, a pair of mastering grade monitor outs, 16 analog outs, 2 transformer reamp outputs, plus 8 channels I/O via ADAT and 2 channels I/O on S/PDIF.

FLEXIBLE CONTROL

Access all Orion Studio HD features intuitive mobile and desktop apps

Like everything Antelope Audio, Orion Studio HD allows for fast device control via multiple computers via OS & Windows compatible desktop app. Functionality highlights include switching between two routing matrix view modes and Full Session Saving functionality. Yes, Orion Studio HD allows you to quickly save, load and share any routing, monitoring, and FX settings. These presets can be then easily exchanged between studio facilities, which are part of the global Antelope Audio family.

Control and use as many Orion Studio HD devices as you want via the S/N selector inside the software control panel or open multiple panels on the same computer. Orion Studio HD is suitable for large studio facilities and offers flexible device management from various access points.

Want even greater freedom? An iOS / Android mobile app gives you full mic pres control from a smartphone or tablet.

Antelope Audio

About Manufacturer

ANTELOPE AUDIO
Digital clarity | Analog warmth
Antelope Audio has packed more then 20 years’ experience in digital audio, clocking and analog circuit development. We are dedicated to helping people achieve high-definition sound both in the recording studio and home environment.
Our 20 years in the industry brought us to the development of our 4th generation of Acoustically Focused Clocking (AFC) jitter management algorithm, responsible for our flawless clocking. You probably know it from Antelope’s signature crystal-based master clocks, that clock even our competitors products.

Specifications

SPECIFICATIONS:

ANALOG

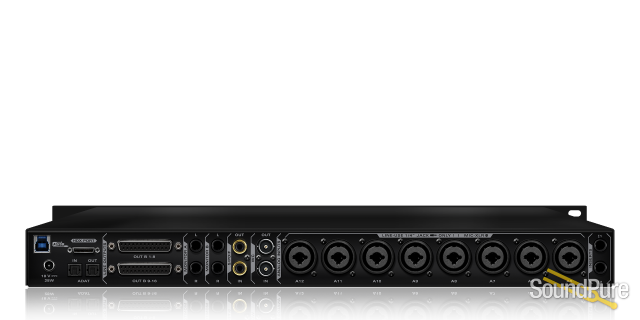

Analog Inputs

4 x Mic / Line / Instrument on XLR combos on the front

8 x Mic / Line on XLR combos on the rear

Analog Inserts

2 x Inserts on TRS (inputs 1,2)

Analog Outputs

2 x DB25 (16 channels)

2 x Stereo Monitor out on TRS (4 channels, only 1 pair active at a time)

2 x Stereo Headphone outs on TRS (4 channels)

2 x ReAmp outs on TRS (2 channels)

D/A Monitor Converter

Dynamic Range: 129 dB

THD + N: -108 dB

A/D Converter

Dynamic Range: 124 dB

THD + N: -112 dB

D/A Converters

Dynamic Range: 127 dB

THD + N: -107 dB

Mic Preamp

Gain: 0,10 – 65 dB

THD + N: -108 dB



DIGITAL

Digital Inputs

1 x ADAT (up to 8 channels)

1 x S/PDIF

Digital Outputs

1 x ADAT (up to 8 channels)

1 x S/PDIF

USB I/O

1 x USB 3.0 Hi-Speed; 32 – 192 kHz, 64 channels I/O, Type B

Thunderbolt™ I/O

N/A

HDX

1 x HDX, 32 channels I/O



CLOCKING

Word Clock Input

1 x Input @ 75 Ohms 3 Vpp on BNC 32 – 192 kHz

Atomic Clock Input

N/A

Word Clock Outputs

1 × Outputs @ 75 Ohms on BNC 32 –192kHz

Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator

Clock Stability

<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

Clock Aging

< 1 ppm per year

Clock Calibration

< +/-0.001 ppm

Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192



OTHER

Operating Temperature

0-50°C, 32-122°F

Weight

3.1 kg / 6.83 lbs (approx )

Dimensions (approx)

Width: 483 mm / 19”

Height: 44 mm / 1.7”

Depth: 226 mm / 8.6”

Electrical specs

DC Universal input: 18V

Power Consumption: 25 Watts Max



In the box:

Orion Studio HD Audio Interface

Owner’s Manual

Warranty Card

1 USB Cable

1 DC Power Supply



System requirements:

WINDOWS

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1 x USB 3.0 Port

HDX: 1 x HDX I/O

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1 x USB 3.0 Port

HDX: 1 x HDX I/O

Memory (RAM): 4 GB Minimum (8 GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)



Additional Info: Internet connection required for product activation.
