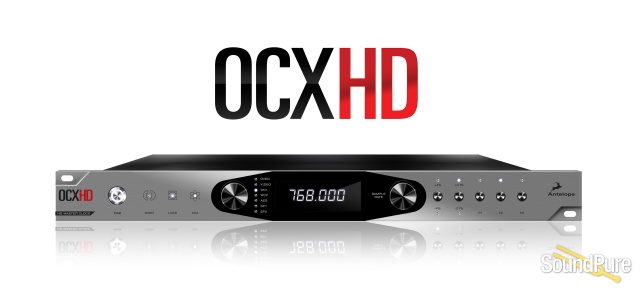

Antelope Audio OCX HD 768 kHz HD Master Clock  From Antelope

Antelope's next-gen OCX master clock is designed to allow your converters to operate at their maximum capacity

Antelope Audio

$1,795.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $40/mo.

Manufacturer's Description from Antelope

The perfect solution for mastering, recording and project studios, film-scoring, post-production and live sound

For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world.

This legacy now continues with the newest master clock by Antelope Audio – Isochrone OCX HD.



Features:

Antelope's 4th-generation AFC jitter management algorithm

Sample rate support up to 768kHz

Output of 5 distinct sample rates enabled by onboard multipliers and dividers

Additional connectivity via 4 AES/EBU, 2 S/PDIF clocking outputs (up to 192kHz)

Comprehensive audio gearboxing

Universal video input (BNC connector)

Atomic clock input for optimized accuracy and calibration

3 recallable presets

Control panel Rate Lock protects your settings while in session

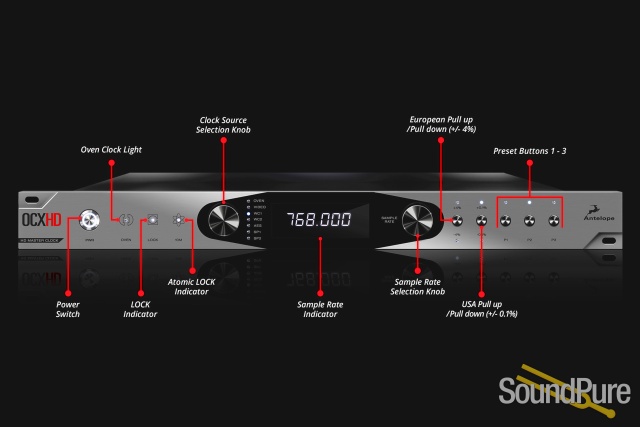

User-friendly front panel control



THE NEW STANDARD IN CLOCKING

OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.



VIDEO CLOCKING

All that you love about Antelope’s cult Trinity Master Clock now in just 1U.

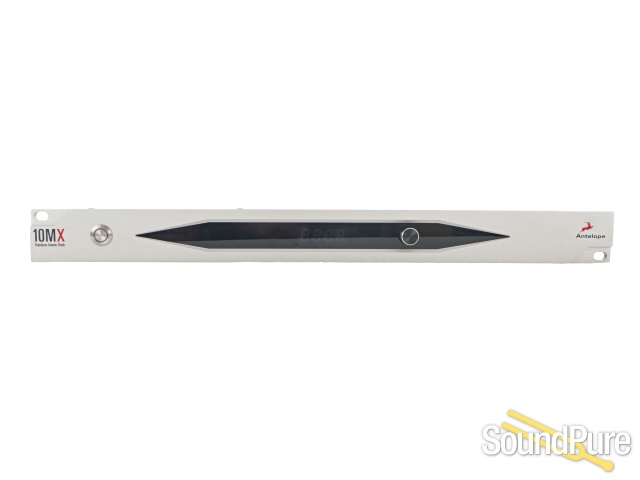

Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope’s newest Atomic Clock – 10MX.



ADVANCED CONTROL

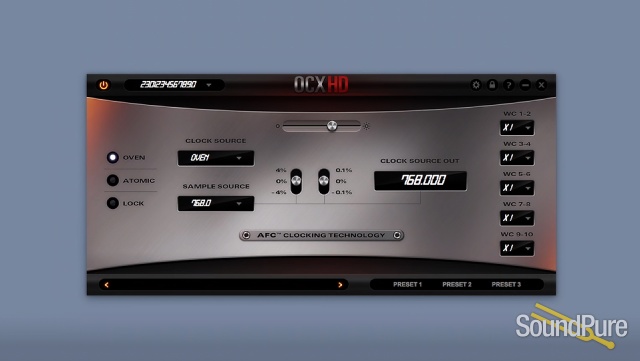

Access all OCX HD features via Antelope Audio’s flexible software control panel

Antelope’s latest master clock benefits from flexible firmware update functionality, as featured in all new-generation Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows.



The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.

Antelope Audio

About Manufacturer

ANTELOPE AUDIO
Digital clarity | Analog warmth
Antelope Audio has packed more then 20 years’ experience in digital audio, clocking and analog circuit development. We are dedicated to helping people achieve high-definition sound both in the recording studio and home environment.
Our 20 years in the industry brought us to the development of our 4th generation of Acoustically Focused Clocking (AFC) jitter management algorithm, responsible for our flawless clocking. You probably know it from Antelope’s signature crystal-based master clocks, that clock even our competitors products.

Specifications

Sample Rates Generated

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz

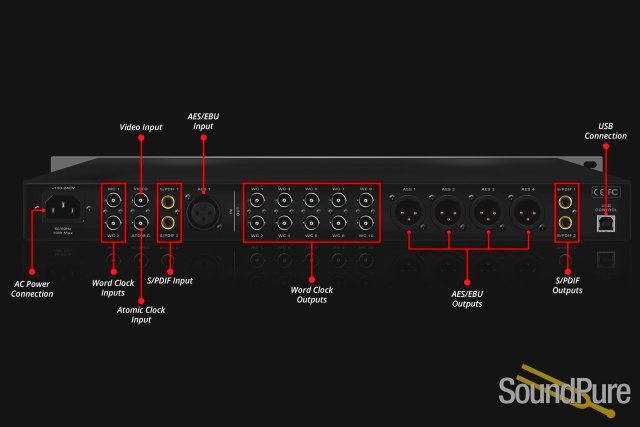

Master Clock Outputs

10x Word Clock Outputs up to 768kHz

4x AES/EBU Outputs up to 192kHz

2x S/PDIF Outputs up to 192kHz

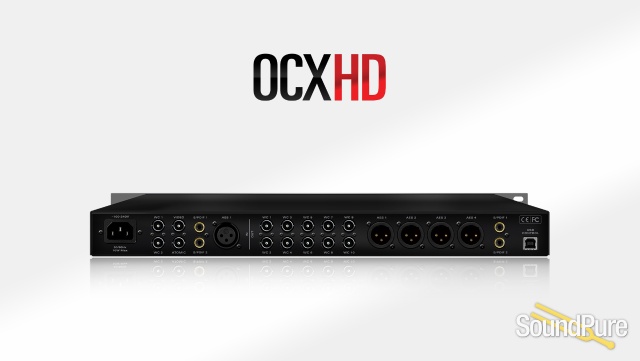

Inputs

2x Word Clock Inputs up to 768kHz

1x Video Input accepting wide range of SD and HD video signals

1x Atomic Input

2x S/PDIF Inputs up to 192kHz

1x AES/EBU Input up to 192kHz

1x USB Input for control

Humidity

30 – 80% RH non-condensing



Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator



Clock Calibration

< +/-0.001 ppm



Clock Stability

<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F



Clock Aging

< 1 ppm per year



Atomic Clock Input

1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC



Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)



Operating Temperature

0 – 50°C, 32-122°F



Weight

2.65 kg/5.84 lb



Dimensions

482.6 (W) х 230 (D) х 44 (H) mm

19 (W) x 9.05 (D) x 1.75 (H) inch



Power Supply

AC Universal Input ~95-245V, 20 Watts Max



System Requirements

Windows

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0 Port

Required USB bandwidth (for firmware update): 80%-90%

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0/3.0 Port

Required USB bandwidth: 80%-90%

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
