Antelope Audio LiveClock 192 kHz Live Master Clock  From Antelope

Portable 192 kHz Master Clock with Antelope's Oven Controlled Crystal Oscillator

Antelope Audio

Manufacturer's Description from Antelope

Features:

- Oven Controlled Discrete Transistor Crystal Oscillator for lowest jitter

- Easy to configure via touch-control

- OS X and Windows compatible software

- Atomic clock input for perfect stability

- Network-enabled control panel

Description:

SMALL SIZE, BIG SOUND

Best clock will always stand for best sound. Now you have both on the go.

The competitive price and elegantly small footprint make LiveClock the perfect choice for all location recordists, home studio producers or traveling artists.

The LiveClock utilizes the same clocking technology, therefore sounds as amazing as Antelope’s legendary Trinity or latest OCX HD master clock.

Reinvent Your Live Sound

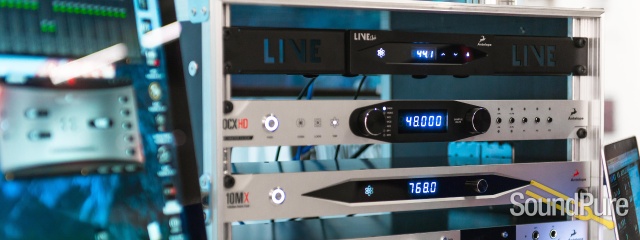

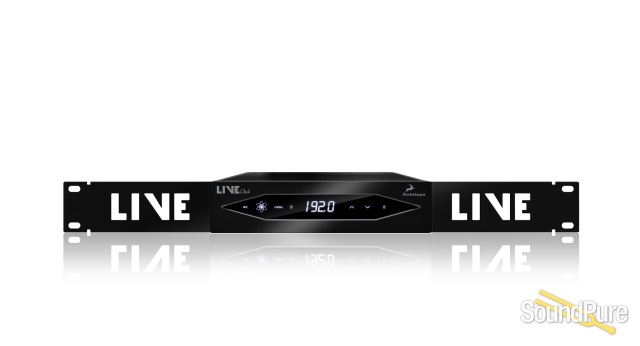

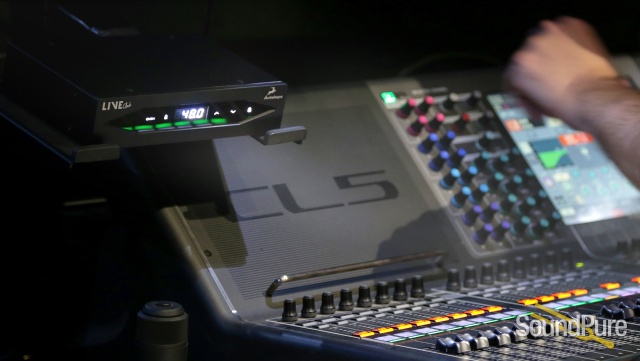

A unique in terms of size, sound quality and price audio master clock, designed to perfectly suit any live sound set up. Fitting perfectly into a FOH console dog house, the clock carries the signature Antelope sound packed in a robust aluminum case with a lockable touch screen. Taking up just 1U space and with additional rack ears, it's a breeze to set it in the rig.



192 KHZ SAMPLE RATE SUPPORT

Clock multiple devices simultaneously and sync with Antelope’s Atomic Clocks

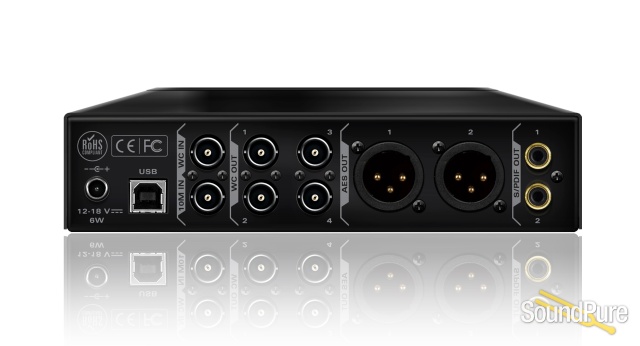

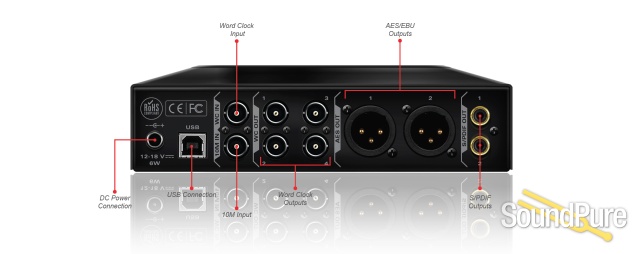

LiveClock supports up to 192 kHz sample rate, distributed via four Word Clock outputs on BNC and two pairs of AES/EBU and S/PDIF outputs. The unit allows simultaneous clocking of multiple devices, providing the perfect synchronization of either a large live rig or a contemporary studio set up. A 10 MHz input for connection with Antelope’s 10MX or 10M offers even greater stability and sound quality.



User-friendly Control Interface

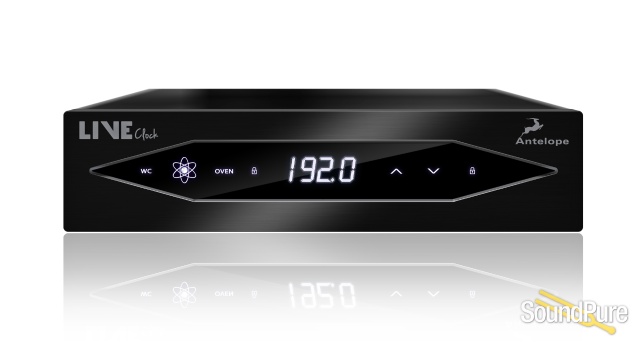

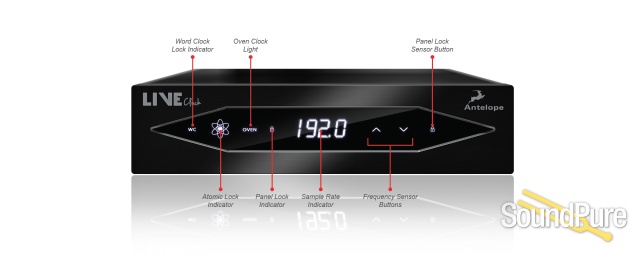

The new LiveClock is easy to configure via the sleek touch buttons. The convenient 'Panel Lock' function prevents from sampling rate changes during a session or live show.

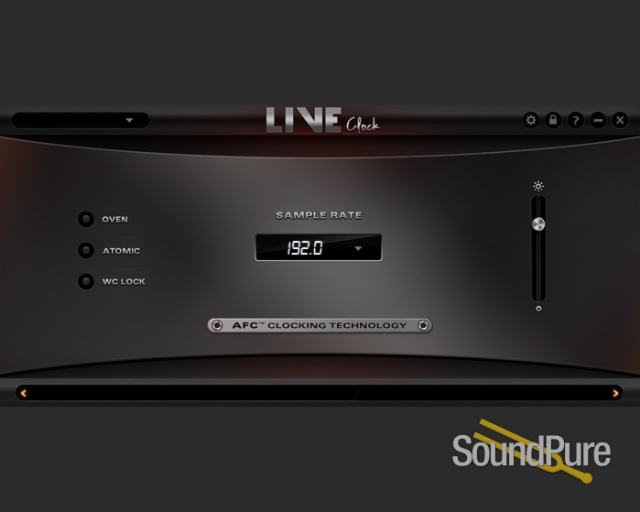

The LiveClock features an exciting new approach to control, allowing convenient device management from various access points. All aspects of the device are easily operated via the OS X and Windows software applications and fully controllable from multiple computers.



In the box:

  • LiveClock 192 kHz Live Master Clock

  • Wall Wart Power Supply Unit

  • USB cable

  • Rack Mount Kit

  • Dog House Mount Kit

  • Fasteners Set

  • Assembly Instructions

  • Cleaning Cloth

  • Owner's manual

  • Warranty card

Antelope Audio

About Manufacturer

ANTELOPE AUDIO
Digital clarity | Analog warmth
Antelope Audio has packed more then 20 years’ experience in digital audio, clocking and analog circuit development. We are dedicated to helping people achieve high-definition sound both in the recording studio and home environment.
Our 20 years in the industry brought us to the development of our 4th generation of Acoustically Focused Clocking (AFC) jitter management algorithm, responsible for our flawless clocking. You probably know it from Antelope’s signature crystal-based master clocks, that clock even our competitors products.

Specifications

SPECIFICATIONS

Atomic Clock Inputs

10 MHz Sinusoidal, BNC, 75 Ohm, 1Vpp typical

Inputs

1x Word Clock up to 192kHz

1x Atomic Input

Word Clock Specs

TTL Level, 75 Ohm Output Impedance

Outputs

4x Word Clock Outputs up to 192 kHz

2x AES/EBU Outputs up to 192 kHz

2x S/PDIF Outputs up to 192 kHz

Power Supply

DC Universal Input 12 – 18V

Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator

Power Consumption

6W max.

Operating Temperature

0-50°C/ 32 – 122°F

Dimensions (device only)

Width: 190 mm / 7,48“

Height: 46,8 mm / 1,84“

Depth: 134,8 mm / 5,30”

Clocking Stability

<+/-0.02 ppm, oven controlled at at 64.5ºC/ 148.1ºF

Clock Aging

< 1 ppm per year

Clock Calibration

<+/-0.001 ppm

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

USB

USB 2.0 Hi-Speed, Type B, only for control



System requirements



Windows

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0 Port

Required USB bandwidth (for firmware update): 80%-90%

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

OS X: 10.9/10.10/10.11 (El Capitan 10.11.5 Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0/3.0 Port

Required USB bandwidth (for firmware update): 80%-90%

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
