ADL 1700 Liquid Mu Limiter - Used

Variable Mu limiter/compressor inspired by vintage UA 175-B and 177 compressors but with added features for increased flexibility and control! In Used, Excellent Condition

Sold — contact us for a similar item.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Try Before You Buy — take it home. Don't commit until you know it's right. Program details →

Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm
No Sales Tax — except orders shipped to FL, GA, IL, NC & VA (details)

Sound Pure's Take

"I've been absolutely spoiled to be working with this compressor on a singer-songwriter record the last month. It's one of those pieces that gives you an audible benefit of color to your sound. Just by tickling the meter and doing barely any gain reduction, this thing really made a voice bloom and come out with some more depth through the monitors. I'm anxious to start mixing and print drums through it and give it a permanent home on the mix bus"

-Marc Kuzio, Pro Audio Specialist

=====

We've got one in our studio already, and it's proving to be quite a workhorse for vocals and bass guitars. We'll have more information available soon, as well as some great videos. If you have any questions in the meantime, give us a call or shoot us an email and we'd be happy to talk more with you about the ADL 1700.

From Anthony Demaria Labs

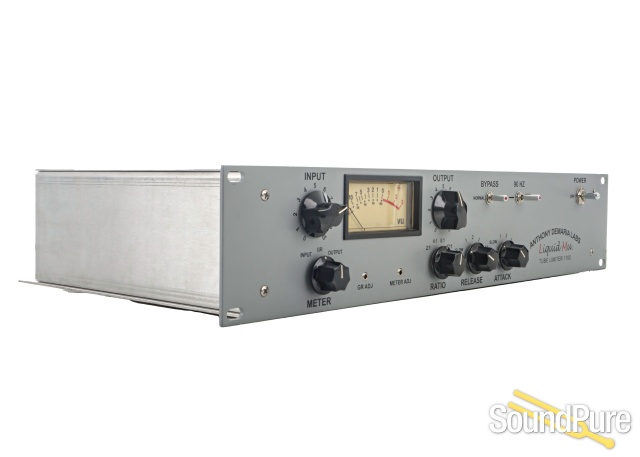

The ADL 1700 Liquid Mu Peak Limiter is often referred to as the little brother of the Fairchild 670. The 1700 employs an all discrete tube design modeled after and a cross between the vintage UA 175-B and 177 limiter except we enhanced some features for added flexibility. Unlike an opto limiter, the 1700 uniquely reduces the Mu or gain as the input signal is increased.

Versatility is a hallmark of Anthony DeMaria's latest creation. The ADL 1700 Liquid MU Peak Compressor/Limiter has myriad practical applications in the recording studio, including tracking and mixing vocals and instruments, plus sweetening the stereo buss. It is also a highly useful tool for live concert sound reinforcement, as well as film and broadcast mixing.

Handcrafted in the USA, the ADL 1700 features an all discrete tube design, transformer in/out, 90Hz high pass filter switch, bypass switch, heavy-duty chassis, and more.

Features

All discrete tube design
Transformer in/out
90Hz high pass filter switch
Bypass switch
Heavy-duty chassis
Handcrafted in the USA

Frequency Response: 10Hz-30kHz
Clip: +28 dbu
Distortion: < 0.1% - 10-GR =< 0.5%
Noise: -75 dB
Input/Output Impedance: 600 Ohm
Dimensions: Standard 19” 2-U depth 11-1/8
Power Consumption: 28 Watts
Power: 117 (Standard), 240 (Available on Request)
120V FUSE: 2-Amp Slow Blow 5x20mm
220V FUSE: 1-Amp Slow Blow 5x20mm
Tube Complement: (2) 12AX7A, (3) 12BH7A/12AU7A, (1) 6BC8, (4) 6CL5
Shipping Weight: 13 lb. or 15 Kg
