Sound Pure's Take
Condition: Used, Very Good
This amp packs a serious punch! With both forward and down firing 10 inch speakers, this amp can handle a broad range of thick sound that amplifies your acoustic instrument and takes your performance to the next level! flat response that brings out the true tone of your fine acoustic instrument.
| Frequency Response | 30 Hz-18 kHz (40-14 kHz ±3 dB) |
|---|---|
| Max SPL | >118 dB/m (Ten2) |
| AC Power | 100V to 240V, 50/60 Hz automatically switched |
| Size | 17" H x 15"W x 13" D |
| Weight | 32 lbs |
| Preamp | |
| Frequency Response | 20 Hz - 20 kHz (±0.5 dB) |
| Signal to Noise Ratio | >110 dB at direct out |

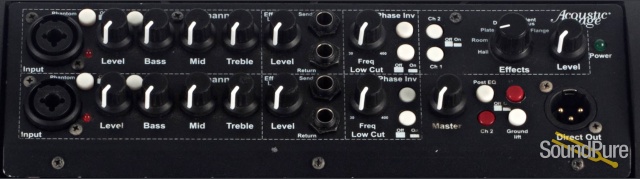

| Controls and Inputs | |
| Mic Input | 600Ohm balanced, XLR connector, switchable 10 dB gain |
| Phantom Power | 48 volts, on/off switch w/LED indicator |
| Instrument Input | 1 Mohm impedance, 1/4" jack |
| Direct Out | +4 dB, balanced, XLR connector, ground lift, pre/post EQ selector, switchable 10 dB pad |
| Effects Loop | Parallel type |
| Low Control | Shelving type, ±12 dB at 50 Hz |
| Low Mid Control | ±12 dB at 250 Hz |
| Hi Mid Control | ±12 dB at 1200 Hz |
| Treble Control | Shelving type, ±12 dB at 8 kHz |
| Phase Reversal | Switchable 180° phase reversal |
| Low Cut Filter | -12 dB/octave sweepable from 30 to 150 Hz |
| Speaker Emulator | (if selected) -12 dB/octave at 4 kHz |
| Effects | |
| Type | 24 bit digital with 3 programs |
| Programs | Reverb with variable decay time, Delay/Reverb with variable delay timeDelay with variable delay timeAll have variable wet/dry mix and “pseudo stereo” capability |
| Power Amp | |
| Topology | Class D (PWM) |
| Switching Frequency | 500 kHz |
| Output Power 8 Ohm | 300W rms continuous, 350W rms music (40% duty cycle), 500W peak transient |
| Output Power | 500W rms continuous, 650W rms music (40% duty cycle), 1000W peak transient |
| Ext Speaker Output | Speakon type (pole 1), 2W min load including internal speakers, if connected |
| Speaker Components | |
| Woofer | Dual 10 inch, one downfiring with level control, one forward firing |
| Tweeter | 2.5 inch forward firing with attenuation control |
| Crossover | Passive, alignment corrected |
| Impedance | 4Ohm |
| Power Rating | 500W |

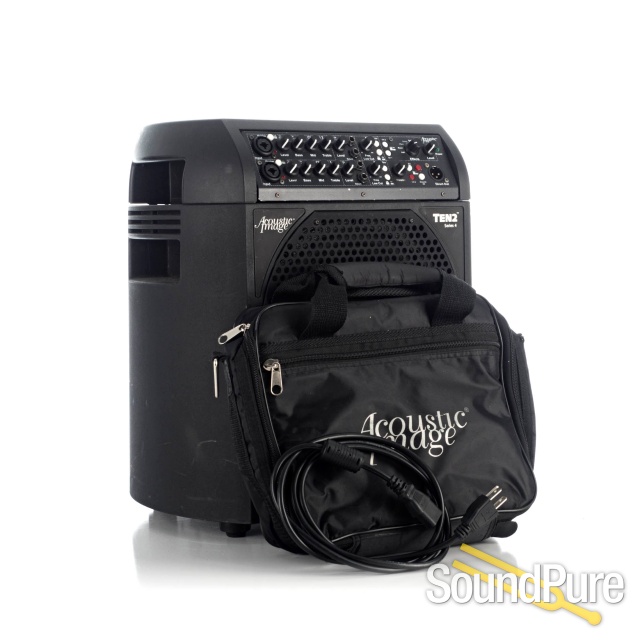

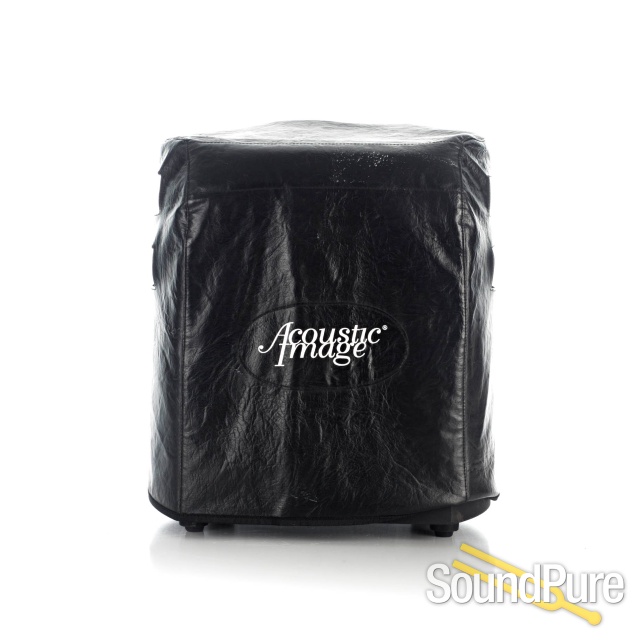

| Included Accessories | Fitted slip cover with cord storage pocket and shoulder strap |
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: take it home, commit only when it's right. Program details →
