Hand-built in East Nashville, TN
EF86 Preamp
Premium Mercury Magnetics Transformers throughout
Patented HybridMASTER volume management technology
Pure tube spring reverb with Ambient and Tight modes

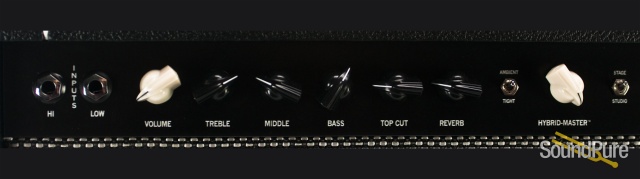

Volume, Treble, Middle and Bass controls
Expanded mid-range frequency control for classic and modern AC-style tones
8 ohm or 4 ohm speaker impedance selector switch feeds two speaker output jacks
1W carbon film resistors for low noise, 1/2W carbon composition resistors for tone
Long-tailed-pair phase inverter for greater headroom
Power and Standby switches on the front panel
Mallory and Orange Drop capacitors
F&T power supply filter caps
Choke filtered power supply

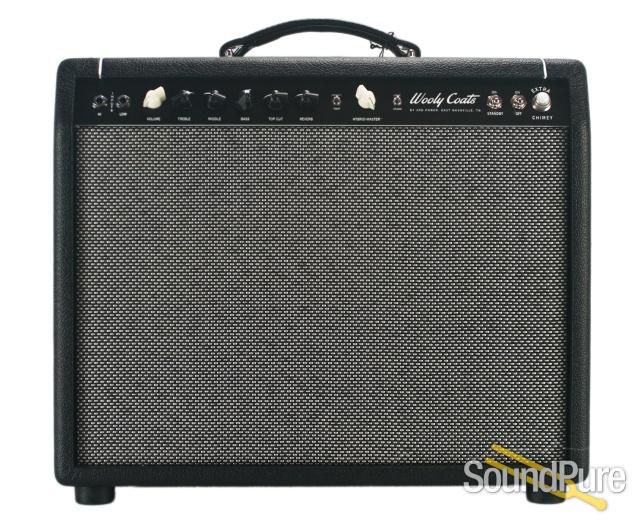

Available as a head or 112 combo
Quartet EL84 output tubes
5AR4 rectifier tube
- Power
-
Class AB, 35 Watts (tube rectified)
- Power Tubes
-
JJ EL84 x 4 as standard
- Preamp Tubes
-
V1: EF806, V2: ECC83, V3: Sovtek 12AX7 LPS
- Tone Controls
-
Volume, Treble, Middle and Bass
- Reverb Controls
-
Reverb Level, Reverb Mode Switch (Ambient/Tight)
- Other Controls & Features
-
Stage/Studio Output Mode Switch (Stage Mode = 100% output, Studio Mode = 30% output), HybridMASTER™ Level Control for Fine Tuning Output Level
- Options
-
Dual Mode Tube-driven Spring Reverb
- Weight
-
35 lbs.
- Case Composition
-
Solid 3/4 in. Pine

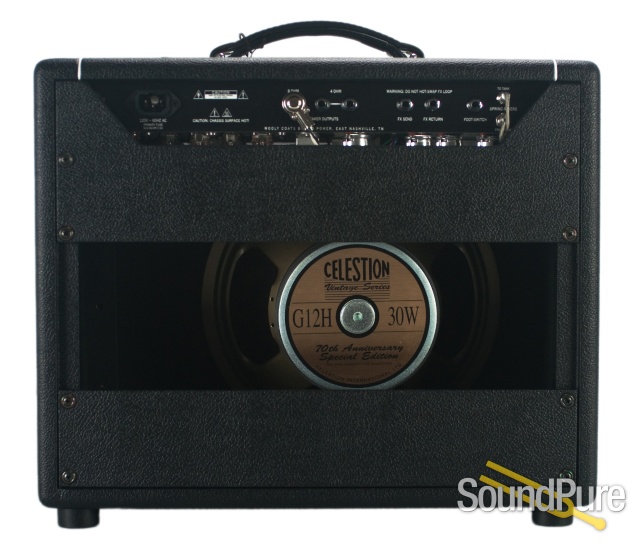

- Speaker Output
-
Two Jacks with an 8 Ohm/4Ohm Selector Switch
- Dimensions
-
19.75 in. x 16 in. x 9.5 in
- Operating Voltage
-
120V is standard. Export 240V and other mains voltages are available
- Standby Switch
-
Standby Switch located on front panel
- Rectifier Tube
-
5AR4
- Certification
-
CE Certified
