Specifications

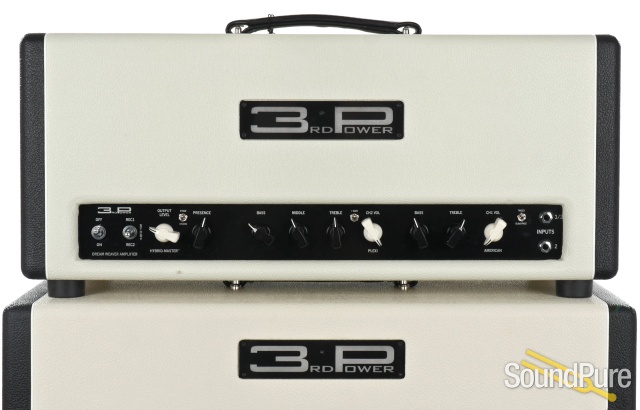

Model Name: Dream Weaver MKII
Power: Class AB, 40 Watts (tube rectified), ~50 Watts (solid state rectified)
Power Tubes: Mullard Reissue EL34 x 2 as standard
Preamp Tubes: V1 -V3: ECC83S, V4: Sovtek 12AX7 LPS
American Channel Controls: Volume, Treble and Bass
Plexi Channel Controls: Volume, Gain Boost Switch, Treble, Middle, Bass
Other Controls: Presence, Stage/Studio Output Mode Switch (Stage Mode = 100% output, Studio Mode = 20% output), HybridMASTER™ Level Control for Fine Tuning Output Level, Insert-style FX Loop
Weight: 29 lbs.
Case Composition: 5/8" Birch
Speaker Outputs: 1 x 16, 2 x 8 and 2 x 4 Ohm Speaker Outputs
Dimensions: 24" x 10.5" x 9.33"
Operating Voltage: 120V is standard. Export 240V and other mains voltages are available
Standby Switch Features: Middle Position: Standby Mode, Up Position: Rectifier 1, Down Position: Rectifier 2
Rectifier Tube Sockets: Two Rectifier Tube Sockets: Socket 1 Loaded with Solid State Rectifier Plug, Socket 2 Loaded with GZ34 Rectifier Tube
Certification: CE Certified

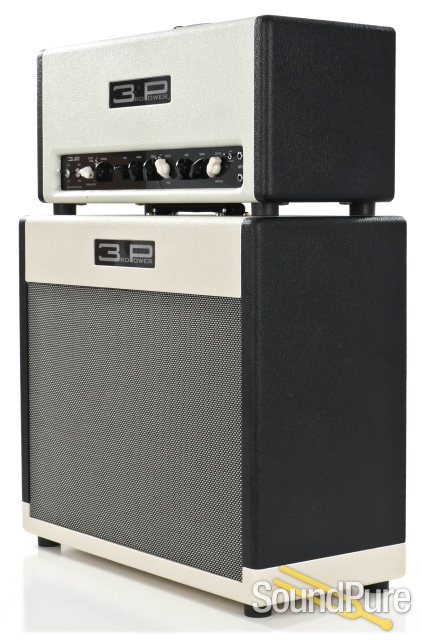

Model Name: DS112
Power Handling: 60w loaded with a Celestion Vintage 30 as standard (other speakers are available)
Weight: 39 lbs loaded (~30 lbs unloaded)
Dimensions: 25” x 20.75 x 11”
Construction: 5/8″ birch enclosure, 1/2″ birch internal chamber, dado joinery throughout
Impedance: 8 ohms
